Maxwell RC10-8 Capstan 12V Windlass – 5/16″ Chain & 5/8″ Rope

87877
Maxwell

$2860.00

(MAP Pricing)
Place in cart to see Sale Price

0 in stock
Qty :
,

Description

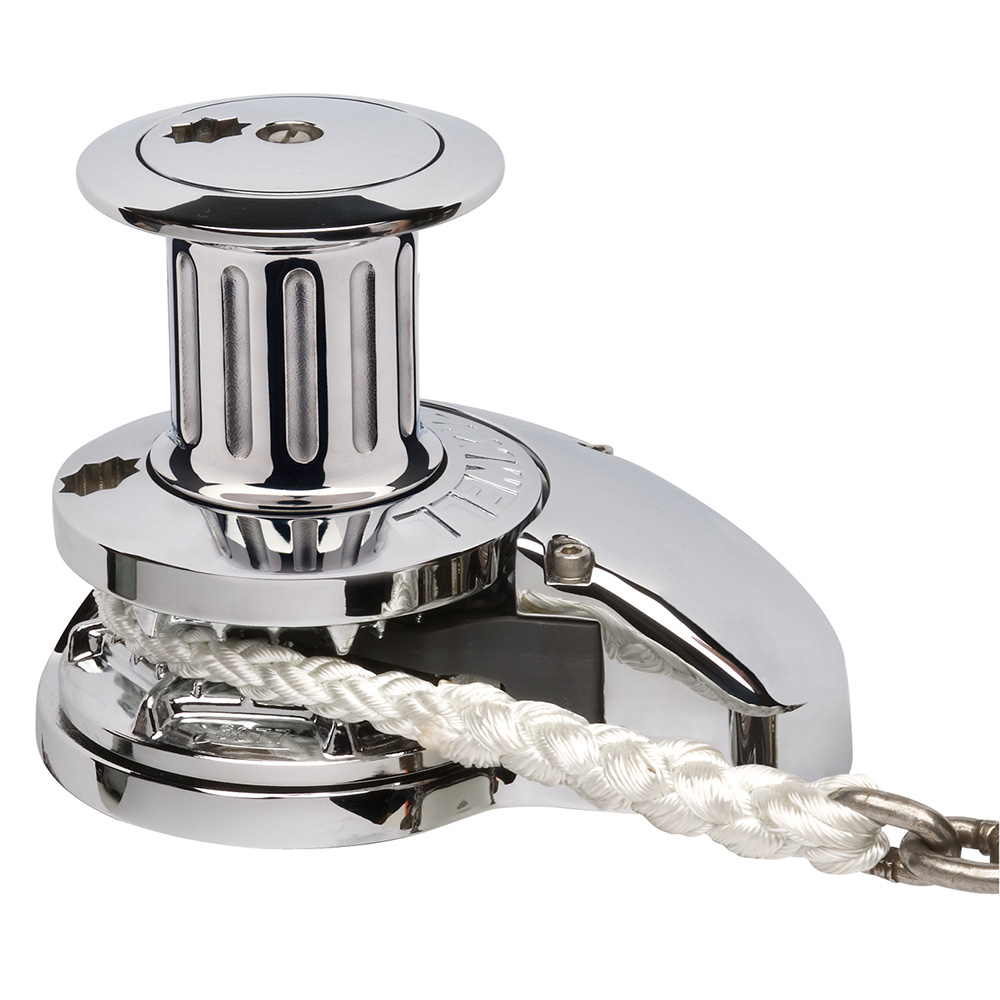

RC10-8 Capstan 12V Windlass – 5/16″ Chain & 5/8″ Rope

The stainless steel (AISI 316) RC10 Series rope/chain windlass is part of Maxwell’s upper mid-range line-up and is suitable for boats ranging from 9m (30ft) to 14m (48ft). The RC10-8 is a second-generation rope/chain windlass and is a favorite choice for cruising yachts, launches, pilothouse vessels, and light commercial operators. The intentionally simple design yields excellent longevity and performance figures and has contributed to a well-earned reputation for reliability.

The patented Wave Design™ rope/chain gypsy (chain wheel) is able to accommodate a wide range of chain pitch differences (both imperial and metric) within the RC10’s specified chain size diameters.

Features:

  • Works just as effectively with all-chain rode
  • The gearbox can be removed by hand and without tools for easy maintenance and inspection
  • Full disassembly capability of the top works utilizing only the handle provided and an Allen key
  • Manual override and ‘Free Fall’, using the emergency crank/clutch handle provided
  • Sealed oil bath and marine-grade hard anodized, alloy gearbox provides maximum output via a precision worm and worm wheel
  • Every Maxwell RC10 automatic rope/chain windlass comes with top works, motor/gearbox and dual-direction solenoid
  • The unique spacer tube design allows for installation through virtually any deck thickness, and the multiple mounting positions and self-aligning gearbox ensure optimal orientation in virtually all installation situations

Specifications:

  • Maximum Pull: 1540 lbs. (700 kg)
  • Static Hold: 3300 lbs. (1500 kg)
  • Chain Size: 5/16 in. (8 mm)
  • Rope Size (Nylon): 9/16 in. – 5/18 in. (14 mm – 16 mm)
  • Chain Speed (Anchor Retrieval): 79 ft/min (24 m/min)
  • Rope Speed (Anchor Retrieval): 65 ft/min (20 m/min)
  • Power Supply (DC): 12 VDC
  • Motor (Watt): 1000 W
  • Net Weight: 42 lbs (19 kg)
  • Hydraulic Pressure: 2000 PSI (138 Bar)
  • Hydraulic Flow: 5.3 USgal/min (20 l/min)
  • Net Weight (Hydraulic): 42 lbs (14 kg)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Vertical/Horizontal = Vertical | Rope Diameter (Inches) = 5/8" | Freefall = Yes | Chain - Diameter (Inches) = 5/16"

Additional information

Weight 50.1 lbs
Dimensions 20 × 17 × 12 in
Model Number RC108CAP12V
UPC 1000000004335
