Maxwell VC 1000 12V Vertical Capstan Windlass

85716
Maxwell

$2464.00 $1601.60

0 in stock
Qty :
,

Description

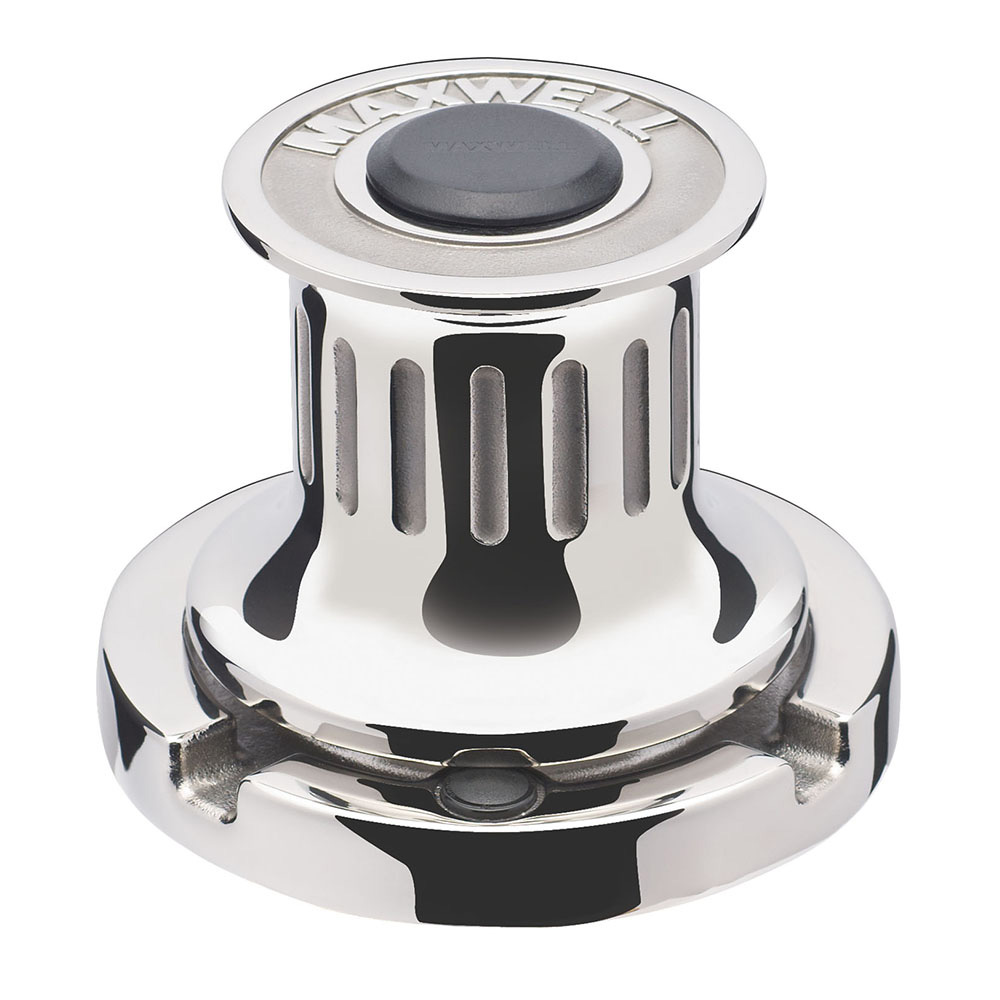

VC 1000 12V Vertical Capstan Windlass

The stainless steel (AISI 316) fluted capstan VC series is designed for simple, low-cost anchor recovery on smaller boats and rope hauling on larger vessels.

Features:

  • The vertical design suits smaller powerboats or sailboats and can be utilized for anchor rodes, as a docking capstan on larger craft, or as auxiliary line hauling from any direction
  • High-quality, hard-wearing stainless steel (AISI 316) above deck components
  • Functional rope hauling from any direction using a fluted, snag-free warping drum for positive control of all ropes
  • Simplified through deck installation by modular design and precise alignment of the gearbox to the top works
  • Alternative gearbox/motor positions accommodate virtually all installation situations
  • Anodized aluminum gearbox and spacer on VC 500 and VC 1000 models
  • Heavy-duty, dual-direction motors, designed for marine operations
  • Easily disassembled for servicing
  • Can be mounted horizontally for use as a pot hauler or Davit winch

Specifications:

  • Maximum Pull: 700 kg (1540 lbs)
  • Static Hold: 1200 kg (2640 lbs)
  • Line Speed (Normal Working): 20m/min (65ft/min)
  • Power Supply (DC): 12V
  • Motor (Watt): 1000 W
  • Net Weight (DC): 18 kg (40 lbs)
  • Hydraulic Pressure: 100 bar (1450 psi)
  • Hydraulic Flow: 20 l/min (5.3 US gal/min)
  • Net Weight (Hydraulic): 11 kg (24 lbs)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Vertical/Horizontal = NONE | Rope Diameter (Inches) = NONE | Freefall = NONE | Chain - Diameter (Inches) = NONE

Additional information

Model Number VC100012V
