Description
NAC-1 Outboard Hydraulic Autopilot Pack
Features:
- Easy to Install, available for both Hydraulic and Cable steer systems
- Dash-mount button for one-touch Auto/Standby activation
- Steer to Heading, Course, or Route
- Automatic Turn Patters
- NAC-1 Plug & Socket connectors – no screw terminals or wire stripping necessary
- High efficiency, super-quiet 0.8L hydraulic gear pump (Pump-1 MKII)
- Add a second Helm station to a boat using the MFD Power steer commands – no need for additional hydraulics + steering wheel

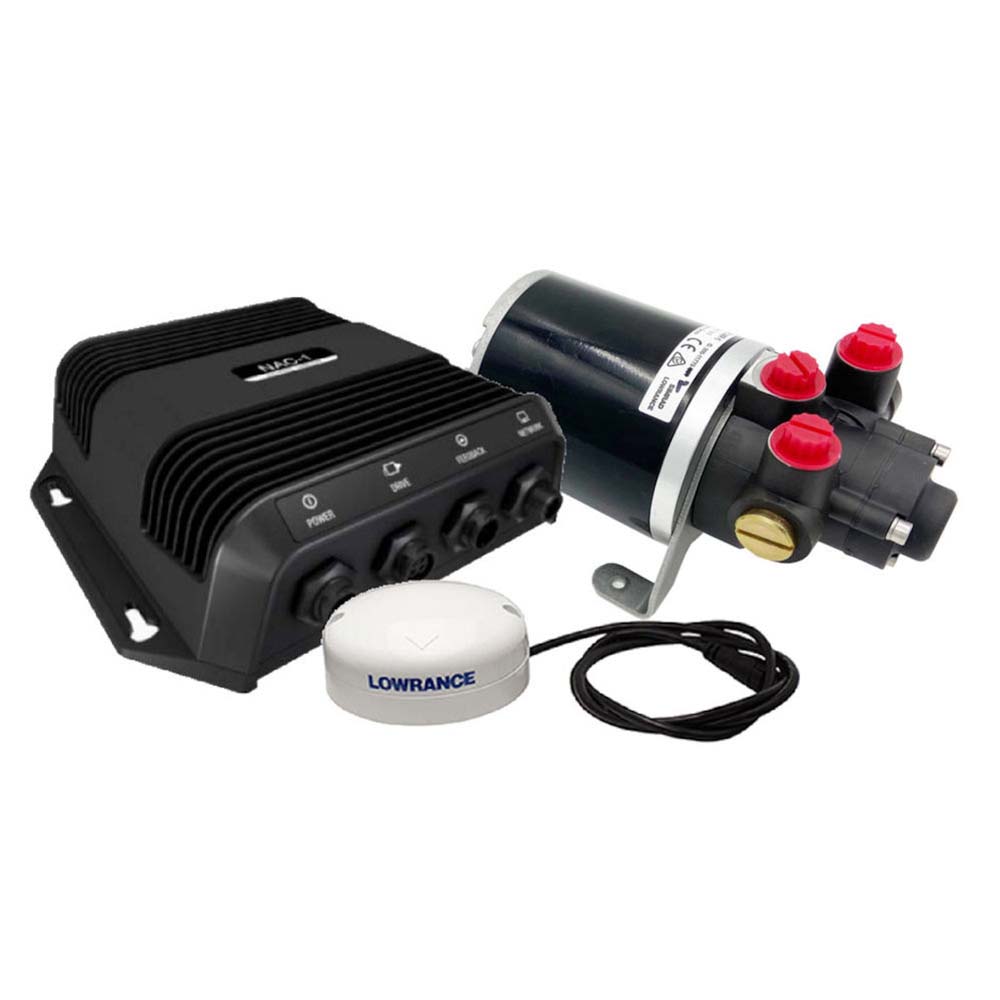

In the Box:
- Point-1 AP Heading and GPS Sensor 000-12930-002
- NAC-1 Autopilot Computer 000-11769-001
- PUMP-1 MKII – 0.8L reversible hydraulic pump 000-11770-002
- Hydraulic fitting kit 000-15942-001
- Standby-Auto button 000-13703-001
Micro-C Network Components:
- N2KEXT-2RD,CABLE,MICRO-C, 0,6M – 000-0119-88
- N2KEXT-6RD,CABLE,MICRO-C, 1,8M – 000-0127-53
- N2KEXT-15RD,CABLE,MICRO-C, 4,5M – 000-0119-86
- TR-120-KIT – 000-0127-52
- MICRO-C POWER CABLE ONLY – NO T CONN – 000-12202-001
- N2K,MICRO-C,4-WAY BLOCK (22AWG) – 000-12612-001
Steering Type = NONE | Type = NONE
