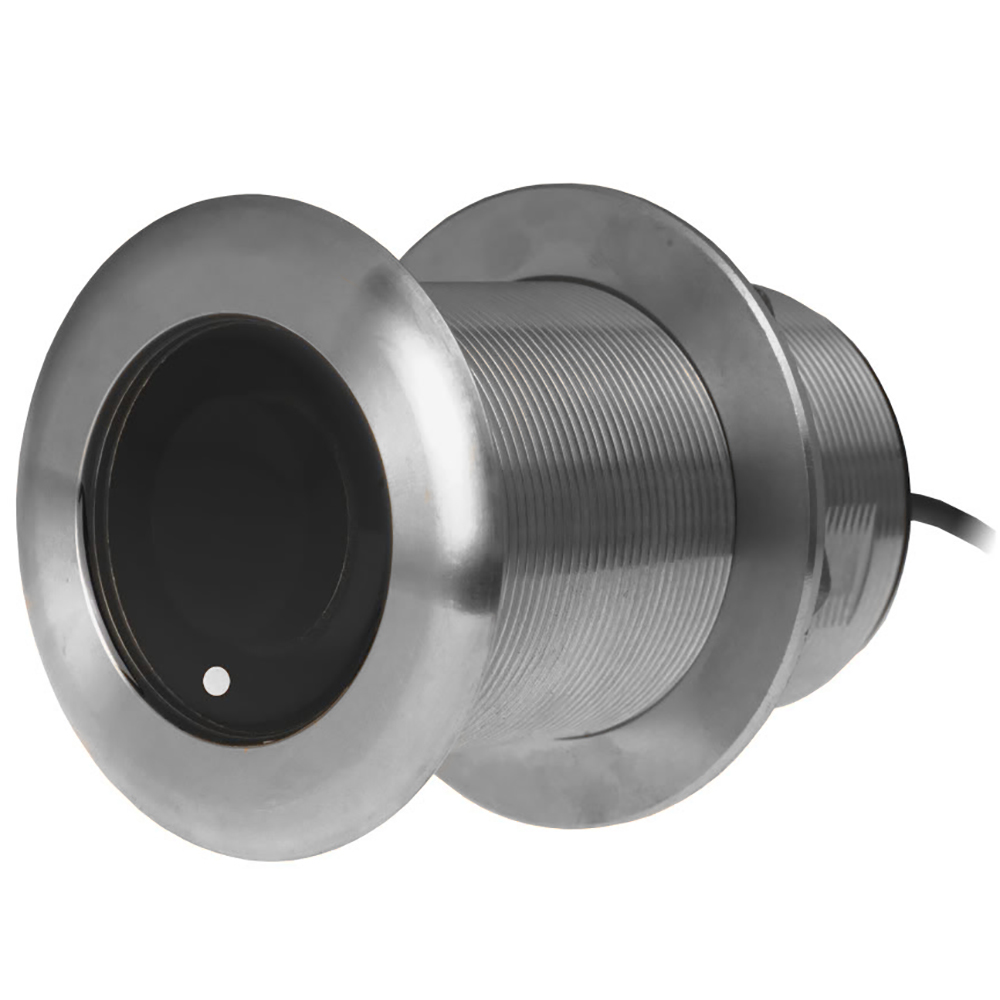

xSonic SS75H Depth/Temperature Transducer 12° – 9-Pin – 600W – 10M Cable
The SS75H is a Stainless Steel, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.
Features:
- CHIRP – CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures
- Depth/Temperature – Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings
- Easy To Install
- High Frequency – CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water
- Highly Accurate – Provides extremely accurate data.
- 12° Tilt – The 12° tilt is ideal for boats with a 8° to 15° hull deadrise.
- Low Profile – The low profile housing minimizes drag with just 5mm extending outside of the hull.
- Plug & Play Connection – Easily connect to NSSevo3, Lowrance
Specifications:
- Frequency: High CHIRP (130-210kHz)
- Power Rating: 600W
- Speed Sensor: No
- Temperature Sensor: Yes
- Mounting Style: Bronze Thru-Hull
- Elements: 1
- Beamwidth @ -3dB: 15° to 9°
Temperature = Yes | Speed Included = No | Mounting Style = Thru-Hull | Imagining = NONE | Chirp = High | Cable Length (Feet) = 10m | Pins = 9
