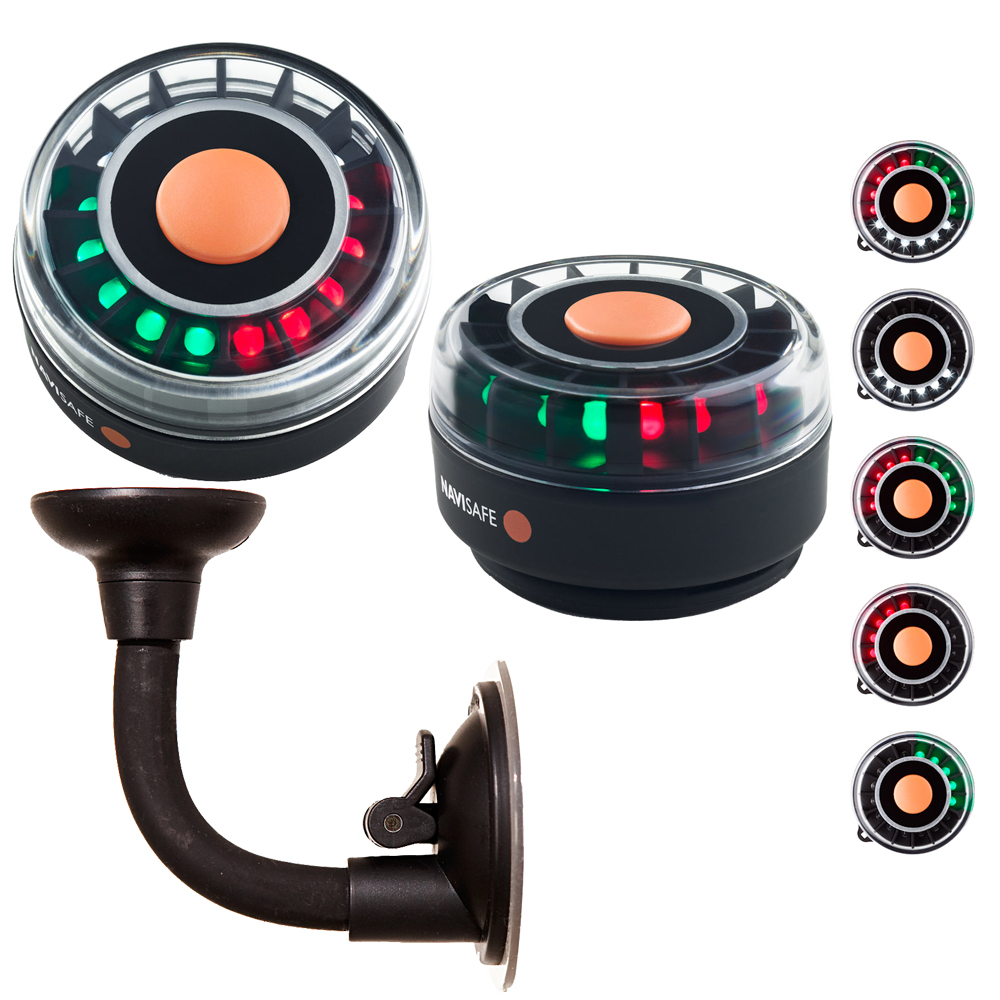

Portable Navilight 2NM – TriColor w/Bendable Suction Cup Mount

The Navilight Tricolor 2NM – US Coast Guard approved for 2 nautical miles includes a green light to be shown at the starboard side and a red light to be shown at the port side. In addition, it includes the white Sternlight, to be used at the stern. It is battery operated, uses super bright LED light, is water proof, floats and attaches almost anywhere through its double magnetic mounting system.

The green as well as the red lights show an unbroken light over an arc of the horizon of 112,5°. The white Sternlight shows an unbroken light over an arc of the horizon of 135°. All lights work independently, in a combination of all three or red/green together.

Examples of usage:

*Based on the Convention on the International Regulations for Preventing Collisions at Sea, commonly called 72 COLREGs

On a power-driven vessel of 12M or more in length but less than 50M in length:

• As green or red sidelight
• As sternlight

On a power-driven vessel of less than 12M in length:

• as green or red sidelight
• as combined green / red
• as sternlight

On a sailing vessel underway:

• as green or red sidelight
• as sternlight

On a sailing vessel of less than 20 meters in lengths as backup light:

• Tricolor lantern at or near the top of the mast

Specifications:

• USCG Approval, 2 Nautical Miles
• 5 Modes: Tricolor Masthead light (135° white, 112,5° red, 112,5° green), BiColor side light, red side light, green side light, white Sternlight
• Floatable, waterproof (20M) and air-tight
• Includes magnet bracket, mounting screw, 3 lanyards for multiple fixing and securing
• Powered by three AAA batteries (not included)
• Size: H = 35mm, Diameter = 68mm
• Weight (net): 118g

Modes / approximate burn time:

• 16 green / red / white LED, 360° TriColor lantern / 12hrs
• 10 green / red LED, 225° Bi-Color sidelight / 20hrs
• 5 green or 5 red LED, 112,5° sidelight / 38hrs
• 6 white LED, 135° Sternlight / 32hrs

Bendable Suction Mount

Designed to allow secure mounting of the Navi lights with magnetic base on any kind of smooth and flat surfaces. The quick release suction cup releases with just one push of the lever so it can be stored quickly or mounted to another place or boat.

Examples of Usage:

Navigation lights should be mounted so that they are not covered by the vessel’s superstructure or may interfere with deck lights. The bendable suction mount can be easily used to mount the magnetic Navi lights at:

• The outboard engine
• The steering console, the windshield or any place on the hull where the lights are seen best
• On canoes and kayaks with a smooth and flat surface

Specifications:

• Secure suction cup base
• Quick release suction cap
• Bendable shaft moves through 180°
• Self adhering plastic mounting plate Diameter = 75mm for secure mounting on rough surfaces
• Size: L = 68mm, H = 157mm
• Weight (net): 80g

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Lens Color = White/Red/Green | Visible Range (Miles) = 2nm | Housing = Black | Voltage - Input Range (Volts) = 3 AAA Batteries (Not Included) | LED = Yes
