Description

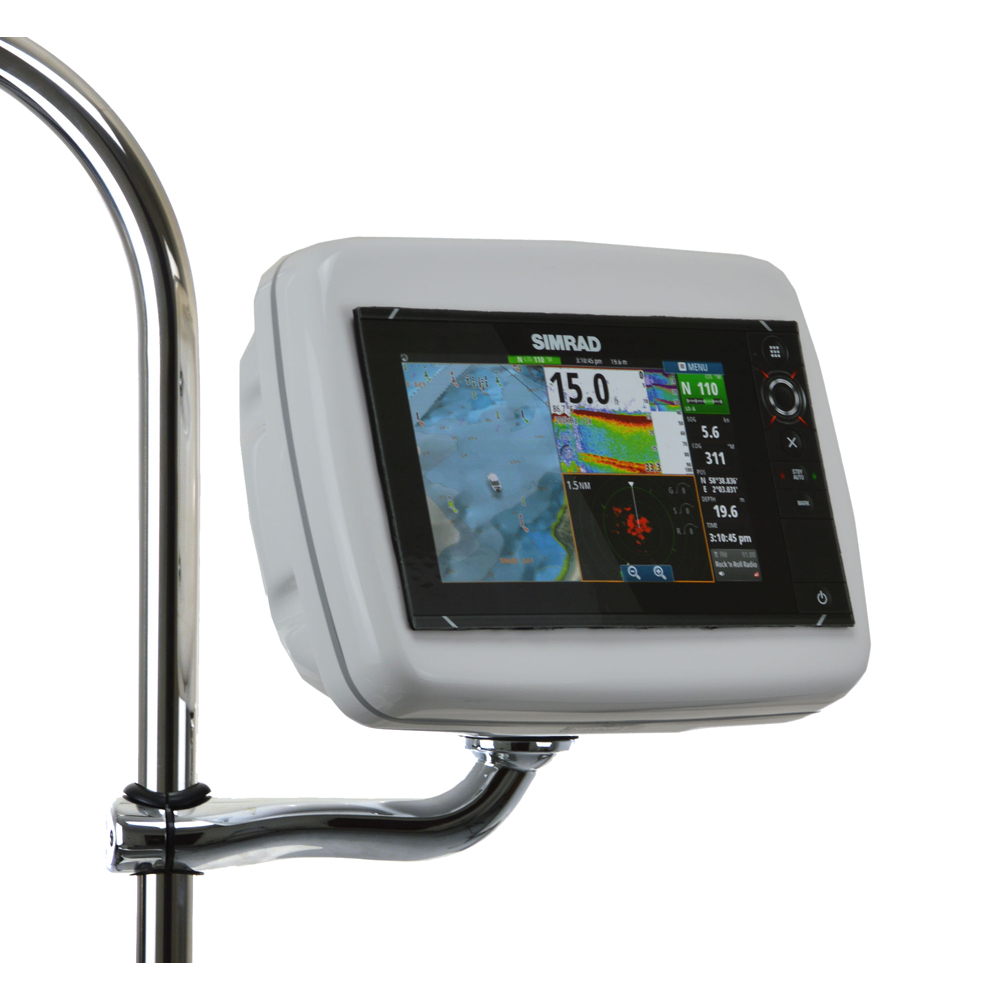

RMX4808 RailMount Pre-Cut for Simrad NSS8/B&G Zeus T8

RailMount NavPods are best used for mounting of an autopilot control, sailing instrument, or small chartplotter onto an existing pedestal guard. Fits onto any 1″ or 1.25″ diameter tube. A Chromed Stainless Steel arm is used to mount a NavPod. The NavPod can rotate 180 degrees for easy viewing while sitting under the dodger on a rainy day. All wire run from the NavPod, down the center of the stainless steel arm, and into the pedestal guard. This application provides a clean and sturdy installation for electronics, without replacement of the pedestal guard.

All RailMount NavPods Include:

• Acrylic capped ABS plastic
• Chromed stainless steel tamper-proof fasteners
• Double Seal for watertight integrity
• Models are available pre-cut for popular electronics.
• Chromed stainless steel arm with swivel mount
• Two sets of adaptors included for 1″ or 1.25″ diameter tubing

The Hi-Gloss Material

• NavPods are manufactured with a custom co-extruded acrylic capped
  ABS material. We use the absolute best UV resistant material that provides a
  very high gloss white finish that matches gel-coated fiberglass. The Gen3
  enhancements now include a thicker gauge material that improves strength and
  1provides for better structural rigidity.

The Waterproof Seal

• All NavPods are manufactured with a double gasket system providing
  an excellent watertight seal between the front and back of the NavPod for
  protection of your Marine Electronics. NavPods are made to withstand the
  harshest of wet offshore boating conditions. Gen3 enhancements include a
  thicker external silicone gasket with improved flush fit. The internal EPDM
  gasket is now 50% thicker and is not subject to “compression set” like many
  rubber compounds. This is important when you need to open the NavPod in the
  future to service your electronics.

The Nickel Chrome Plated Screws

• We use all stainless steel mounting hardware that is supplied with
  each NavPod. Large round head tamperproof screws have deeper sockets for the
  NavPod wrench for better holding ability when tightening than the previous
  screws. For Gen3 we provide nickel chrome-plated stainless steel tamperproof
  screws for security combined with a little bling!

The Manufacturing Process

• Heavy-gauge thermoforming is considered an art since many processes
  come into play. It all starts with the design and development of the
  tooling. We are fortunate to have experienced in-house design engineers who
  utilize CAD programs like Solidworks, Catia and AutoCad. Surfcam is used to
  interface with our CNC machining centers to produce quality tools with
  precision tolerances. We have re-designed and re-tooled all of the popular
  NavPods. We have reviewed all of the former products and selected the best
  design elements of each and incorporated them in every new Gen3
  product.

Our Commitment to Quality

• We are committed to producing the best possible waterproof housing
  for Marine Electronics. Now with two decades of experience under our belt,
  we are confident you will have years of trouble free service and a long
  lasting high gloss finish. We will stand behind our commitment by now
  offering a 10-year warranty on all new Gen3 NavPods.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Cut/Uncut = Cut | Mounting Style = Rail | Usable Face = NONE
