NavPod SystemPod Pre-Cut f/Garmin ECHOMAP Plus/UHD 92sv/93sv/94sv/95sv – Plus One Additional Instrument f/9.5″ Wide Guard

98964
Navpod

$459.99 $351.26

0 in stock
Qty :
,

Description

SystemPod Pre-Cut for Garmin ECHOMAP Plus/UHD 92sv/93sv/94sv/95sv – Plus One Additional Instrument for 9.5″ Wide Guard

SystemPods are for mounting a radar, chartplotter, and instruments together at the helm. Navigation at your fingertips… “Where you need it, when you need it.” SystemPods are the smart solution for mounting your radar, chartplotter, and instruments together at the helm, where you can easily operate and clearly see the fine details of the screen.

Features:

  • This SystemPod for Power can be dash mounted using the SK135 Stanchion Kit, or overhead mounted using the SK129 Stanchion Kit

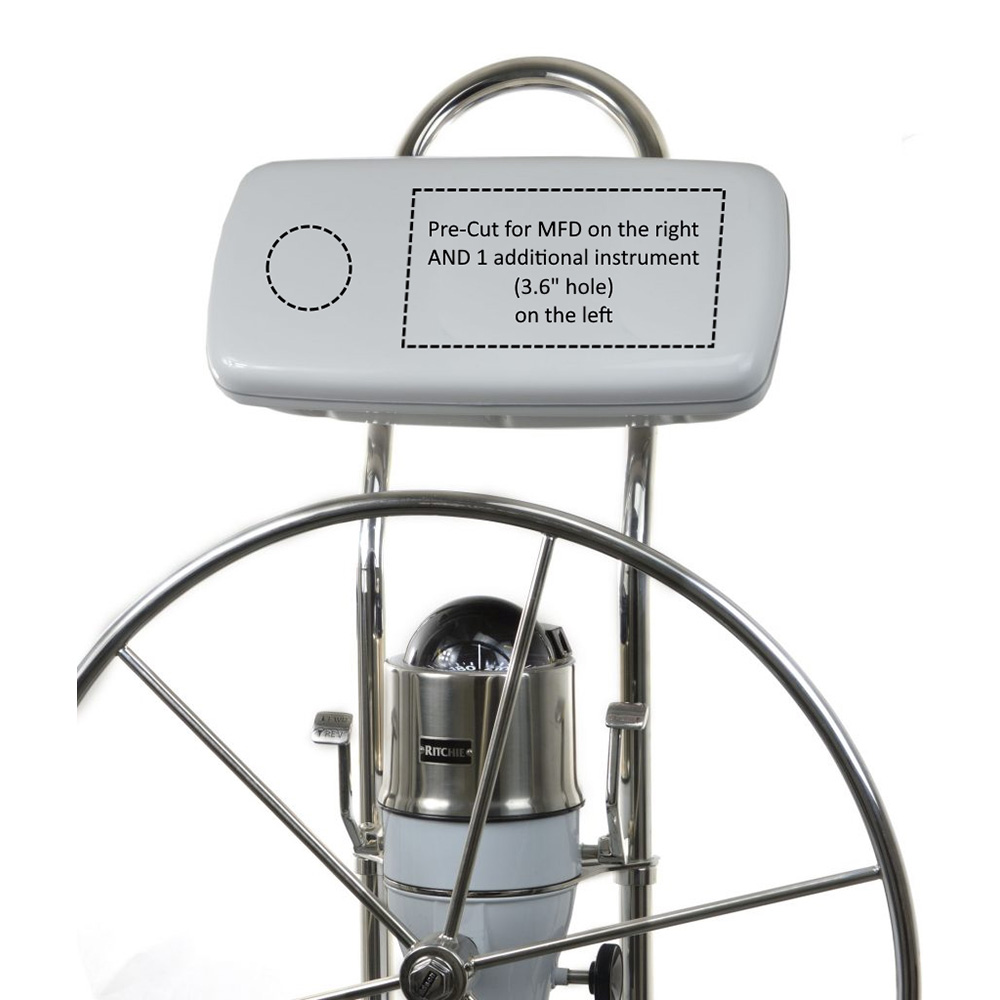

  • Pre-cut for MFD on the right and one additional instrument (3.6 in. hole) on the left

Specifications:

  • Overall Height (inch): 9.5″
  • Overall Width (inch): 20.25″
  • Overall Depth (inch): 6″
  • Usable Face Height (inch): 7.375″
  • Usable Face Width (inch): 17.5″
  • Usable Face Depth (inch): 5″
  • Max Cutout Height (inch): 7″
  • Max Cutout Width (inch): 17″

Structural Rigidity

The Gen3 enhancements now include a thicker gauge of acrylic-capped ABS material that improves strength and provides better structural rigidity. This thicker material allows for a larger waterproof seal. The better the structural rigidity, the less flexing when tightening, and the more uniform pressure on the seal. The excellent UV stability of the acrylic is combined with the durability of the ABS. The acrylic cap protects the ABS from UV and its potentially damaging effects on plastic.

Waterproof Seal

All SystemPods are manufactured with a double gasket system, providing an excellent watertight seal. This seal provides the best protection for your marine electronics. SystemPods are made to withstand the harshest, wet offshore boating conditions. Gen3 enhancements include a thicker external silicone gasket with an improved flush fit. The internal Poron Microcell Polyurethane gasket is now 50% thicker and is not subject to a “compression set” like many rubber compounds. This is important when you need to open the SystemPod in the future in order to service your electronics. The gasket will continue to do its job.

Nickel Chrome Plated Stainless Steel

NavPod uses all 316 stainless steel hardware that is supplied with each NavPod. Large round head tamperproof screws have deeper sockets for the NavPod wrench for better holding ability when tightening than screws used on the Traditional Series NavPod. For Gen3 NavPods, they provide nickel-chrome-plated stainless steel tamperproof screws for security combined with a little style!

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Type = NONE

Additional information

Model Number GP1040-43
