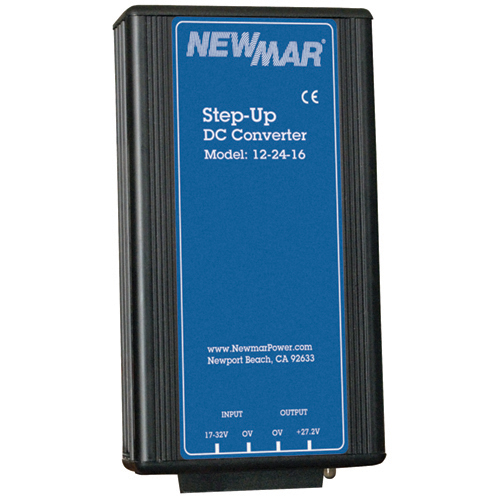

Newmar 12-24-16 Step Up DC-DC Converter 16 Amp Conitnuos

NEW122416
Newmar

$853.00 $641.54

2 in stock
Qty :

Description

These "UP" converters produce 24 volts from 12 volt systems and are ideal for managing dual voltage applications on marine vessels without having to install a 24 volt battery and dedicated charging system. Choose from two types depending on your application:

In the Standard, Non-Isolated Series the 12V input and 24V output share a common negative ground and are ideal when installing certain electronics that operate better on 24 volts when a robust 12 volt system exists. Models available in outputs of 7, 16 and 25 amps.

Standard, Non-Isolated Series

  • Intended for use on negative ground systems
  • 10 -15 VDC input range
  • Available in 7, 16 and 25 amp outputs
  • Current limited, voltage spike suppression, automatic thermal shutdown and recovery
Model Input
voltage
Output
voltage
Output Amps
Intermittent
Output Amps
Continuous
Case
Size
Weight
Lbs Kg
Standard – Non-Isolated
12-24-7 10-15 27.2 7 7 C-1 1.4 .64
12-24-16 10-15 27.2 16 16 C-2 3.55 1.61
12-24-25 10-15 27.2 25 25 C-3 4.1 1.86


Case Size

Case Inches Centimeters
H W D H W D
C-1 3.5 3.5 1.75 8.9 8.9 4.5
C-2 4.25 5.9 14.0 10.8 15.0 35.6
C-3 6.0 6.8 16.5 15.2 17.3 41.9

Specifications

Input: 10 – 15V DC

Output: 27.2 VDC +/-5% at extreme temperature load, input, tolerance, etc.

Ripple: <100mV P-P

Regulation: +/- 5% Line/Load

Duty Cycle:
Intermittent: 2 minutes, 20% duty
Continuous: 24 hours, 100% duty

Operating Temp: -25˚ – 30˚ C, derate linearly from 30 to 0% @ 80˚ C

Mechanical

  • Efficiency: 93% – Typical.
  • Anodized aluminum, glass filled polycarbonate, dust water and impact resistance to IP533
  • Front panel terminal block
  • Output indicator: Green LED

Additional information

Weight 5.00 lbs
Model Number 12-24-16
