Newmar 32-12-50 DC-DC Converter 20-50VDC To 13.6 Vdc @ 50A

NEW321250
Newmar

$1370.00 $1030.38

3 in stock
Qty :

Description

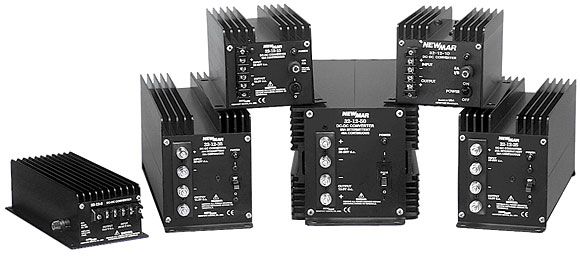

Newmar 32-12-50 50 Amp DC-DC Converter

Model: 32-12-50

  • Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within rating.
  • Heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and long life of components.
  • Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum case with heavy duty shock mounts assure survival in hostile environments.
  • Numerous converter and load protection circuits:
  • Current limiting
  • Automatic thermal shutdown
  • Short circuit proof
  • Reverse polarity
  • Overvoltage protection
  • Carries CE mark

Convert 20-50 VDC input to 12 negative ground output for powering communication/navigation equipment, on negative ground systems. (See Isolated Series, for positive ground applications.) Ideal for powering voice, data and navigation electronics in marine applications.

Specifications

Input voltage 20-50
Output voltage 13.6
Output Amps Intermittent 50
Output Amps Continuous 40
Dimensions H x W x D 6.2 x 6.8 x 18.1

Additional information

Weight 40.00 lbs
Model Number 32-12-50
