Description

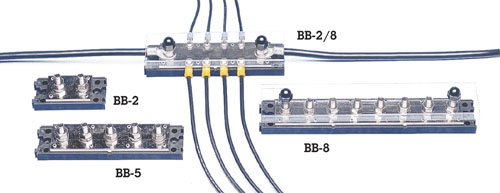

• Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16″ studs on 1″ centers in 1/4″ thick copper bar for common connection/distribution of large wire gauges and accommodate 5/16″ ring terminals.
• One combination model features two 5/16″ studs and eight #8 screws, accommodating multiple size wire terminals.
• All bus material is nickel-plated copper.
• A clear insulating protective cover is provided to prevent short circuits and provide visibility of lugs.
• The mounting bases are keyed for interlocking and may be mated with the terminal strips (described above). Conductive parts are captured and recessed away from the mounting surface. Use #8 or #10 screws for mounting.
