Newmar SS Switch – 15 AC Selector Switch

102425

$467.00 $337.96

3 in stock
Qty :

Description

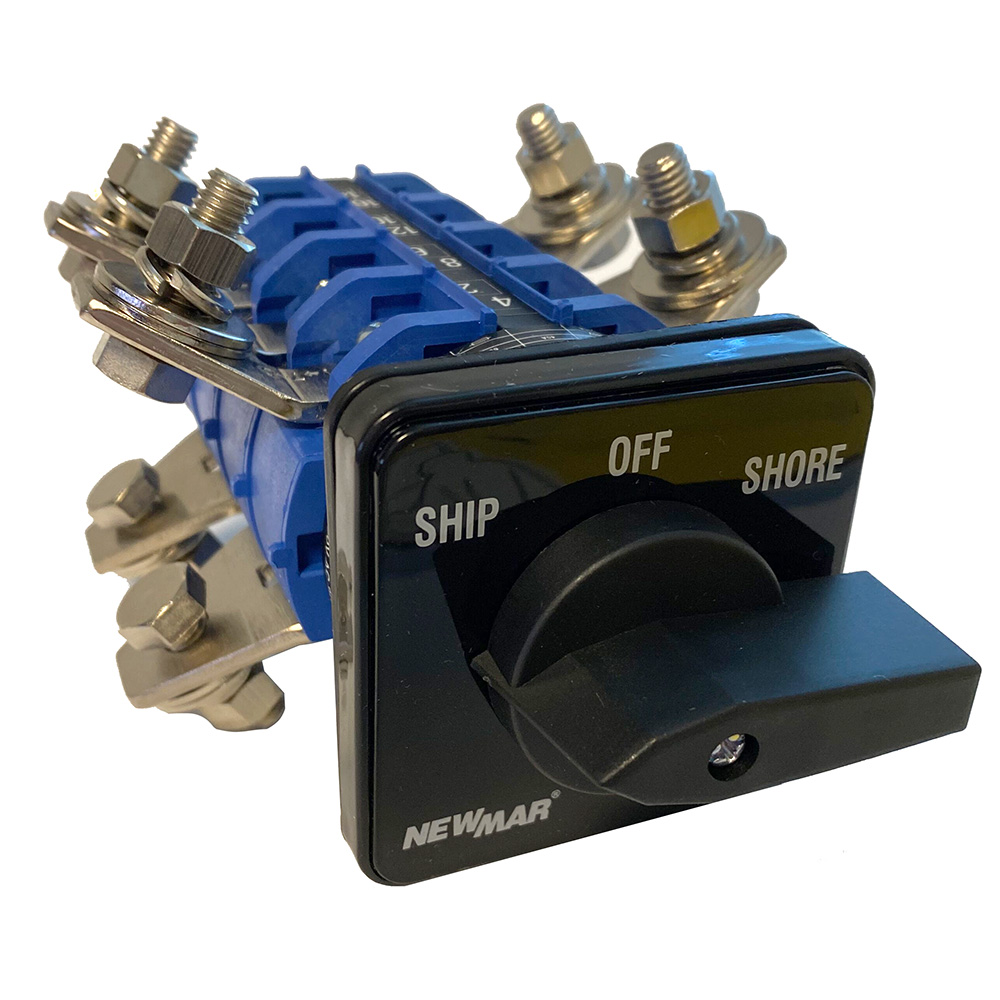

SS Switch – 15 AC Selector Switch

This AC source selector switch is an essential item for any vessel with an onboard AC generator and/or inverter. By isolating power source inputs, the switch eliminates the safety hazard and/or damage that can occur if two AC sources are applied to the same circuit simultaneously.

The switch is fitted with a compact escutcheon plate with engraved switch position nomenclature.

The switches carry cUL approval, are CE-marked, and feature heavy-duty contacts and a positive step cam mechanism for low-resistance contact closure.

Features:

  • Maybe rear-mounted in a panel with a thickness of up to 1/4”
  • May be configured as a 63 amp, 4 pole switch

Specifications:

  • Amperage @ 115/230V: 126
  • Number of Poles: 2
  • Switch Positions: 2 + “OFF”
  • Standard Plate Markings: SHIP-OFF-SHORE
  • Depth Dimensions: 4 in.

Action = NONE | Color = NONE | Throw/Pole = NONE

Additional information

Weight 2.3 lbs
Dimensions 11 × 7 × 6 in
Model Number SS SWITCH15
