Description

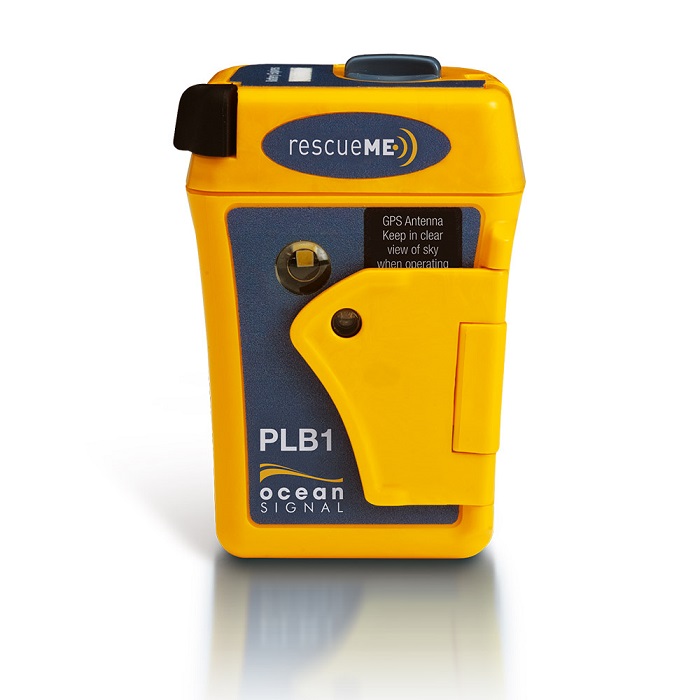

Ocean Signal rescueME PLB1
Model: 730S-01261
- 30% smaller (typ) by volume
- Easily fits in lifejacket
- Retractable Antenna
- 7 Year Battery Life
- 7 year warranty
- 24+ hour operational life
- High brightness strobe light >1candela
- 66 channel GPS receiver
- Unique mounting clip
- Operates on the global Cospas Sarsat rescue system
- Free to use, no subscription charges
- Supplied with free flotation pouch
- Waterproof to 15m
Wherever you are, at sea, on land, the rescueME PLB1 provides the reassurance that global emergency services can be alerted by the press of a button.
The rescueMe PLB1 can be operated with a single hand in even the most challenging situations. A simple spring loaded flap covers the activation button preventing inadvertent use.
rescueME PLB1 works with the only officially recognised worldwide dedicated search and rescue satellite network (operated by Cospas Sarsat). As this is funded by governments there are NO CHARGES to use this service.
When activated the rescueME PLB1 transmits your position and your ID to a Rescue Coordination Center via satellite link. Rescue services nearest to your are promptly notified of your emergency and regularly advised of your current location to assist prompt rescue.
The rescueME PLB1 is provided with a flotation pouch to fit the PLB into to enable it to float. Please note that the PLB will not float in an operating position in the pouch. Please ensure the PLB is firmly attached to the pouch with the provided lanyard, using suitable self locking knots.
Specifications
406MHz Satellite Transmitter | |
Frequency | 406.040MHz |
Tolerance | +/- 1kHz |
Output power | 5watts (nominal) |
Stability | 2ppb/100ms |
Modulation | Phase +/- 1.1radians (peak) |
Encoding | Bi-phase L |
Data rate | 400 bps |
Duration | 520ms |
121.5MHz Homing Beacon | |
Frequency | 121.5MHz |
Stability | +/- 50ppm |
Output Power | 25-100mW PERP |
Modulation | Swept Tone AM |
Modulation Depth | 85-100% |
Sweep Range | 400Hz — 1300Hz |
Low Duty Cycle Strobe Light | |
Light Type | High intensity LED |
Output Power | ~1candela |
GPS Receiver | |
Sensitivity Cold Start | -148dBm |
Sensitivity Re-acquisition | -163dBm |
Satellites channels tracked | 60 |
GPS Antenna | Microstrip patch |
Battery | |
Type | Lithium Primary |
Chemistry | Manganese Dioxide (LiMnO2) |
Operational Life | >24hours @ -20°C |
