Description

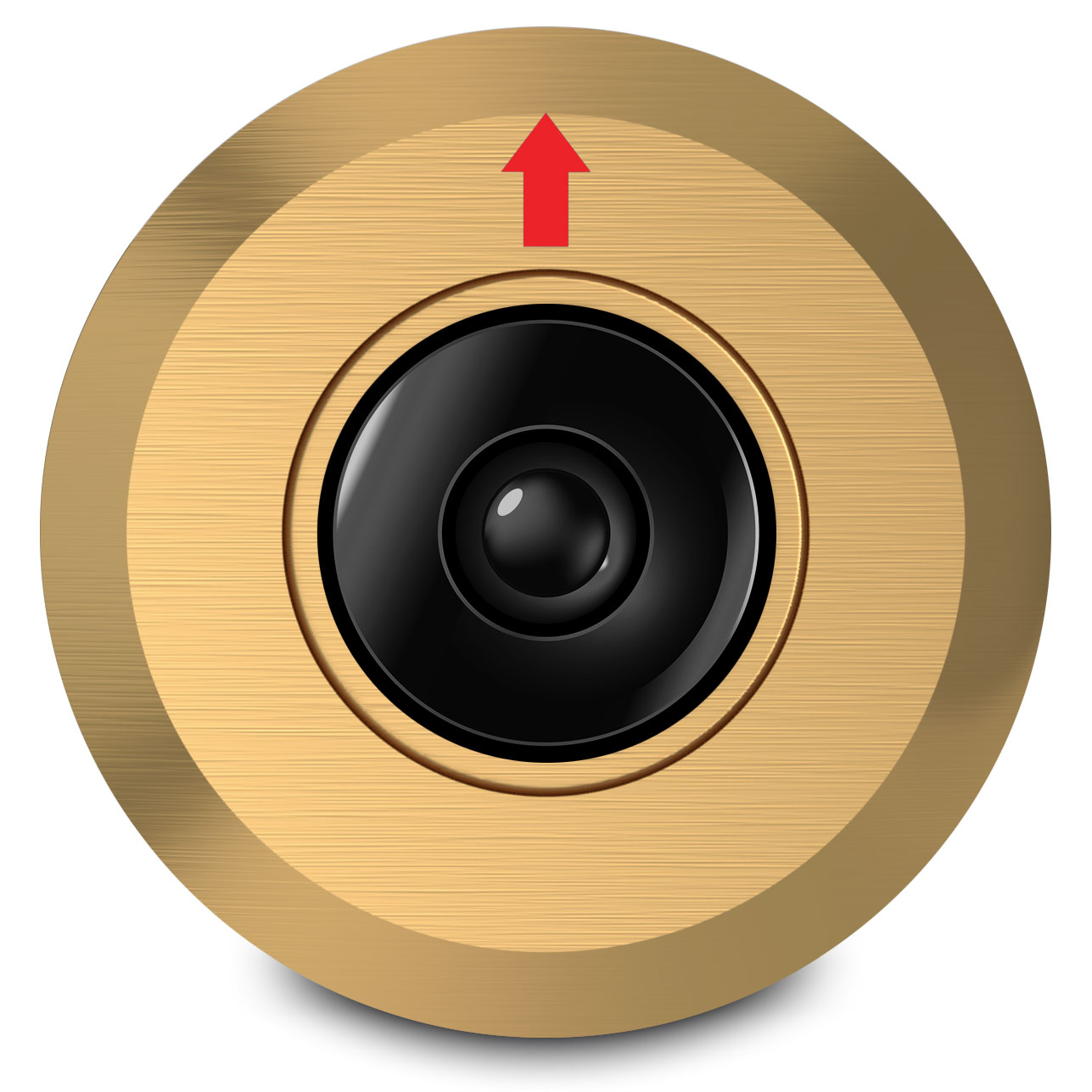

OceanLED EYES HD Gen2 Underwater Camera
Model: 011810
- Full 1080p HD
- 2.1 Megapixel
- HD-SDI Output
- Tritonium™ Optical Lens
Never miss the moment the fish strikes or when you’re lucky enough to have a pod of dolphins swimming with you. Cockpit mounting means you get a different view of the event and can provide evidence of your winning catch.
The new EYES HD Ocean Camera can be mounted anywhere allowing you to capture the magic of your own underwater aquarium beneath your boat in full 1080p High Definition video.
Can be added to a CCTV system to increase security.
Suitable for Fibreglass, GRP and wooden hulls, and also suitable for aluminium/steel hulls using the Delrin Isolation Sleeve accessory. Tritonium™ optical lens is scratch and sea growth resistant.
Specifications
| Minimum Illumination | 0.1 LUX |
| Minimum-Maximum operating voltage DC | 9-14V DC |
| Current / Amp draw (DC) | 12V DC 110mA MAX |
| Effective Pixels | 1984 (H) x 1105 (v) |
| H. Resolution | 1080 TV Lines |
| Video Output | HD-SDI / 1.0 Vp-p Composite ( 75Ω ) |
| S/N Ratio | More than 50dB |
| Electronic Iris (Auto) | 1/50, 1/60 – 1/100,000 sec |
| Controllable Max Gain | 23dB |
| Lens | 3.7mm |
| Operating Temperature | 14°F~112°F (-10°C~+50°C) |
| Overall Length | 135mm (5 5/16") |
| Diameter of Bezel | 58mm (2 9/32") |
| Total weight | 65g (2.3oz) |
| Extension cable length (standard) | 10m (30’) |
| Hole cut-out for body | 35mm (1 3/8") |
| Material | Aluminium Bronze AB2 |
| Lens | Tritonium™ Optical Lens |
| Maximum hull thickness | 104mm (4") |
