Description

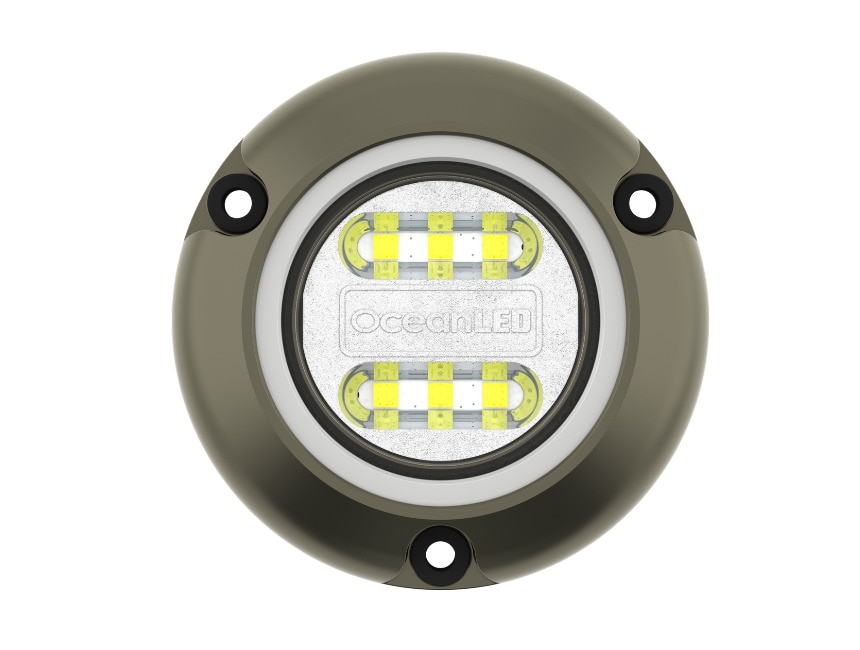

OceanLED SPORT Mini Ultra White Underwater Light – Twin Pack
Model: SM1009W-TP
- Up to 1,500 Fixture Lumens
- Advanced Underwater Optics
- Single Wire Installation
- Surface Mount, Single 1/2″ (12.5mm) Cable-Entry Hole
- IP69K Certified
- Tritonium Coating Against Underwater Growth
- 5-Year Warranty
The SPORT Mini brings lighting technology from OceanLED’s superyacht range to small and medium sized boats, suited to sport fishing boats, day boats, leisure craft, pontoon boats, wake boats and houseboats.
Producing up to 1,500 fixture lumens from a 75mm footprint, the SPORT Mini uses OceanLED’s advanced underwater optics to focus the light into a blade effect that cuts through the water while drawing less power than competing lights.
The housing is marine-grade hard-anodised aluminium with toughened glass and OceanLED’s latest sealing technology, certified to IP69K. A Tritonium coating protects the light from underwater growth, so it suits boats kept in the water for extended periods.
Installation uses a compact surface-mount design that needs only a single half-inch (12.5mm) hole for the cable, with a single-wire connection.
Specifications
| General | |
| Fixture Lumens | Up to 1,500 |
| LED Color | Ultra White |
| Number of LEDs | 6 |
| IP Rating | IP69K Certified |
| Min-Max Operating Voltage DC | 10-30V DC |
| Current / Amp Draw (DC) | 12V DC 0.9A / 24V DC 0.5A |
| Physical | |
| Total Weight | 150g |
| Cable Length | 0.6m (23.6″) |
| Hole Cut-Out for Cable Entry | 0.5″ (12.5mm) |
| Material | Hard-Anodised PTFE Aluminum |
| Mounting Recommendations | |
| Boat Size | Up to 50ft (15m) |
| Transom / Hull Spacing | 2-4ft (0.5-1.2m) |
| Transom Quantity | 2 – 6 |
| Installation Depth (To Top of Fixture) | 8-10″ (20-25cm) |
