Description

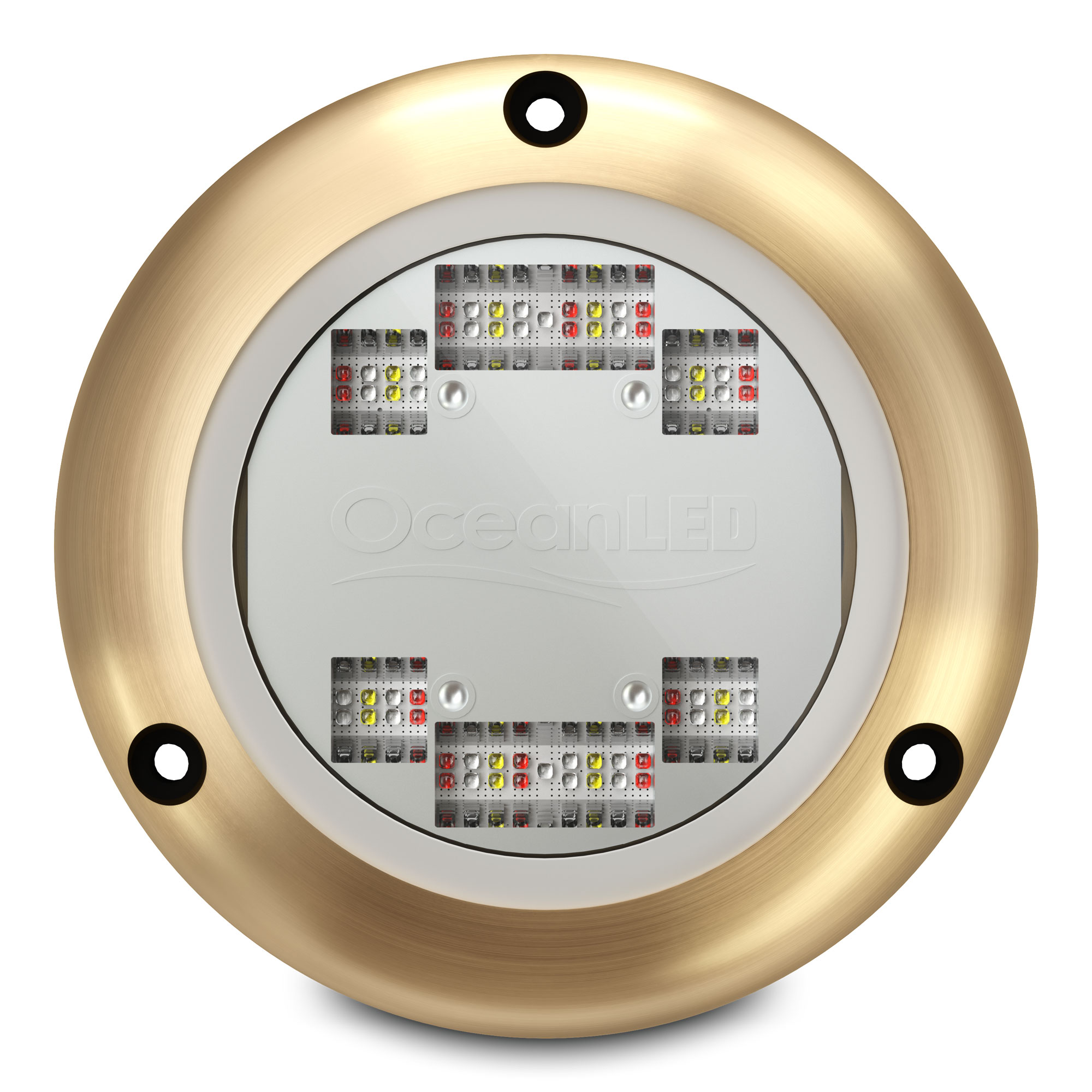

OceanLED S3166S RGBW Sport Series Underwater Light
Model: 012110C
- 8,448 Lumens/ 3500 Ficture Lumens
- Full RGBW Multi-color
- 90°/20° Beam Angle
- Comact and simple design
- Simple to install
- Fish-strobe Mode
- Active thermal control
With up to 3,500 fixture lumens, it’s the brightest in its class and allows you to choose any colour you wish.
Advanced optics, designed exclusively by OceanLED, offer a truly striking 90° surface beam angle with a focused 20° side beam angle providing greater water penetration and a significantly larger area illuminated without any loss.
Specifications
| Lumens | 8448 |
| Fixture lumens | 3500 |
| Typical LED life expectancy | 40,000+ hours |
| Minimum-Maximum operating voltage DC | 9-32vDC |
| Current / Amp draw (DC) (Amperage draw for Colours models vary by colour selected, this is the maximum) | 12V DC 5.5A, 24V DC 2.4A |
| Driver type | Internal, Reverse Polarity Protected |
| Extension cable length (standard) | 9.84’ (3m) |
| Hole cut-out for cable entry | 0.5" (12.5mm) |
| Material | AB2 Aluminium Bronze |
| Dimensions | 3.93″ Dia, .67″ Deep |
What’s in the Box:
- Sport Series LED Light and Cable
- In-line Fuse Kit
- Mounting Screws
- Quick Install Guide
