Octopus Hydraulic Gear Pump 12V 10-15CI Cylinder

Octopus Autopilot Drives

$671.24 $532.11

0 in stock
Qty :

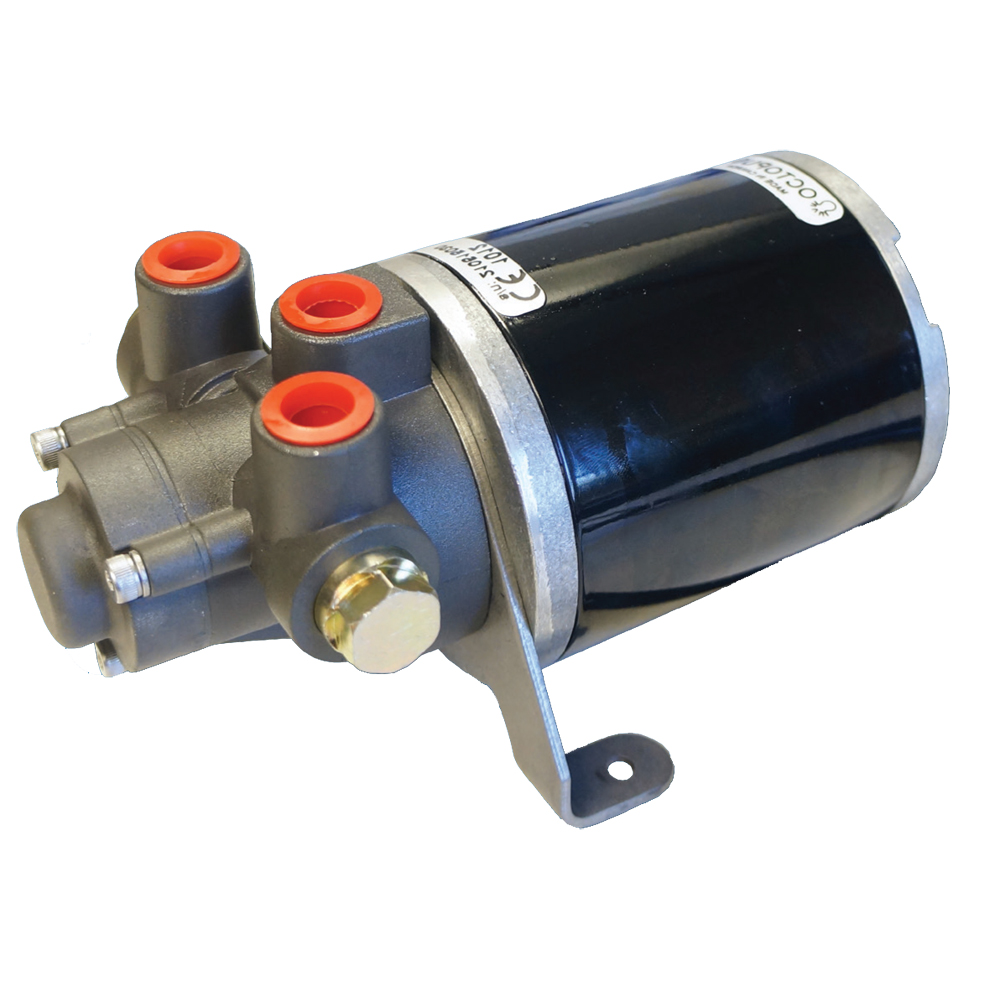

Hydraulic Gear Pump 12V 10-15CI Cylinder

From the design team that brought you the legendary Octopus hydraulic
drives, our new gear pump offers industry leading reliability and
performance in a smaller, lighter, quieter package.


  • Industry leading efficiency – lower power consumption, particularly
    under demanding conditions requiring higher flow rates equates to a major
    advantage over competing units.
  • Cost saving – the increased efficiency and performance means the pumps
    can be used with smaller autopilot course computers than equivalent drive
  • The smaller footprint of the compact gear pump increases installation
  • Lower noise and vibration make the gear pump particularly suitable for
    sailboat installations.
  • Suitable for balanced or unbalanced cylinders.
  • All models available for both 12v and 24v systems.


  • Flow Rate: 1000CC/min
  • Voltage: 12 Volt
  • Cylinder Range: 10-15ci CYLINDER
  • Average Current Draw: 5A
  • Operating Temperature: -15 to +75’C (5 – 167’F)
  • Waterproofing: IP55
  • Ignition Protection: ISO 8846 & SAEJ1171
  • EMC Compliance: EN60945-9-2002

Quick Guide Litreture

Brochure Litreture

Steering Type = NONE | Type = Pumps/Drives

Additional information

Weight 4.4 lbs
Dimensions 9 × 5 × 5 in
Model Number OCTAFG1012
UPC 628309191443
