Octopus Hydraulic Gear Pump 12V 6-9CI Cylinder

58834
Octopus Autopilot Drives

$630.61 $438.32

0 in stock
Qty :

Description

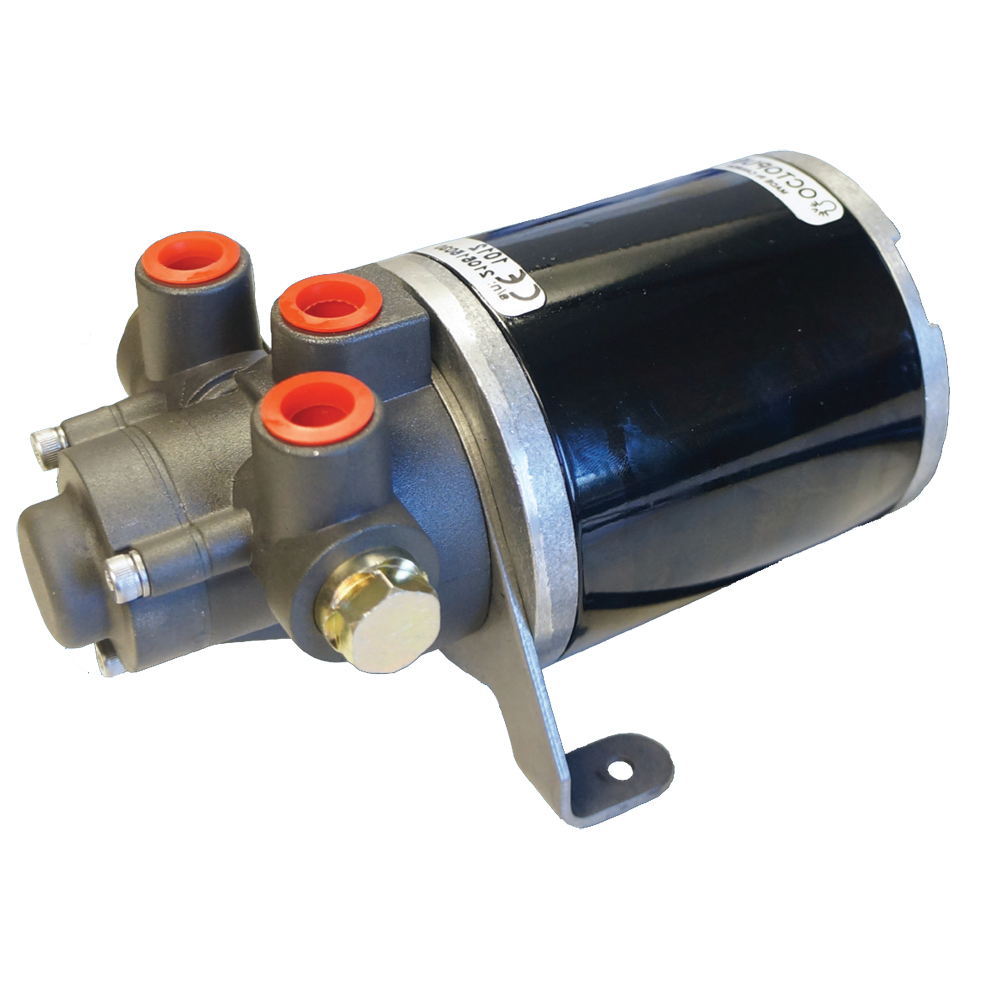

Hydraulic Gear Pump 12V 6-9CI Cylinder

From the design team that brought you the legendary Octopus hydraulic drives, our new gear pump offers industry leading reliability and performance in a smaller, lighter, quieter package.

Features:

  • Industry leading efficiency – lower power consumption, particularly under demanding conditions requiring higher flow rates equates to a major advantage over competing units.
  • Cost saving – the increased efficiency and performance means the pumps can be used with smaller autopilot course computers than equivalent drive units.
  • The smaller footprint of the compact gear pump increases installation flexibility.
  • Lower noise and vibration make the gear pump particularly suitable for sailboat installations.
  • Suitable for balanced or unbalanced cylinders.
  • All models available for both 12v and 24v systems.

Specifications:

  • Flow Rate: 600CC/min
  • Voltage: 12 Volt
  • Cylinder Range: 6-9ci CYLINDER
  • Average Current Draw: 3.8A
  • Operating Temperature: -15 to +75’C (5 – 167’F)
  • Waterproofing: IP55
  • Ignition Protection: ISO 8846 & SAEJ1171
  • EMC Compliance: EN60945-9-2002

Quick Guide Litreture

Brochure Litreture

Steering Type = NONE | Type = Pumps/Drives

Additional information

Weight 4.2 lbs
Dimensions 9 × 5 × 5 in
Model Number OCTAFG0612
