Description

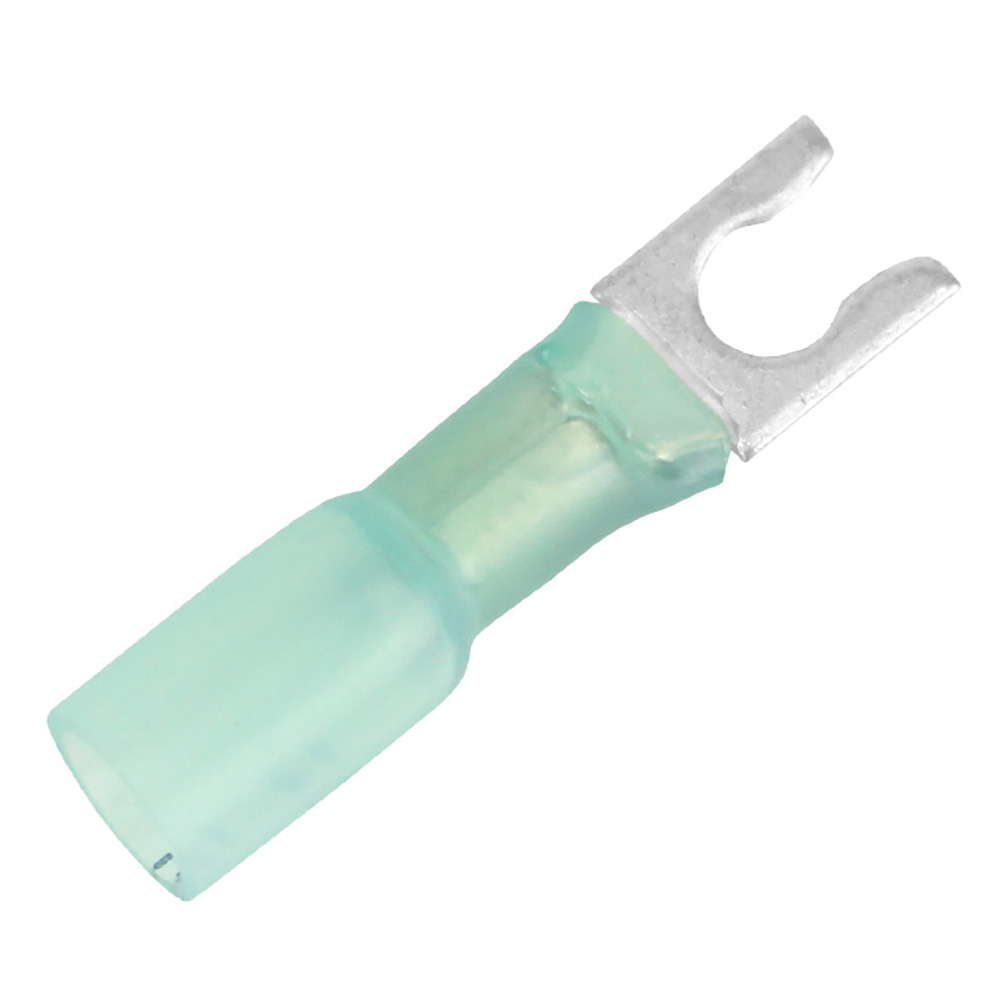

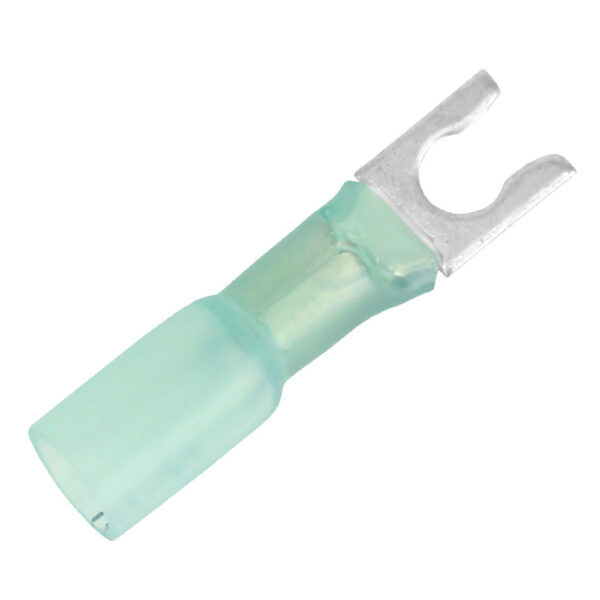

16-14 AWG Heat Shrink Spade Terminal – #10 Stud Size – 25 Pack
Fork terminals connect wires to a stud, bus bar, or another part of an electrical system. Fork terminals help prevent frayed wires and offer a high level of protection. In an electrical environment, vibration is often a factor. Standard lock terminals will disconnect should the holding screw loosen. Locking fork terminals have a projection inside the forks, causing the terminals to snap onto the screw. Flanged fork terminals have the ends of the forks turned up. These designs will keep the terminal fastened even if the holding screw loosens.
Features:
- High-quality tinned copper for corrosion resistance
- Efficient installation
- Creates solid connections
- Meets multiple compliances
Benefits:
- Environmentally sealed
- Easy to Install
- Built for durability
- Long-lasting
Specifications:
- Color: Blue
- Wire AWG: 16-14 AWG
- Stud Size: #10
- Terminal Pad Width (inch): 0.32”
- Package Size: Twenty-five included
Gauge = 16-14 AWG | Heat Shrink = Yes | Package Qty = 25 | Post Size = #10 | Type = Spade connectors
