Description

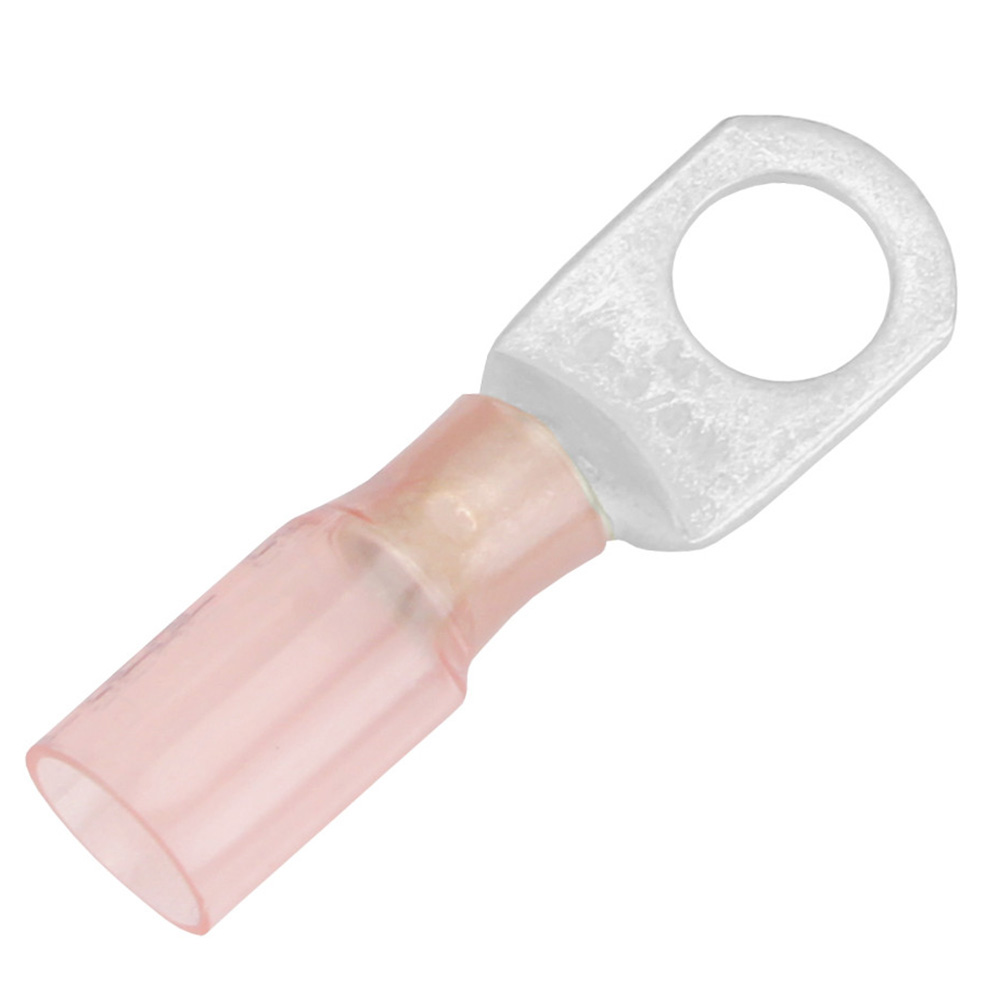

8 AWG Heat Shrink Ring Terminal – 3/8" Stud Size – 25 Pack
Ring terminals are a trusted way to create an electrical connection. By using ring terminals, users don't need to worry about the connector coming off. The ring fits over a stud or screw and doesn't pull loose as other terminals may. Pink ring terminals are for 8 AWG wires. They are easy to use and offer long-term protection. Heat shrink ring terminals protect against the elements in the most challenging of environments. This makes them the best moisture protection available. Heat shrink ring terminals possess a heat-activated adhesive liner. This liner is built to provide a durable, rugged, environmentally sealed connection for 8 AWG wires. Selecting the correct ring terminal isn't always an easy task. Contact a Pacer expert with any questions that you may have.
Features:
- Protects terminations from water, condensation, salt spray, and corrosion
- Added vibration protection in rugged environments
- Provides strain relief
- Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a seal that keeps out moisture and contaminants and prevents wire corrosion
- Conforms to automotive manufacturers’ specifications for wiring repairs
- Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job
Compliances:
- UL
- CSA
- RoHS
Characteristics:
- Shrink Ratio: Approx. 3:1 at 135 °C
- Operating Temp: -55 °C – 125 °C
- Vol. Resistivity: 1015 Ohm-cm3
- Dielectric Strength: 900-V/mil
- Voltage Rating: 600-V
Specifications:
- Stud Size: 3/8”
- Terminal Pad Width: 0.59”
- Package Size: 25
Gauge = 8 AWG | Heat Shrink = Yes | Package Qty = 25 | Post Size = 3/8" | Type = Heat Shrink
