Pacer Battery Cable Heavy Wall Heat Shrink Tubing – 1″ x 12″ – Red (2-Pieces)

105031

$20.00 $13.16

5 in stock
Qty :

Description

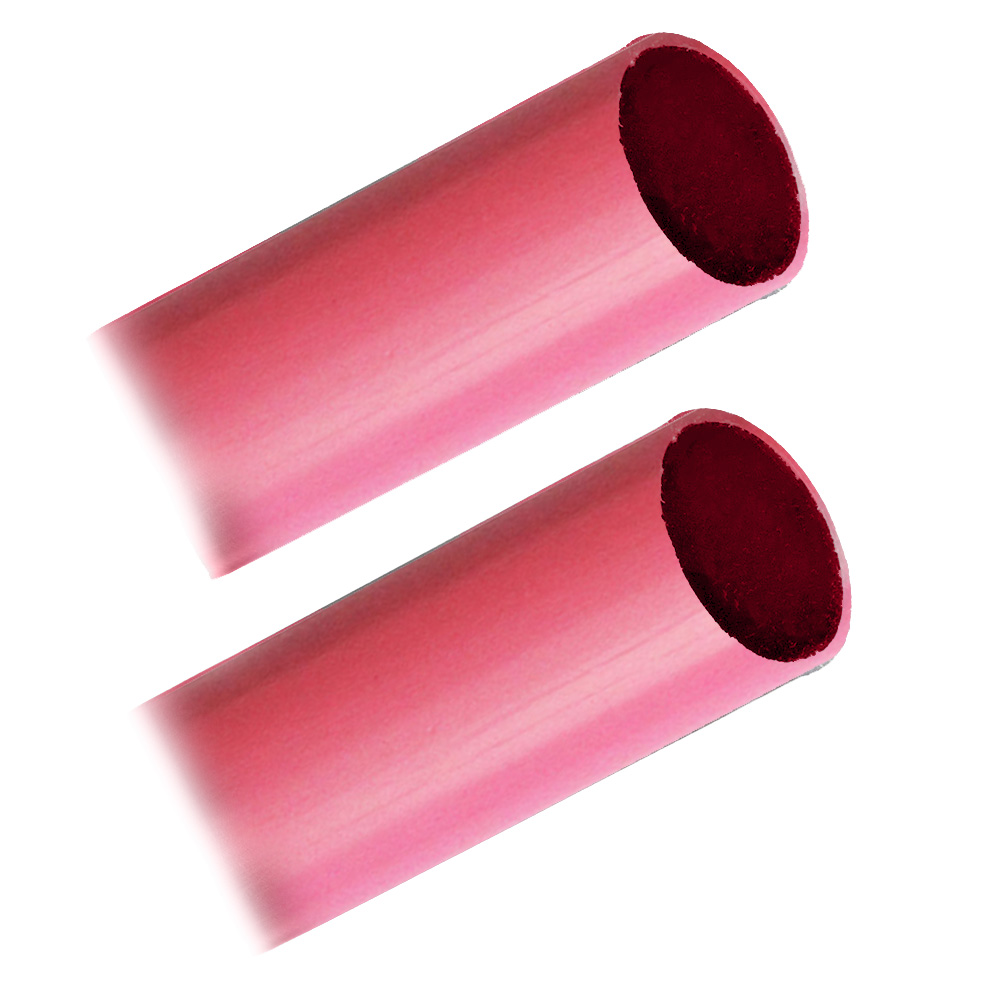

Battery Cable Heavy Wall Heat Shrink Tubing – 1" x 12" – Red (2-Pieces)

BHW is coated internally with a dual-purpose thermoplastic liner which flows and encapsulates when heated.  When cooled, the tubing offers the mechanical strength of a superior adhesive and the corrosion protection of a high-quality mastic.  Insulation varies with different types of wires, different diameters or tubing may be required.  When choosing a size, consider any components or connectors that may need to be covered.

Features:

  • Highly abrasion and impact-resistant
  • Easy installation, shrinks when heated over 120 °C
  • The thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum
  • A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermoplastic adhesive provides superior environmental protection.
  • Any connection in harsh conditions
  • Adhesive lining provides a barrier against contaminants
  • Excellent resistance to acids and alkalis
  • Good resistance to fuel, oil, and solvents

Applications:

  • Splice sealing
  • Primary insulation
  • Cable/jacket repair
  • Direct burial/submersible
  • Strain relief

Specifications:

  • Expanded Inner Diameter: 1.1"
  • Recovered Inner Diameter: 0.367"
  • Application Range AWG: 1/0 – 4/0 (.40 – .95)
  • Recovered Wall Thickness: 0.12"

Compliances:

  • MIL-I-23053/15 Class 2

Type = NONE

Additional information

Weight 0.2 lbs
Dimensions 12 × 3 × 1 in
Model Number BHW1-12RD-2
UPC 840248214377
