Pacer Deutsch 6 AWG DTHD Power Plug & Receptacle w/Pin & Socket

105015

$36.02 $31.47

0 in stock
Qty :

Description

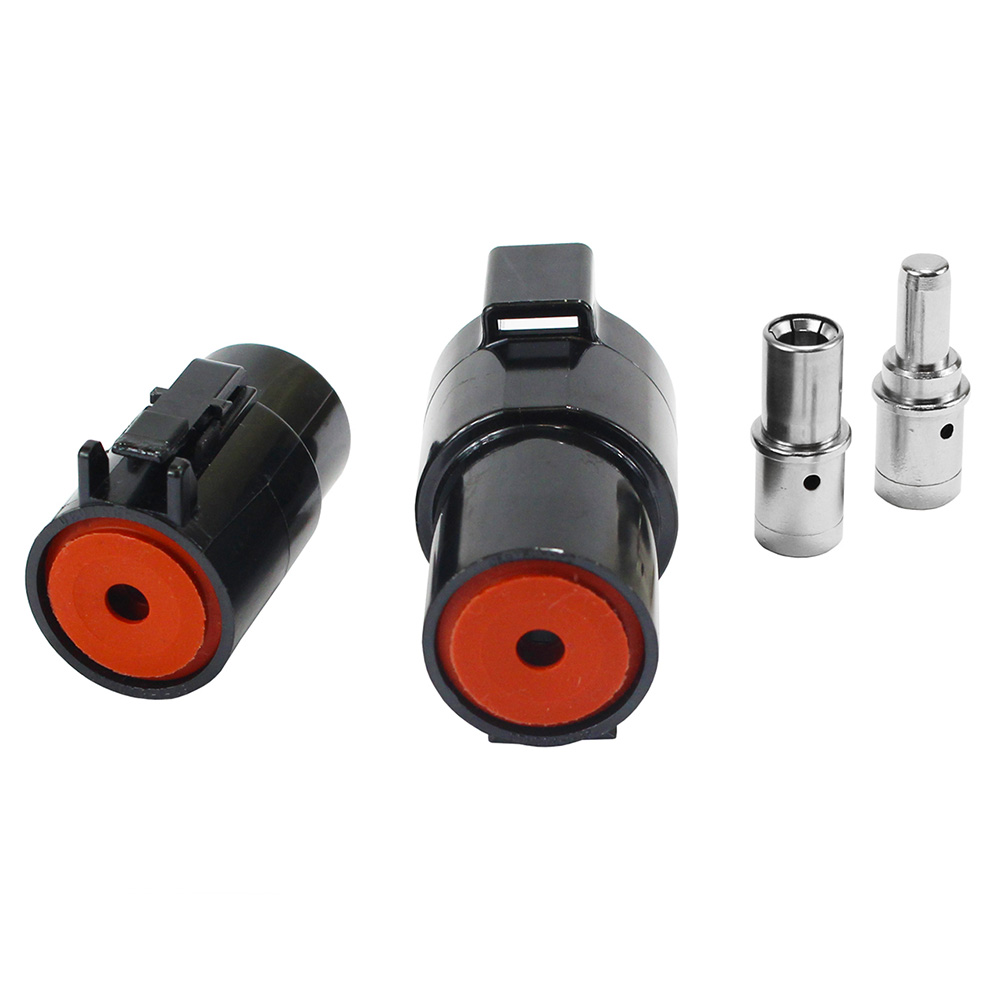

Deutsch 6 AWG DTHD Power Plug & Receptacle with Pin & Socket

DTHD power plugs and receptacles are single connectors for heavy-duty applications. Easy to install, environmentally sealed, and compact they are a simple, field-serviceable alternative to a splice. Contact a Pacer expert with any questions that you may have.

Features:

  • Environmentally sealed disconnectable power wire splicing
  • 60-100 Amps at 125°C
  • Easy to install
  • Field serviceable

Applications:

  • Wire-to-wire applications
  • Enclosed connectors offer field-proven reliability and rugged quality

Characteristics:

  • Redundant Silicone Seals
  • Contacts are hand-insertable

Compliances:

  • Ingress Protection (IP) Level: IP67
  • EU RoHS/ELV

Specifications:

  • Kit Contents: (1) DTHD Plug, (1) Size 4 Socket, (1) DTHD Receptacle, (1) Size 4 Pin, (2) Reducer Crimp Sleeves for 10 or 8 AWG
  • Deutsch Series: DTHD
  • Wire Range: 6 AWG
  • Connector Types: Plugs & Receptacles

Gauge = NONE | Heat Shrink = NONE | Package Qty = NONE | Post Size = NONE | Type = NONE

Additional information

Model Number TDTHD-1-4KT
