Description

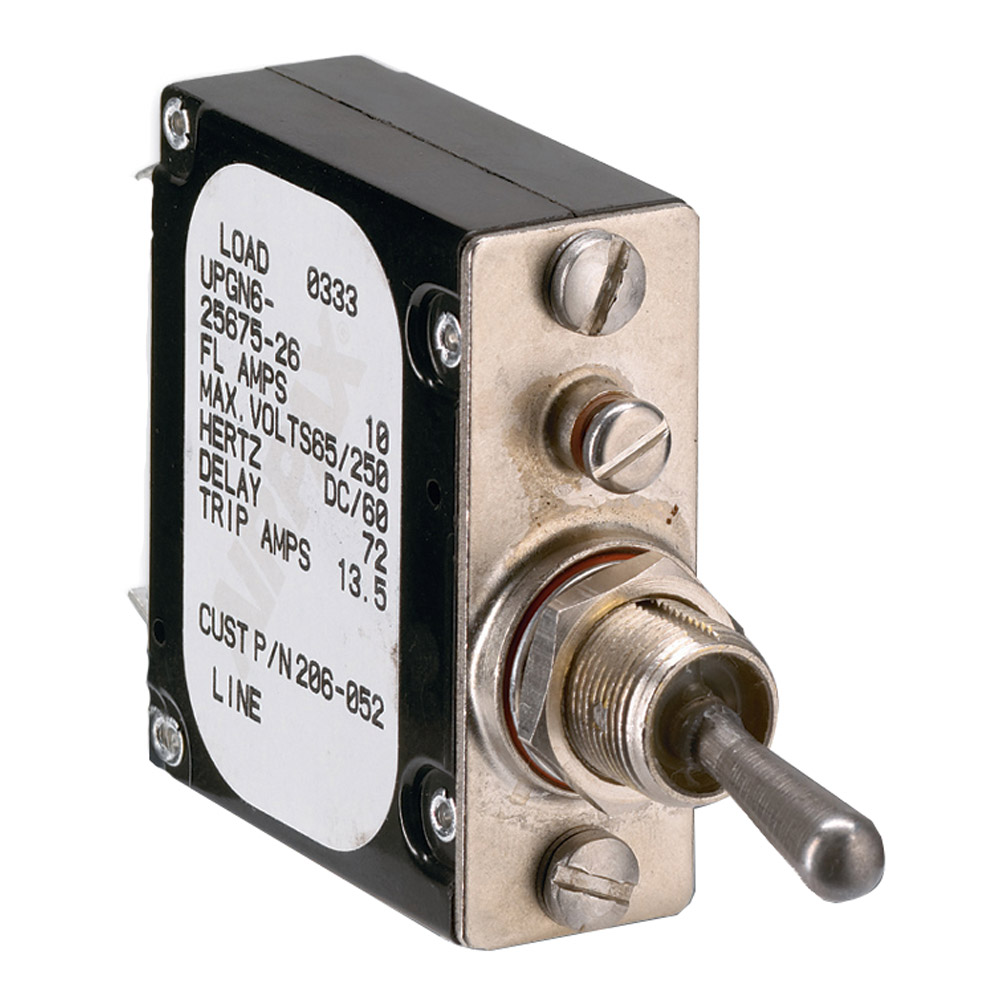

Panel Seal/Waterproof “A” Frame Magnetic Circuit Breakers

• Branch AC or DC circuit breaker for Paneltronics electrical distribution panels

• Meets all American Boat and Yacht Council (ABYC) Standards for non-ignition protected circuit breakers

• UL Recognized (UL 1077) for use in th USA, and CSA Certified for use in Canada

• Trip free (ABYC E-11.10.1.5.4 and E-11.10.2.1.1)

• Manual reset (ABYC E-11.10.1.5.6 and E-11.10.2.1.1)

• Handle Color – Metal with silicon rubber seal

• Maximum Aperage – 50 Amps

• Maximum Voltage/AIC – 32 VDC/2,500 amps with no back-up fuse (ABYC E-11.10.1.5.5)

• Rated Switch Cycles – 10,000 actuations at rated current and voltage

• Electrical Hardware – Hex nut 1/2-32 (supplied with circuit breaker); Lockwasher 1/2″ internal tooth (supplied with circuit breaker)

• Optional Boot – Black silicone rubber (P/N 048-015)

  Action = NONE | Color = Stainless | Throw/Pole = SPST
