Description

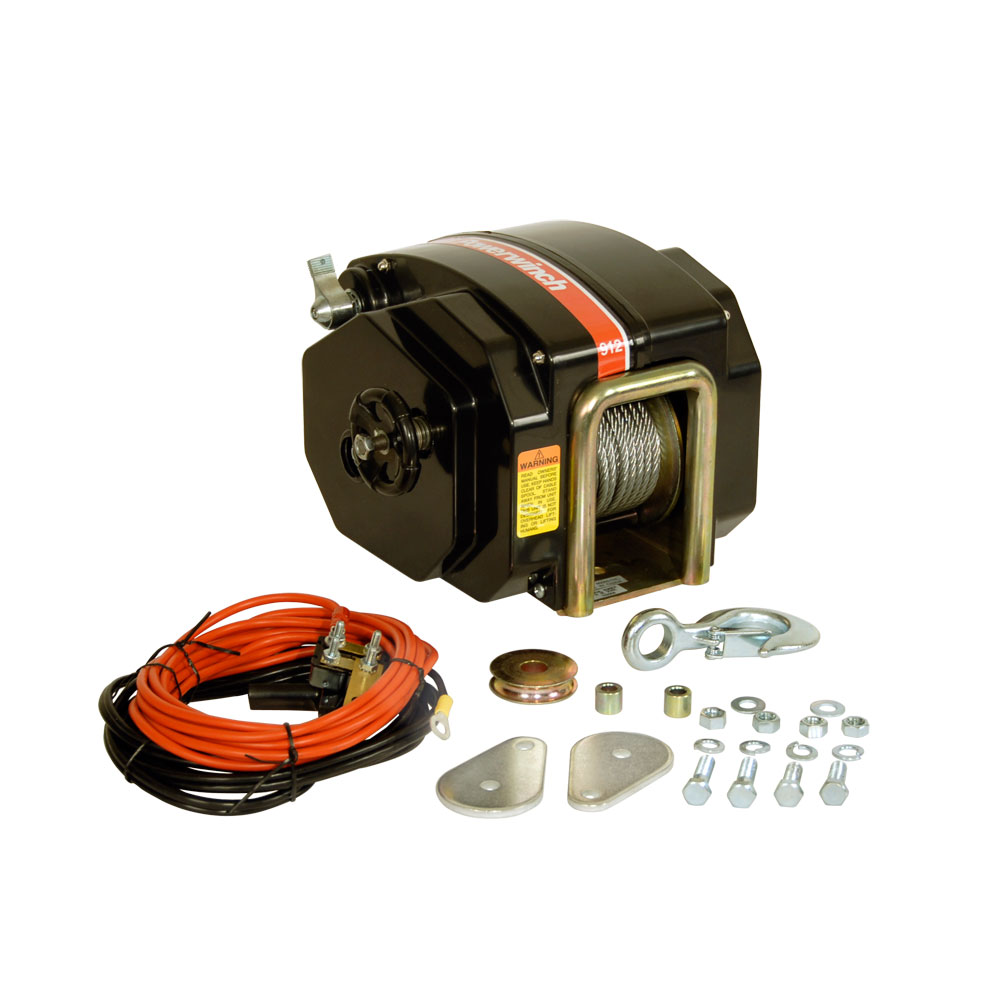

12v Electric Trailer Winch
The 912 and 712 Trailer Winches are well established with solid, reliable reputations. They feature smooth power-in/free-wheel out action. You can use a pulley or block at the bow eye to double your pulling power You can get more strength out of your trailer winch, but it slows retrieval speed 50%.
- Remote power-in/freewheel-out operation
- 60 amp standard wiring harness
- Pulley block for double line applications
- One year limited warranty
Model 912
- 30' suggested max boat length
- Max. boat weight of 11,500 lbs
- 4000 lb vertical lift capacity (single line) or double pull/line capacity 7500 lbs. (Not to be considered or used as a hoist)
Specifications
- Max. Boat Weight: 11500
- Line Speed: 8 FPM
- Vertical Lift Capacity: 4000 lbs
- Remote Control: No
- Light: No
- Double Line Capacity: 7500 lbs
- Gear Ratio: 450:1
- Power Source: 12V
- Circuit Breaker: 60 amp
- Unit Weight: 35 lbs
- Depth: 10"
- Width; 10"
- Height: 8"
- Cable Length and Diameter: 40' x 7/32"
Pull Strength (lbs) = 4000 lbs | Manual/Electric = Electric | Gear Ratio = 450:1
