Description

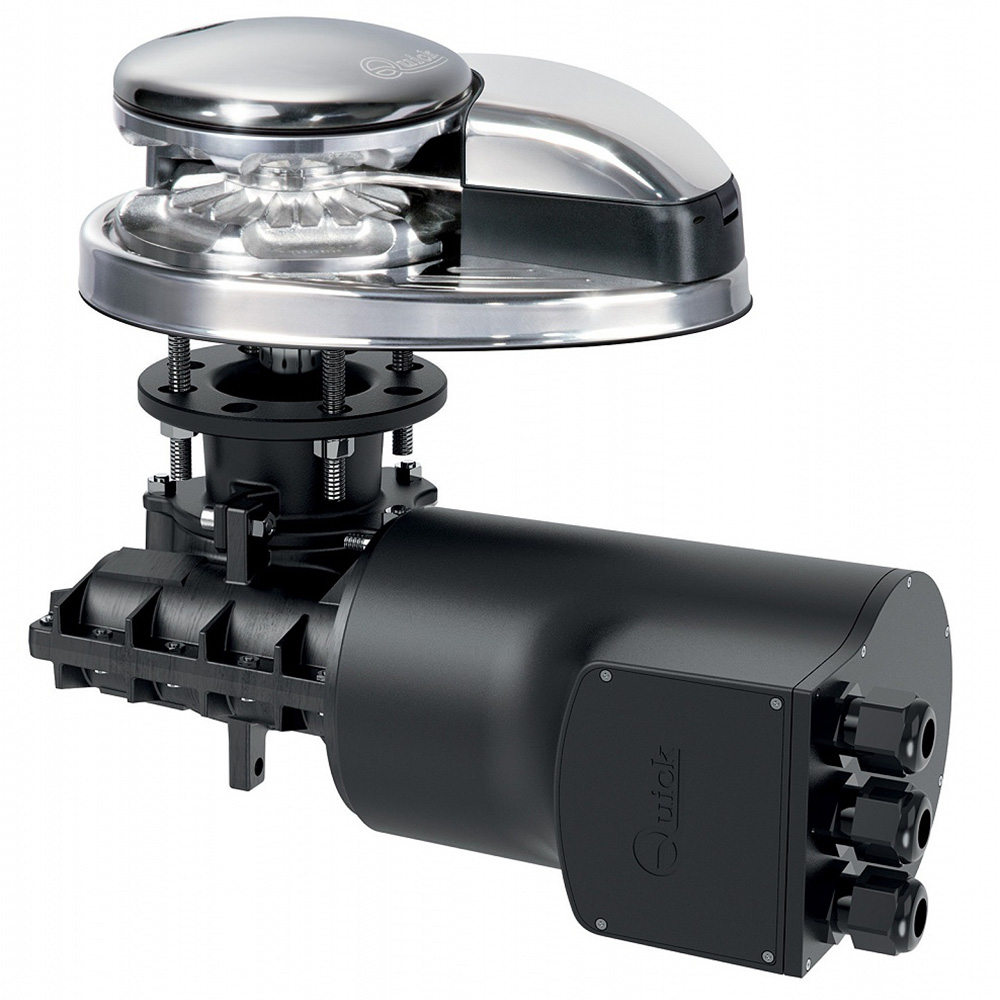

Prince DP3 1012 Windlass – 1000W – 12V – 10mm (3/8″) Gypsy

This Quick Prince windlass is a vertical-axis windlass.

Application:

• For boats 10-14 m (33-46 ft.)

Features:

• No drum
• Vertical windlasses
• Stainless steel Aisi 316 base and anodized aluminum in hard oxide
• Rope and chain on a single gypsy
• Integrated sensor and a magnet for chain counter
• Manual Free-Fall system
• Supplied with pressure lever
• Inspection lid
• Motor watertight to IP67
• Technopolymer Gearbox (1000W)

Specifications:

• Rope: 5/8 in. (15,8 mm)
• Motor Power: 1000 W
• Motor Supply Voltage: 12 V
• Maximum Pull: 1000 Kg / 2204 lb
• Maximum working load    370 Kg / 816 lb
• Working Load: 120 Kg / 264 lb
• Current Absorption @ Working Load: 140 A
• Maximum Chain Speed: 39,6 m/min / 129.2 ft/min
• Maximum Chain Speed @ Working Load: 20,4 m/min / 66.9 ft/min
• Weight – DP3 – [without drum]: 17,4 Kg / 38 lb

Chain - Diameter (Inches) = 0.38 | Vertical/Horizontal = Vertical | Rope Diameter (Inches) = 0.63 | Freefall = Yes
