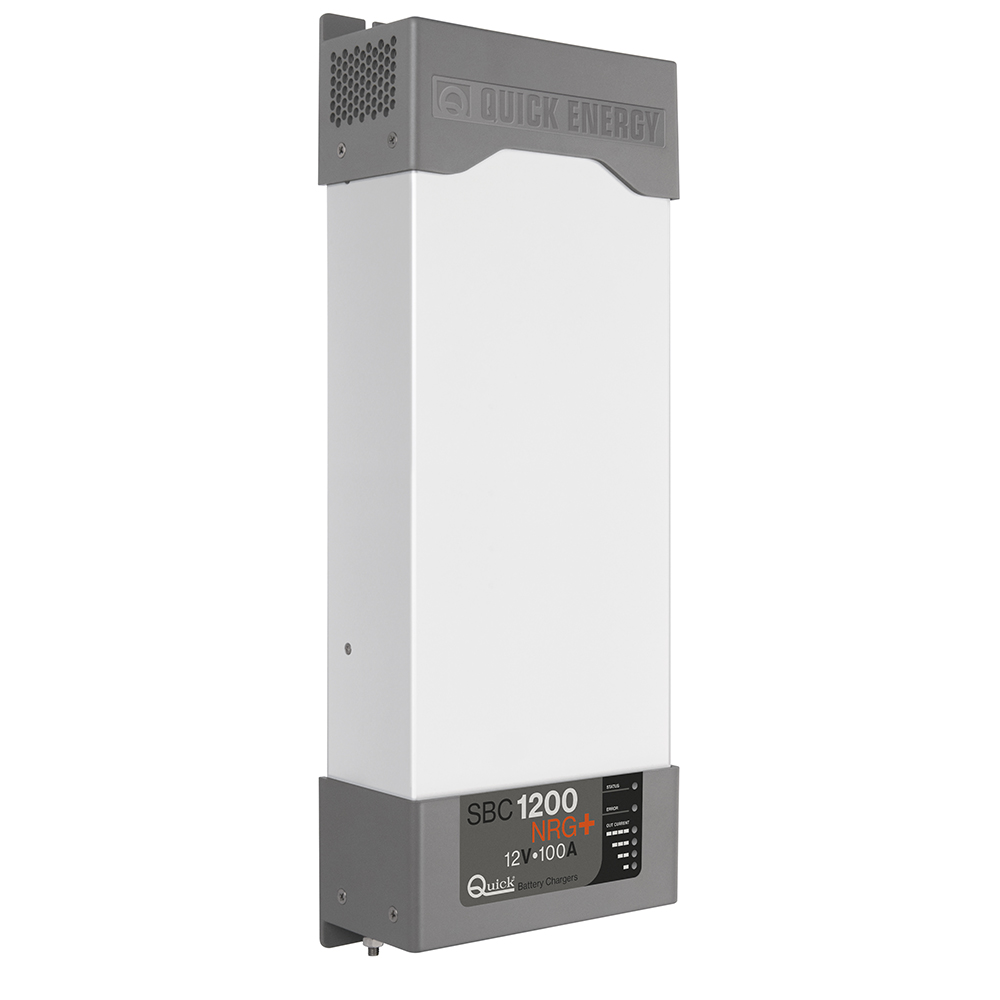

Quick SBC 1200 NRG+ Series Battery Charger – 12V – 100A – 3-Bank

70384
Quick

$2544.01 $1686.68

0 in stock
Qty :

Description

SBC 1200 NRG+ Series Battery Charger – 12V – 100A – 3-Bank

The long experience we have in the nautical field has given us the ability to evolve the range of SBC battery chargers, now called NRG+, with superior performance to those currently on the market.

The advantages which the SBC NRG+ battery chargers offer, are:

  • Three stage IUoU battery charging
  • High efficiency
  • Multiple outputs in order to charge more groups of batteries (MOSFET charge separator inside)
  • Differentiated charging for open or sealed liquid electrolite, Gel, AGM, Optima®, Li-Ion Batteries
  • Integrated output fuses inside the battery chargers (for each output)
  • Capacity of supplying full power with low AC mains voltage
  • Possibility to connect in parallel up to three battery chargers of the same model for current sharing by means of digital control
  • Low residual fluctuation on output
  • Universal AC supply input 264 ÷ 83 Vac, 45 ÷ 66 Hz
  • Power factor equal to 1
  • Compatible with the generators
  • Short circuit, overloading, output overvoltage and overheating protection
  • Can work in a wide range of ambient temperatures
  • Variable speed for the cooling fan
  • User interface via LEDs that signal the status, errors and the output current
  • Backlit LCD terminal with multi-language interface (optional)
  • Charge is compensated according to the temperature of the batteries (1 sensor supplied; more senors optional)

Owner Manual

Charger Input - Voltage = 120/230v | Portable = No | Charging Banks = 3 | Charger Output Voltage = 12v | Charger Output - Amps = 100a

Additional information

Weight 12.9 lbs
Dimensions 23 × 13 × 6 in
Model Number FBNRP1200FR0A00
UPC 8057090147834
