RAM Mount 1.5″ Ball Mount w/2.5″ Round Base, Short Arm & 1.5″ x 3″ Plate f/Humminbird Helix 5 Only

71957
RAM Mounting Systems

$59.49 $39.27

4 in stock
Qty :
,

Description

1.5″ Ball Mount w/2.5″ Round Base, Short Arm & 1.5″ x 3″ Plate f/Humminbird Helix 5 Only

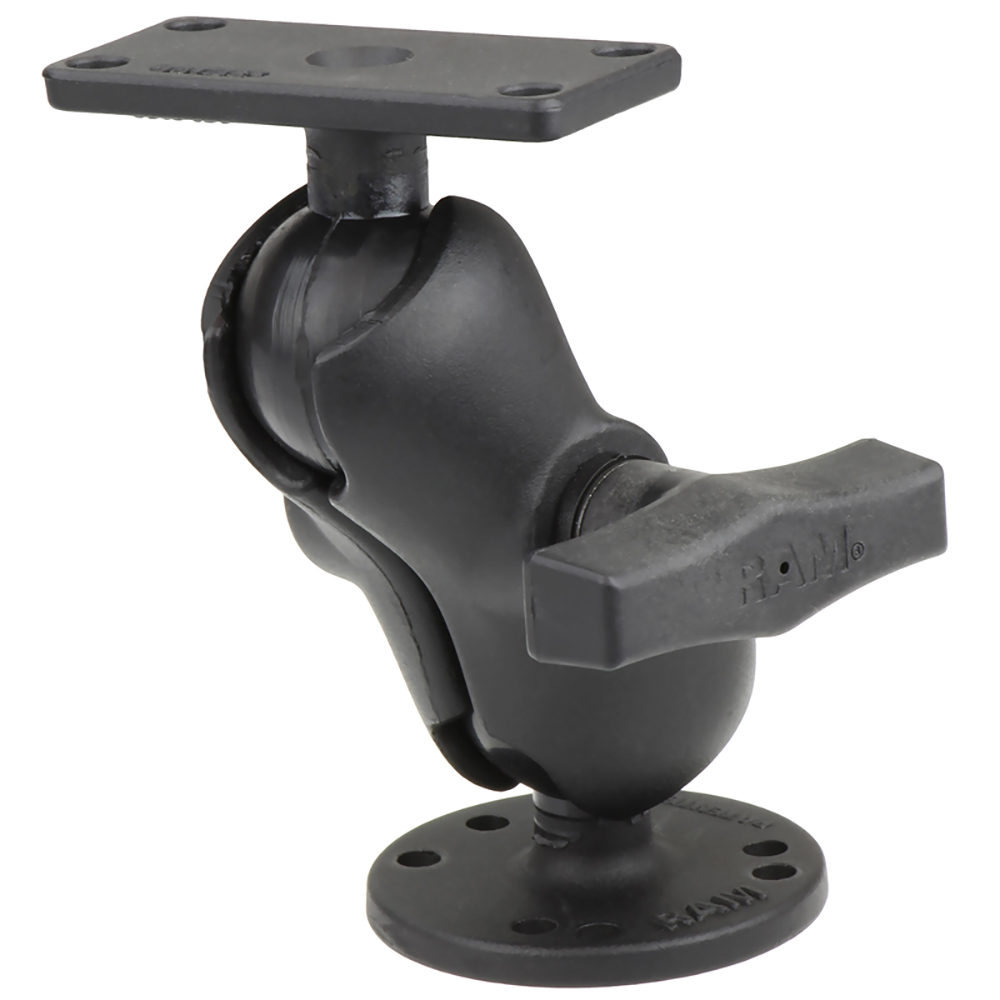

The RAM-202-153-B-202U consists of a round 2.5″ diameter round base (Universal AMPs Hole Pattern), short double socket arm and 1.5″ x 3″ rectangular base. The rectangular base contains four holes with a center to center pattern of 1″ x 2.5″. For most applications, mount will support up to ten pounds.

Features:

  • Compatible Devices: Humminbird Helix 5
  • Center to Center Hole Pattern: 1″ x 2.5″
  • Weight Capacity: 10 lbs.
  • Overall Height: 5.225″
  • Material: Powder Coated Marine Grade Aluminum
  • Ball Size: 1.5″ Rubber Ball Size
  • Note: The “U” in the part number reflects product packaged in poly bag. Hardware for mounting to device not included with purchase.
  • Weight: 0.19 lbs.

Additional information

Weight 0.95 lbs
Dimensions 8 × 3 × 2 in
Model Number RAM-202-153-B-202U
