Description

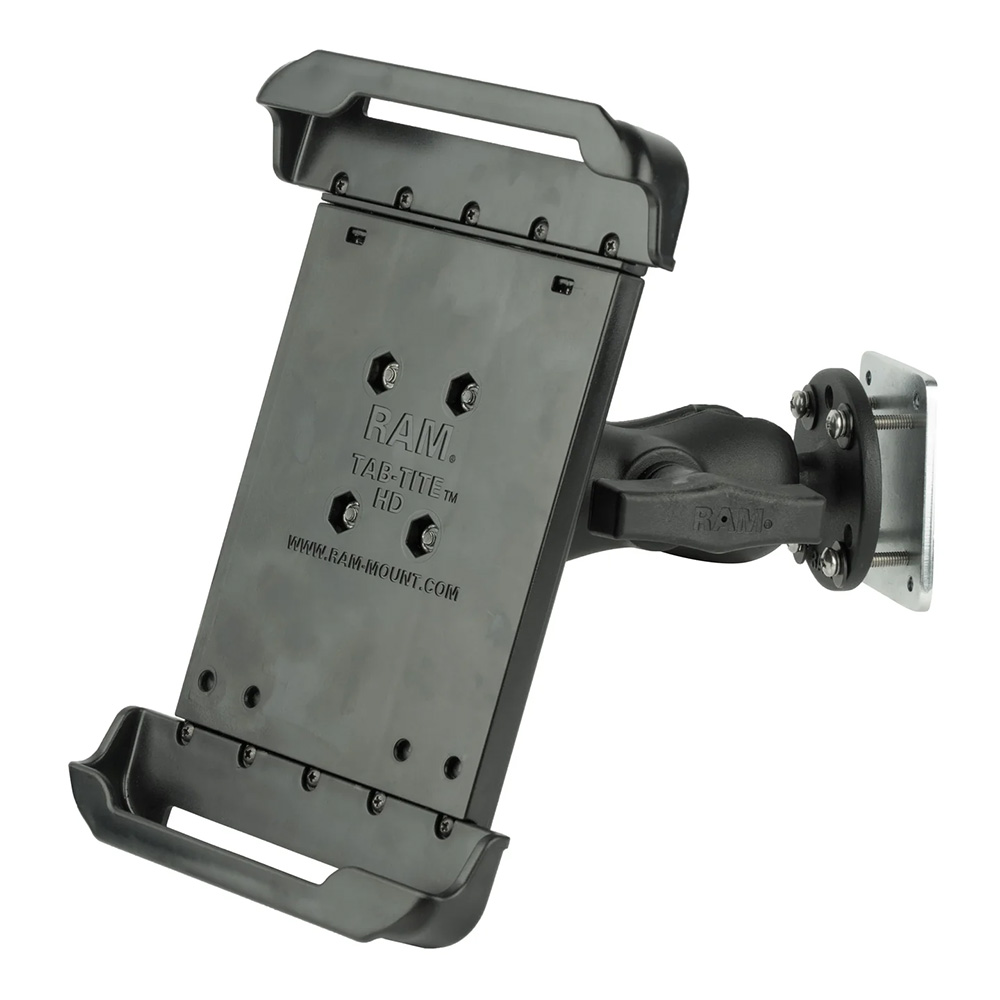

Dashboard Mount with Backing Plate for 7″-8″ Tablets with Cases

The RAM® Tab-Tite™ bundle is a rugged mount including the RAM® Tab-Tite™, RAM® Universal Double Ball Mount with Two Round Plates, and RAM® Backing Plate Adapter. The RAM® Tab-Tite™ spring-loaded, quick-release holder offers a secure fit with easy access to the mounted tablet. The spring-loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions.

The RAM-101U-B consists of a short double socket arm and two 2.5″ diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 1.5″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allow for almost infinite adjustment and perfect viewing angles. The included 2.10″ x 2.60″ steel backing plate with #8-32 threaded holes attaches to a variety of RAM® Mounts ball bases.

Features:

• The spring-loaded holder secures 7 in. -8 in. tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices
• Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders
• 2.10 in. x 2.60 in. steel backing plate attaches to a variety of RAM® Mounts ball bases
• Ball and socket technology allows for near-infinite adjustability
• Backed by a lifetime warranty

Specifications:

• Hardware Included: Assembly Hardware, (1) 2.10″ x 2.60″ Steel Backing Plate, (4) #8-32 x 1″ Screws, (4) #8 Split Lock Washers, and (4) #8 Flat Washers
• Holder Dimensions (inch): Height Range: 8.32″ – 10.92″, Width Range: 4.43″ – 5.3″, Depth Range: .13″ – .62″
• Socket to Socket Length (inch): 2.5”
• Hole Pattern (inch): 4-Hole AMPS: 1.181″ x 1.496″, 3-Hole 120-Degree: 1.812″ Diameter
• Ball Size (inch): C size (1.5”)
• Weight Capacity: The standard use is 4 lbs. and the heavy-duty use is 3 lbs.
• Materials: Marine-grade aluminum, high-strength composite, powder-coated steel
• Weight: 1.98 lb.

Compatible Devices:

• Samsung: Galaxy Tab 4 8.0 with Otterbox Defender Case, Galaxy Tab A 8.0 (2017) with Case, Galaxy Tab A 8.0 (2018) with Case, Galaxy Tab A 8.0 (2019) with Case, Galaxy Tab S 8.4 with Otterbox Defender Case, Galaxy Tab E 8.0 with Verizon Rugged Case, and Galaxy Tab Active2
