RAM Mount No Drill Vehicle System Dodge 1500-5500 2008-2011

40781
RAM Mounting Systems

$315.99

(MAP Pricing)
Place in cart to see Sale Price

0 in stock
Qty :

Description

Vehicle Base

Compatible Vehicles:
DODGE RAM 1500-5500 (2008-2011)

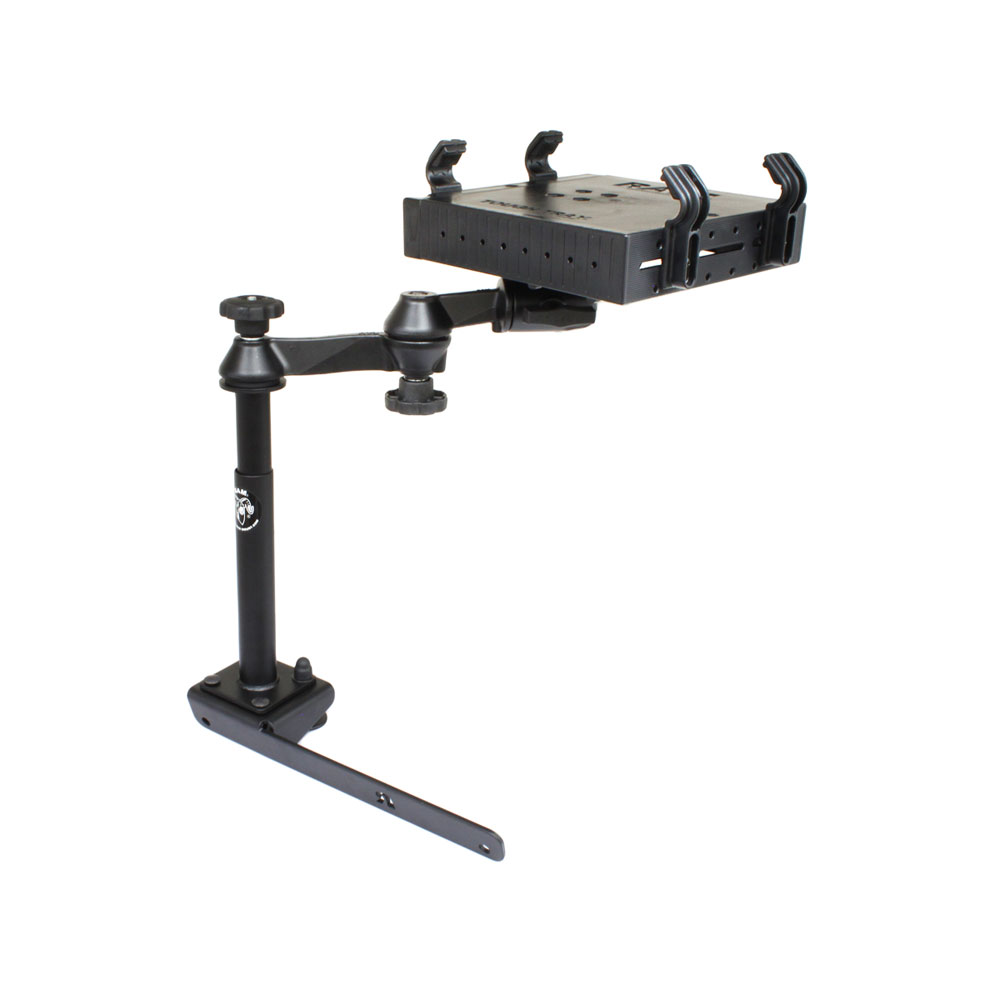

This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation

Placement of Mount:
Passenger side, front, where seat rail frame attaches to floor board.

DRILLING REQUIREMENTS:
No – attaches to seat studs

Seat Configuration:
Bucket

Pole:
Purchased Separately

Weight:
2.1 lbs.

Material:
Powder Coated Steel

Dimensions:
A = 14.75″, B = 3.8″, C = 1.75″, Hole Center = 13.25″

Features:
Quick installation with no drilling needed. Rock solid construction with lifetime warranty. Low profile keeps mount away from passenger leg space. Won?t interfere with levers or factory-installed console or 4WD lever. Designed to accommodate trucks with PTO

Swing Arm
The RAM RAM-VP-SW1-89, combination swing arm/tele-pole system, will connect to any RAM vehicle base without a welded female tele-pole. Included is a tele-pole with a height range from 11.5″ to 17″; it can be easily adjusted by turning the knob at the top of the post. Once the knob has been tightened, the tele-pole becomes a rigid support for any RAM cradle, holder or Tough-Tray.

The double swing arm with rotating plate, allows you to twist and tilt the viewing angle of your laptop, tablet, UMPC, monitor, or any other connected electronic device, when mounted on your RAM Vehicle Mount. Taking the highly successful RAM Vehicle Mounts to the next level, this rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place. The length of the double swing arm is 12″.

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1.5″ Rubber Ball “C” Size

Note:
Part number reflects product packaged in clear clam shell for store shelf display.

Laptop Mount Tray
The RAM Tough-Tray is spring loaded expandable tray that can accommodate 10 to 16 inch wide laptops. The tray includes four (4) side clamping arm with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS, PDAs or other electronics.

Tough-Tray Dimensions:
Tray Depth: 10.0″
Tray Thickness: 2.125″
Tray Width (Expansion): 10″ to 16″
Side Clamp Arm Height: 0.5″ (min) to 1.75″ (max)

Material:
High Strength Composite

Note:
Part number reflects product packaged in clear clam shell for store shelf display. The Tough-Tray is compatible with laptops that have 17″ screens. If the Tough-Tray Laptop Cradle is intended to hold a laptop or device while the vehicle is in motion, we recommend the Secure-n-Motion kit.

Owner Manual

Additional information

Weight 13.3 lbs
Dimensions 20 × 11 × 5 in
Model Number RAM-VB-178-SW1
UPC 793442916922
