Description

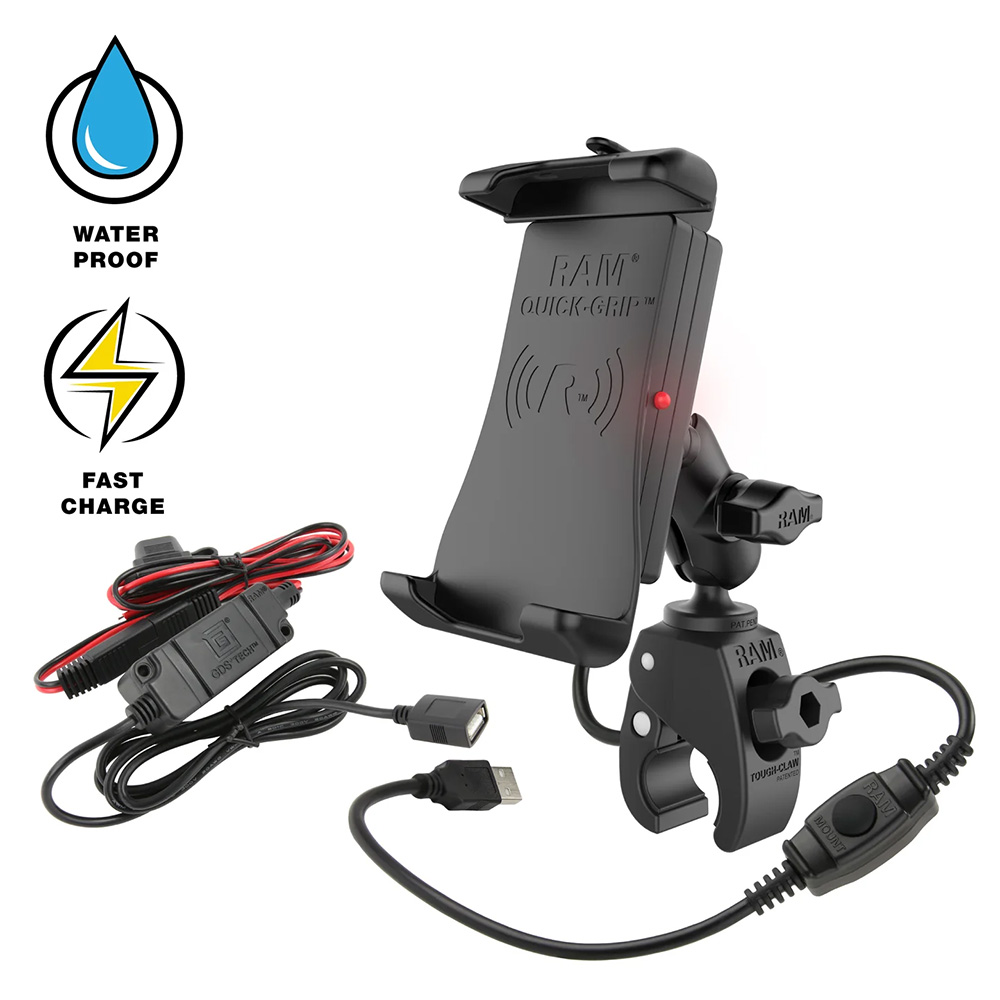

Quick-Grip™ 15W Waterproof Wireless Charging Mount with Tough-Claw™
The RAM® Quick-Grip™ Wireless is a patented, universal, waterproof wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi wireless phone charging.
Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward, and then gently place your device against the cradle for a secure fit. This Qi wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications.
This RAM® Quick-Grip™ Wireless kit includes a B-size diamond base featuring a 1″ rubber ball, a short-length double socket arm, and a RAM® Tough-ClawTM clamping base. With the RAM® Tough-Claw™ base, you can easily attach the wireless phone charger to round, square, and odd-shaped rails and bars ranging from .625″ to 1.14″ in outer diameter.
The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwired charger.
Features:
- The waterproof Qi-compatible wireless phone charging cradle features a spring-loaded RAM® Quick-Grip™ design and 15W maximum output
- Kit includes a wireless charging cradle, B-size diamond ball base, short double socket arm, RAM® Tough-Claw™ clamping base, and hardwire charger
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- RAM® Mounts are backed by a lifetime warranty and RAM® electronics are backed by a 1-year warranty with proof of purchase required
Specifications:
- Hardware Included: (1) Safety Tether, (1) Silicon sleeve for USB waterproof connection, (1) Hardwire Charger with Cable, (4) Small zip ties, and (4) Large zip ties
- Holder Dimensions (inch): Height Range: 5.625″ – 6.625″, Max Width: 3.125″, Max Depth: .7″
- Clamp Range (inch) .625” – 1.14” diameter
- Socket-to-Socket Length (inch): 1.75″
- Ball Size (inch): B Size (1″)
- Weight Capacity: Standard Use: 2 lbs / Heavy-Duty Use: 1 lbs
- Materials: Marine-grade aluminum and stainless steel
- Weight: 3.13 lb.
- Warranty: 1 year
Power Specifications:
- Input Power: 5V-2A; 9V-1.67A
- Output: 15W
- Conversion Efficiency: 85% Max
- Maximum Case Thickness: 6mm
- Working Frequency: 110-205KHZ
- Product Standard: WPC v.1.2.4
- Qi Compatible: Yes
- Compatible with QC2.0/QC3.0 power supplies
- Operating Temperature: 0°C to +37.7°C
- Compliance: Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), and Moisture Resistant
- Certifications: CE Certification, KC, e-Mark Certification, RCM Certification, FCC Certification
Compatible Devices:
- Apple: iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max, iPhone 8, iPhone 8 Plus, iPhone SE, iPhone X, iPhone Xr, iPhone Xs, and iPhone Xs Max
- Blackberry: Evolve X
- Blackview: BV9900 and BV9900 Pro
- Google: Pixel 3, Pixel 3 XL, Pixel 4, Pixel 4 XL, Pixel 5, Pixel 6, Pixel 6 Pro, Pixel 7, and Pixel 7 Pro
- Huawei: Mate 20 Pro and P30 Pro
- LG: G6, G6+, G7 ThinQ, G8 ThinQ, G8S ThinQ, V30, V35 ThinQ, V40 ThinQ, and V50 ThinQ
- Nokia: 8 Sirocco and 9 PureView
- Razer: Phone 2
- Samsung: Galaxy Note 10, Galaxy Note 10 Plus, Galaxy Note 5, Galaxy Note 8, Galaxy Note 9, Galaxy S10, Galaxy S10 5G, Galaxy S10+, Galaxy S10e, Galaxy S20, Galaxy S20+, Galaxy S20 Ultra 5G, Galaxy S21 5G, Galaxy S21+ 5G, Galaxy S21 Ultra 5G, Galaxy S22 5G, Galaxy S22+ 5G, Galaxy S22 Ultra 5G, Galaxy S23, Galaxy S23+, Galaxy S23 Ultra, Galaxy S6, Galaxy S6 Edge, Galaxy S6 Edge+, Galaxy S7, Galaxy S7 Active, Galaxy S7 Edge, Galaxy S8, Galaxy S8+, Galaxy S8 Active, Galaxy S9, and Galaxy S9+
- Sony: Xperia XZ2, Xperia XZ2 Compact, and Xperia XZ3
- Xiaomi: Mi 9, Mi 9 Explorer, Mi Mix 2S, and Mi Mix 3
- ZTE: Axon 9 Pro, Axon 10 Pro
