Description
RAM® ATV/UTV Ball Base for Rails Up To 3.15" – Zinc
Designed for a clean installation, the RAM-B-231Z-2U base accommodates most common rail and bar sizes on UTVs and ATVs. With the strap clamp safely concealed in a compact housing, you won't have to worry about exposed sharp edges or unwanted loosening. Included in the kit is a zinc-coated metal U-bolt, allowing you to modify the mount for another mounting location. The base also includes black cover caps to be placed over the exposed ends of the U-bolt.
Features:
- Rail and bar base for UTVs and ATVs includes strap clamp and U-bolt components
- Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

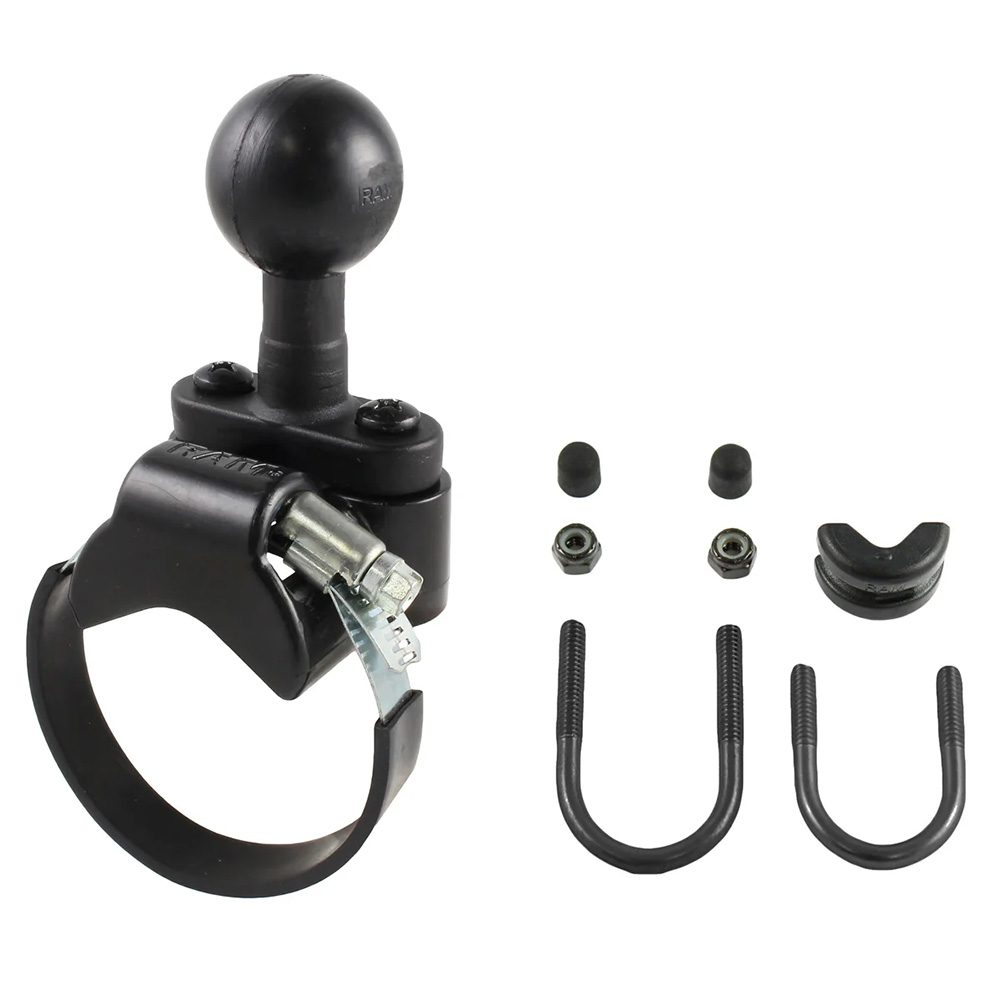

Hardware Included:
- (1) Strap Clamp Adapter
- (2) 1/4"-20 x 1" Machine Screws
- (2) 1/4"-20 Nylock Nuts
- (1) Zinc Worm Drive Strap Clamp
- (1) 6" Rubber Strip
- (1) 1/4"-20 U-Bolt for .5" – 1" Rails
- (1) 1/4"-20 U-Bolt for 1" – 1.25" Rails
- (2) Rubber Caps
- (1) U-Bolt Spacer
Specifications:
- Clamp Range: U-Bolt: .5" – 1.25" diameter, Strap Clamp: 1.57" – 3.15" diameter
- Ball Size: B Size (1")
- Weight Capacity: Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
- Materials: Marine-grade aluminum, high-strength composite
- Packaging Type: Poly Bag
- Weight: 0.55 lbs.
