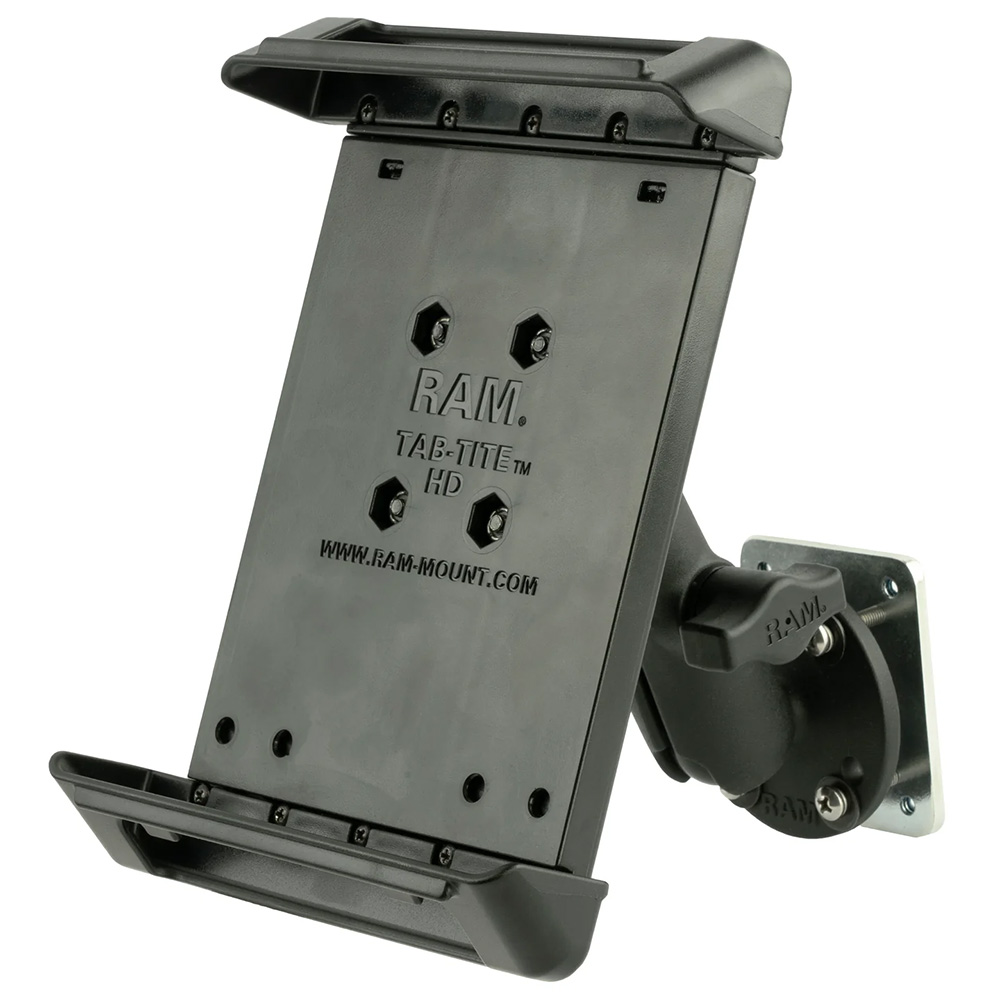

Tab-Tite™ Drill-Down Mount with Backing Plate for Small Tablets

This mount consists of a 2.10″ x 2.60″ backer plate, double socket arm, round base adapter, and Tab-Tite™ universal clamping cradle. The spring-loaded Tab-Tite™ cradle makes it easy to load and unload your tablet while keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet. By allowing access to audio jacks, USB, power, and other ports, your tablet can be used just as it was intended.

The Tab-Tite™ cradle is compatible with any tablet that fits the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Specifications:

• Hardware Included: Assembly Hardware, (1) 2.10″ x 2.60″ Steel Backing Plate, (4) #8-32 x 1″ Screws, (4) #8 Split Lock Washers, and (4) #8 Flat Washers
• Holder Dimensions (inch): Height Range: 7.375″ – 10″, Width Range: 4″ – 5.31″, Depth Range: .13″ – 1.06″
• Socket to Socket Length (inch): 3”
• Hole Pattern (inch): 4-Hole AMPS: 1.181″ x 1.496″, 3-Hole 120-Degree: 1.812″ Diameter
• Ball Size (inch): B size (1”)
• Weight Capacity: The standard use is 2 lbs. and the heavy-duty use is 1 lb.
• Materials: Marine-grade aluminum, high-strength composite, and steel
• Weight: 1.2 lb.
