Description

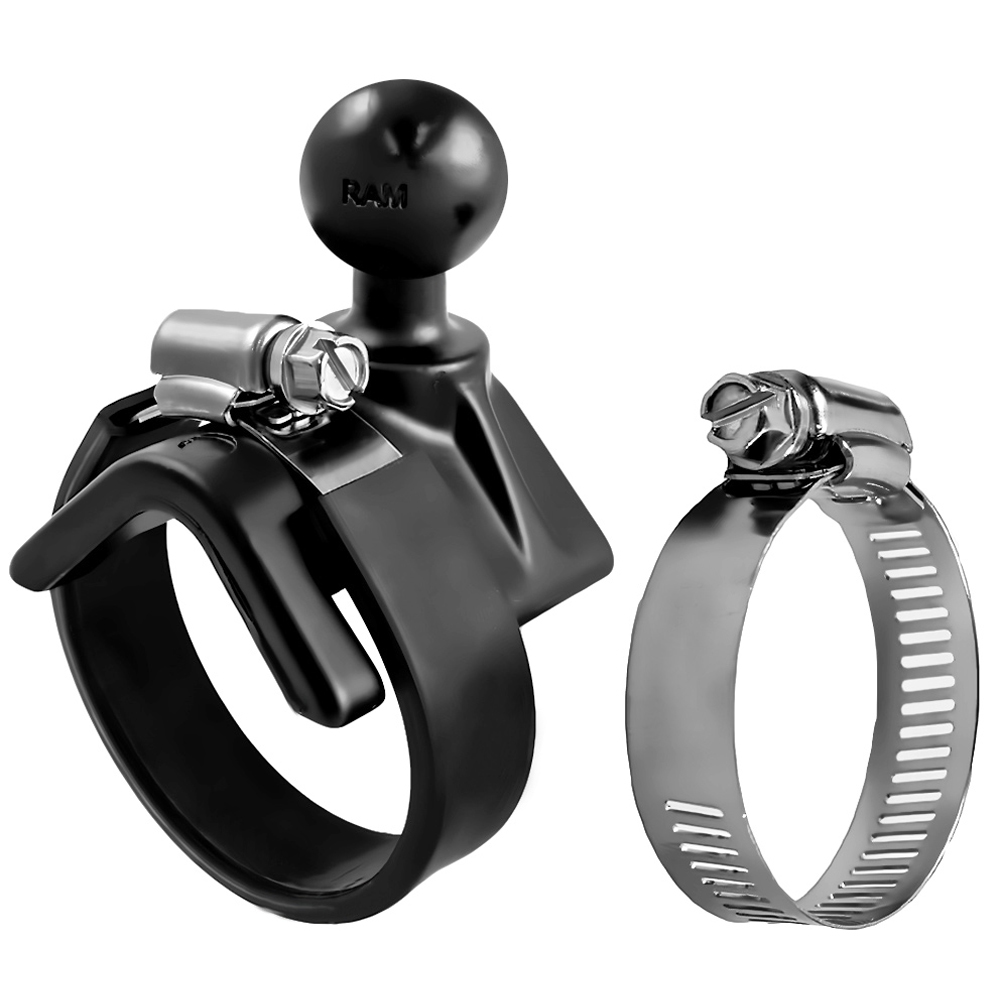

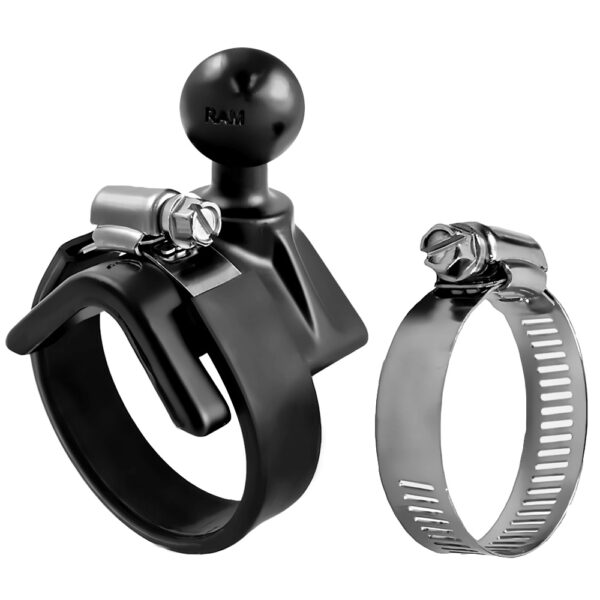

RAM V-Base Rail Yoke Clamp Mount f/Beechcraft Airplanes
Part #: RAM-B-108BU
Accommodates rails from 1.0″ to a maximum of 2.1″ in diameter. To mount the RAM-B-108BU base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail. The RAM-B-108BU is an alternative mounting base for Breechcraft airplanes with a “throw over yoke”.
Material:
Powder Coated Marine Grade Aluminum
Ball Size:
1″ Rubber Ball “B” Size
Included in Kit:
- (1) QTY 6″ long metal strap
- (1) QTY 8″ long metal strap
- (1) QTY 5.5″ rubber strip that supports the metal straps to avoiding scratching or marking of the rail
Note:
The “U” in the part number reflects product packaged in poly bag.
