Description

X-Grip® Phone Mount with 9mm Angled Bolt Head Adapter

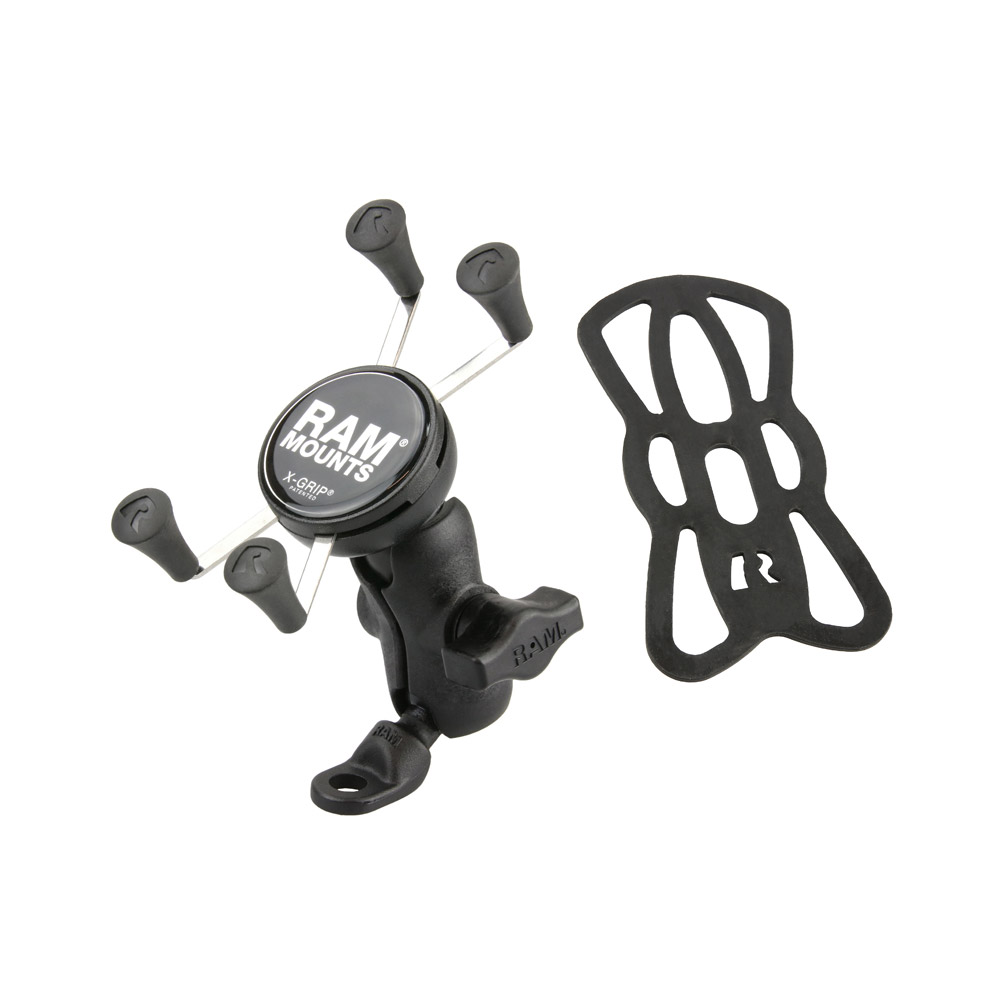

The RAP-B-272-A-UN7U consists of an angled base with 9mm hole, short composite double socket arm and universal spring loaded RAM® X-Grip® cradle for cell phones. The angled base is often used on motorcycles, attaching to the mirror frame, the main brand of bike for this part is BMW. The included RAM® X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded RAM® X-Grip®cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today’s vehicles, the RAM® X-Grip® is the cell phone cradle evolved. The RAM® X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Cradle Dimensions:

• Minimum Width = 1.875″ (Minimum Height = 4.25″)
• Maximum Width = 3.25″ (Minimum Height = 2.25″)
• Depth = 0.875″

Material:

• High Strength Composite, Marine Grade Stainless Steel Components, and Powder Coated Marine Grade Aluminum

Ball Size:

• B Size 1″ Rubber Ball

Note:

• Part number reflects product packaged in clear clam shell for store shelf display. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.
