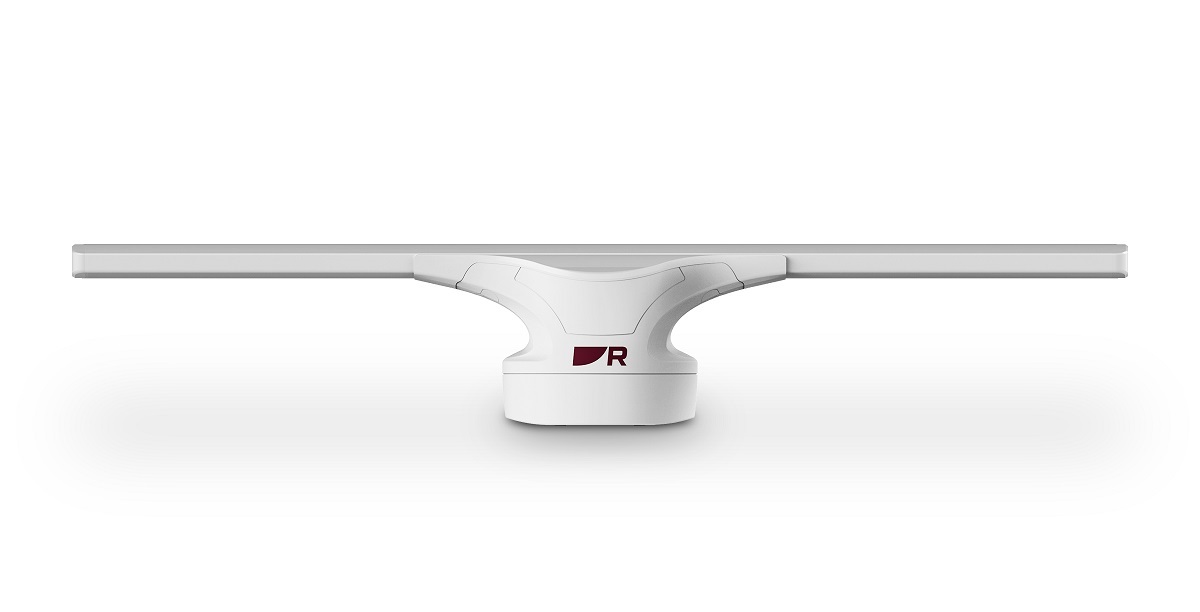

Raymarine 110 Watt Cyclone Pro With 6′ Antenna 15m Cables

RAYT70496
Raymarine

$9749.99

(MRP Pricing)

3 in stock
Qty :

Description

Raymarine 110 Watt Cyclone Radar with 6′ Antenna

Model: T70496

  • Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar
  • At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options.
  • Innovative pedestal design conceals cable connections for a cleaner installation
  • Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time
  • Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety.
  • Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard.
  • RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
  • Performance tuned for locating sea birds
  • Enhanced Cyclone Bird Mode using CHIRP pulse compression technology

The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.

Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and high speed 60 rpm imaging.

Specifications

Supply voltage (Using VCM100) Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc
Power consumption (typical) 95 Watts
Power consumption (max) 195 Watts
Power consumption (standby) 28 Watts
Maximum range scale 96 nm
Boot up time 40 seconds
Standby to transmit less than 5 seconds
Waterproof rating IPX6
Operating temperature range -25°C to +55°C (-13°F to 131°F)
Humidity Up to 93% at 40°C (104°F)
Maximum wind speed 100 Kts
Power connection 1x Power connector
Data connection 1x RayNet connector
Transmitter frequency 9370, 9400, 9430 MHz (User Selectable)
Peak power output 110 Watts
Receiver characteristic Linear
Receiver noise Less than 5 dB
Pedestal
Dimensions 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna)
Weight 16 Kg
Antenna
Beamwidth (vertical) 25 degree
Beamwidth (horizontal) 1.32 degree
Polarization Horizontal
Rotation speed 12, 24, 36, 48, 60 rpm
Length 1945 mm / 76.57 in
Weight 12 Kg / 26.45 lb

What’s in the Box:

  • E70621 110 watt pedestal
  • E70630 6′ Antenna
  • A80653 15m Power cable
  • A8058 15m Data Cable

Additional information

Weight 83.00 lbs
Model Number T70496
UPC 723193836668
