Description

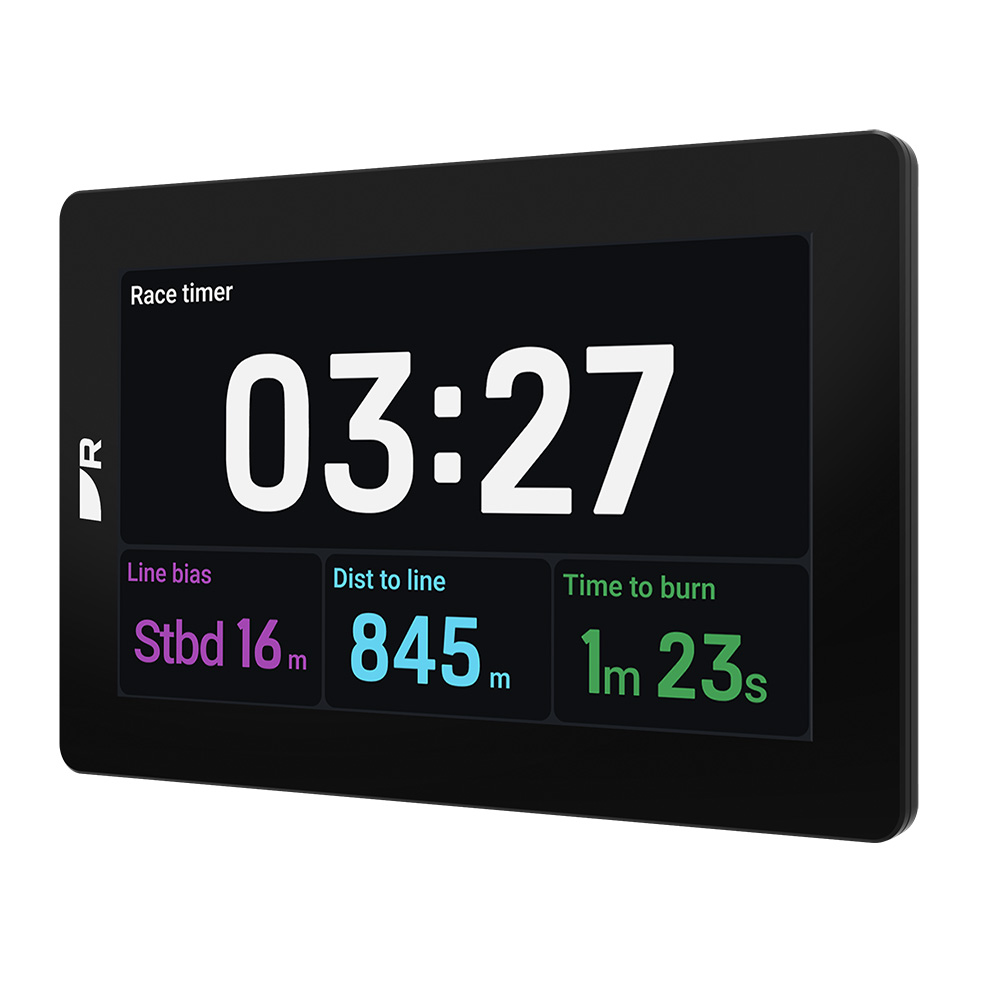

Alpha 7 Performance Display

Alpha Performance Displays are the most versatile marine data displays. High-bright touchscreen instruments with wide view angles offer excellent visibility from anywhere onboard. Alpha’s extensive data dashboard options and widgets make critical sailing, navigation, and engine data easy to interpret at a glance.

Alpha & Axiom Systems

Alpha Performance Displays are companion instruments for Raymarine Axiom chartplotters. A simple RayNet Ethernet cable between Axiom and the Alpha display gives Alpha access to Axiom’s connected transducers and NMEA2000/SeaTalk NG devices.

Once paired with an Axiom network, users can customize and configure your Alpha display into a powerful performance sailing, navigation, and engine data instrument.

High Visibility

Polarized sunglass-friendly displays with extra wide viewing angles, viewable on the mast or remote location

Rugged Build

Tested to the extreme and built with our exclusive HydroToughTM nano-coating that repels water and oils for reliable touchscreen control

Fully Scaleable

A single power and data cable for fewer cables running through the deck and mast. Support for daisy-chaining up to 4 Alpha displays

Tactical Awareness

Intuitively designed graphical instrument displays, aimed at enhancing tactical awareness and facilitating better decision-making on the water.

SailPoint™ Target

SailPoint™ mode provides you with a visual reference of the target wind angle, so you achieve your maximum VMG upwind or downwind

Dynamic Wind

The dynamic wind performance display provides automatic zoom to the most critical part of the instrument display based on wind direction.

Other Features:

• 7 in. bright, high-contrast sailing instrument display
• Power cables sold separately

What’s in the Box:

• Alpha 7 performance display – 2 x mounting brackets
• Suncover
• Waterproof gasket
• Documentation pack
• 4 x Threaded studs, M4 x 40 mm
• 4 x Thumb nuts

Physical Specifications:

• Width: 120.1 mm (4.72 in.)
• Height: 188.4 mm (7.42 in.)
• Depth: 32 mm (1.26 in.)
• Post Separation Distance: 5.71 mm (0.22 in)
• Weight: 0.72 kg (1.59 lbs)

Power Specifications:

• Nominal Supply Voltage: 12 V / 24 V dc
• Operating Voltage Range: 10.8 V to 32 V dc
• Current: 0.84 A (nominal) @ 12 V dc / 0.43 A (nominal) @ 24 V dc
• Power Consumption: 10 W (maximum)
• Inline Fuse Rating: 8 A
• Thermal Breaker Rating: 8 A

Network Specifications:

• Axiom: The Alpha Performance Displays require an Axiom Chartplotter in order to operate.
• Data Connections: 1 x Daisy-chain connector & 1 x Power / RayNet Ethernet connector

Environmental Specifications:

• Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)
• Storage Temperature Range: -30°C to +70°C (-22°F to +158°F)
• Relative Humidity: 93% Max
• Waterproof Rating: IPx6 and IPx7

Display Specifications:

• Display Screen: 7 in. IPS TFT LCD
• Brightness / Luminance: 1500 nits / 1500 cd/m2
• Viewing Angles: Portrait — 85 + / 85 + & Landscape — 85 + / 85 +
• Resolution: 1024 (H) x 600 (V)
• PPI (Pixels Per Inch): 7 in. display — 170 PPI
• Color: 24-bit color (16.7 million colors)
• Refresh Rate: 60 Hz

Conformance:

• Europe, Australia & New Zealand: EN 60945:2002
• Canada: ICES-003
• USA: CFR47 Part 15
• Japan / China: IACS section E10
• Product Markings
• UKCA, CE, Australian Tick, WEEE Directive, Industry Canada

Instrument Function = NONE | Screen Size = 7" | Shape = Rectangular | Transducer Type = NONE
