Description

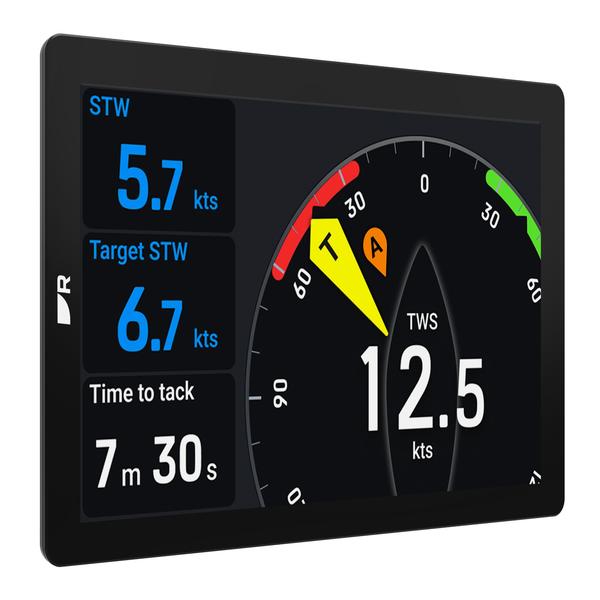

Raymarine Alpha 9 9″ Pewrformance Display
Model: E70650
- Customizable sailing, navigation, and engine instrument displays.
- SailPoint™ mode provides you with a visual reference of target wind angle, so you achieve your maximum VMG upwind or downwind.
- Polarized sunglasses-friendly displays with extra wide viewing angles, viewable on the mast or remote location.
- Tested to the extreme and built with our exclusive HydroTough™ nanocoating that repels water and oils for reliable touchscreen control.
- Landscape or portrait mounting option.
- Single power and data cable** for fewer cables running through the deck and mast.
- Support for daisy-chaining up to 4 displays.
- Auto-dimming through an integrated ambient light sensor.
- Lockable touch screen with remote control from Axiom.
- Designed to network with Axiom chartplotters for all instrument data, transducer data, and performance sailing calculations.
The Alpha series are high-visibility touchscreen displays with fully customizable marine instrument data and graphic displays to help you make smarter sailing decisions. Designed for helm or mast mounting, the Alpha Series is customized and controlled via its touchscreen and controlled remotely from a networked Axiom Chartplotter*.
* The Alpha Performance Display requires a Axiom Chartplotter (on Lighthouse 4.5 software or later) connected on the Raynet network. ** Power and data cables not included and must be purchased separately to match the installation confi guration.
Specifications
| Power | |
| Nominal supply voltage: | 12 V / 24 V dc |
| Operating voltage range: | 10.8 V to 32 V dc |
| Power consumption: | Alpha 9: 12.27 W (maximum) @ 12 V dc / 12.51 W (maximum)@ 24 V dc |
| Enviromental | |
| Operating temperature range: | -25°C to +55°C (-13°F to +131°F) |
| Waterproof rating: | IPx6 and IPx7 |
| Display | |
| Type: | Alpha 9: 9" IPS TFT LCD |
| Brightness / Luminance: | 1500 nits / 1500 cd/m2 |
| Viewing angles: | Portrait: 85 + / 85 + Landscape: 85 + / 85 + |
| Resolution: | Alpha 9: 1280 (H) x 720 (V) |
| Aspect ratio: | Alpha 9: 16 : 9 |
| PPI (Pixels Per Inch): | Alpha 9: 163 PPI |
| Colours: | 24-bit colour (16.7 million colours) |
| Refresh rate: | 60 Hz |
| Connections | |
| Data connections: | 1x Daisy-chain connector and 1x Power / RayNet Ethernet connector |
| Physical | |
| Dimensions W x H x D | 5.86in x 9.29in x 1.34in |
| Weight | 2.6lbs |
What’s in the Box:
- Alpha 9 Display
- Suncover
- Waterproof gasket
- Documentation
- m4 x 40mm studs x 4
- thumb nuts x 4
- mounting brackets x 2
