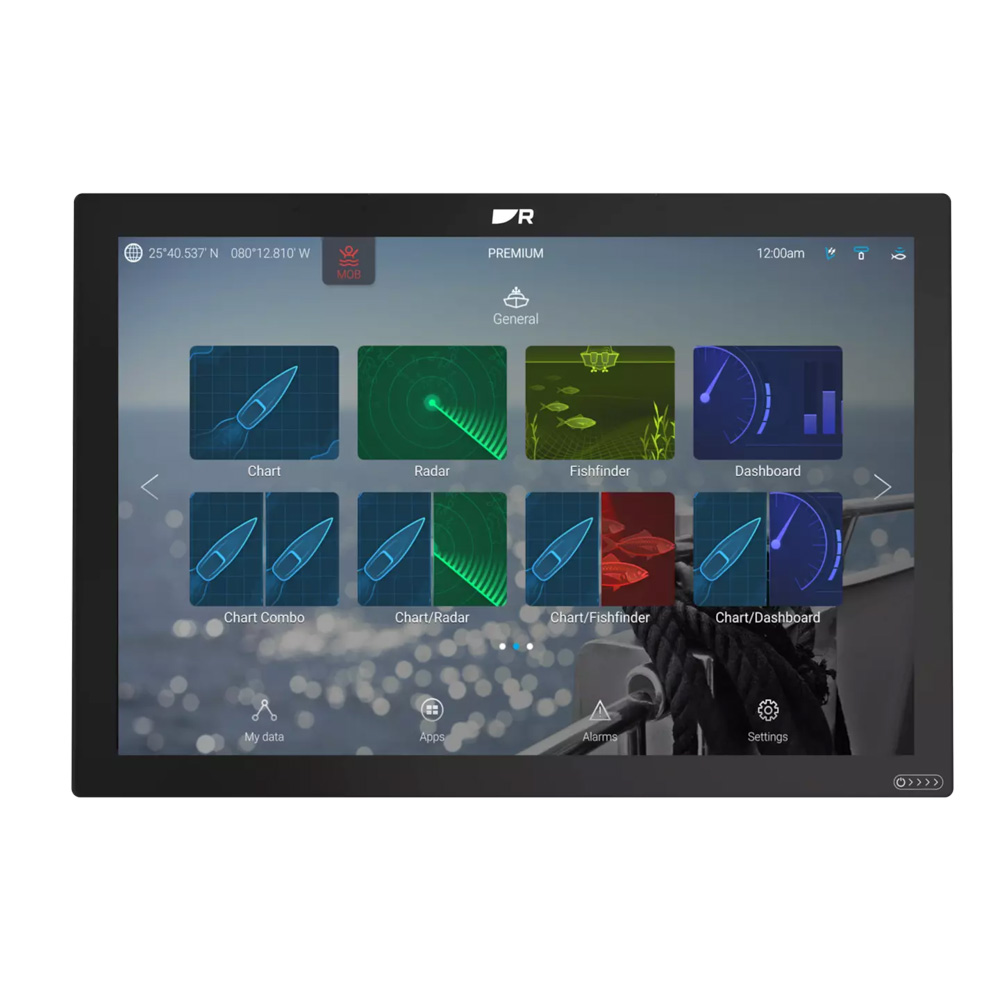

Axiom 2 XL 24" MFD Kit with USB Card Reader

The flagship of the Axiom family, Axiom 2 XL, delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.

Features:

• 6 Core Processor – Get underway and do everything faster
• Ample Storage – 64 GB for waypoints, apps, and LightHouse Charts
• Smooth Video and Faster Charts – Faster video frame rates and 30% faster chart rendering
• Power That Pushes the Limits – Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.
• Ready for all Conditions – Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.
• Smart Backlighting – Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.
• Remote Control – Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.
• Unleash the Power of Axiom 2 XL – Three RayNet Ethernet POE ports, NMEA2000, HDMI input, HDMI Output, USB, and remote keypad options give you the power to design an Axiom 2 XL glass bridge with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.

Technical Specifications:

• Dimensions – 15.23" (H) x 22.77" (W) x 6.98" (D)
• Weight – 24.9 lbs
• USB Connection – USB-A: Touch input, USB-B: Touch output
• Accessory Connection – USB Micro B
• GPS Antenna Connection – TNC type connector
• External Storage – Remote card reader required
• Ethernet Connection – PoE RayNet (10/100/1,000 Mbits/s) x 3
• HDMI Connections – HDMI in, HDMI out
• Audio Output – Left and Right RCA connectors via Power/Video/Audio cable.
• Analog Video Connections – Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2)
• NMEA 0183 Support – Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721)
• NMEA 2000 Connection – DeviceNet connector
• Wireless Connections – Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n
• External Alarm Connection – Bare-ended wires x 2
• Internal Storage – 64GB solid state
• Power Consumption @ 12VDC – 92.5W
• Power Consumption @ 24VDC – 77.96W
• Off Current @ 12VDC – PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W)
• Off Current @ 24VDC – PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W)
• PoE Operating Voltage Range – 9.5VDC to 32VDC
• Current – 10.03A
• Operating Voltage Range – 8VDC to 32VDC
• Fuse Rating – 15A
• Nominal Supply Voltage – 12VDC/24VDC
• LEN (NMEA 2000 Load Equivalency Number) – 1
• Resolution – 1920 x 1200 WUXGA
• Size (Diagonal) – 24"
• Illumination – 1300 nits / 1300 cd/m2
• Viewing Angle – Top 89° / Bottom 89° / Left 89° / Right 89°
• Ratio – 16:10
• Type – IPS (In-Plane Switching)
• Color Depth – 24-bit
• Number of Simultaneous Touches – 2
• Operating Temperature – -25°C to +55°C (-13°F to 131°F)
• Storage Temperature – -30°C to +70°C (-22°F to 158°F)
• Relative Humidity – up to 93% @ 40°C (104°F)
• Waterproof Rating – IPx6, IPx7

What's In The Box?

• MFD (Chartplotter)
• Mounting gasket tape
• Rear mounting bars (x2)
• Mounting bar fixings (M5x20 pozi countersunk) (x4)
• Mounting fixings – Bolts (M5x35), Wavy washers (M5), Nuts (M5) Mounting feet (x 4)
• Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
• Documentation
• DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
• RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
• Power/Video/Audio cable 1.5 m (4.92 ft) right-angled
• Auxilary Alarm
• RCR-SDUSB – Card Reader + USB
• MFD VideoIN/Alarm Cable – 2M – A80235
