Description

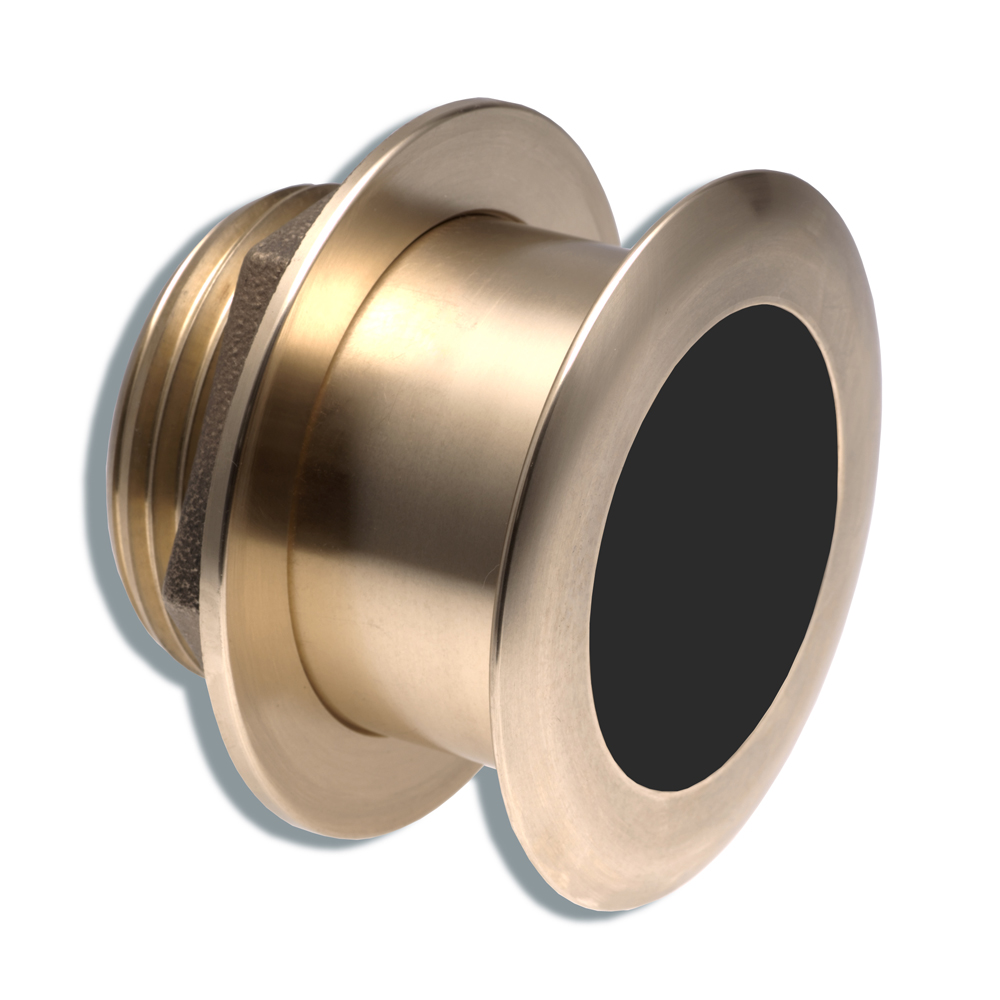

B175L Bronze Low Profile Thru Hull 20° Tilted Element Transducer 1kW

Features

• Material: Bronze

• For use with CP450C or CP470 Chirp Sonar Module

• Power (RMS): 1Kw

• Max Depth(ft): 2,500

• Frequency (khZ): 40-60

• Beam Width(L/H): 32°-21°

• Records: Depth / Temperature

• Approved Hull Material: Fiberglass / Wood

• Cable Length (Ft/M): 33ft / 10M

• Supported Deadrise / Transom Angles: 16-24° Deadrise

• Note: Using a Single B175 or B75 requires the A80328 Single Operation Cable

Chirp = Low | Temperature = Yes | Pins = NONE | Mounting Style = Thru-Hull | Imagining = Standard | Cable Length (Feet) = NONE | Speed Included = No
