Description

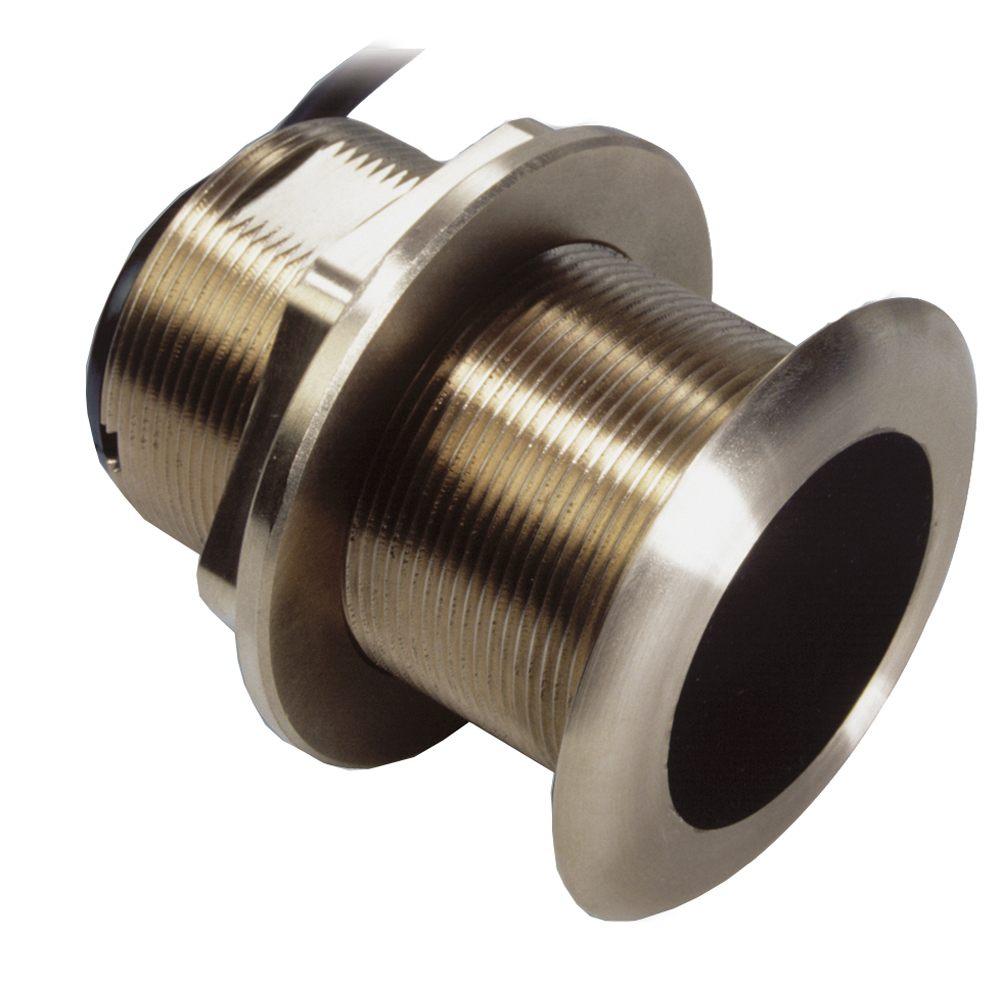

B60 Tilted Element™ 20°

20° titled version is designed for 16° – 24° deadrise angles

For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300

The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

• Depth/Temp
• 50/200 kHz
• 600w RMS
• Mid-performance
• Bronze

Owner Manual

Chirp = No | Cable Length (Feet) = 33' | Temperature = Yes | Speed Included = No | Pins = NONE | Mounting Style = Thru-Hull | Imagining = Standard
