Description

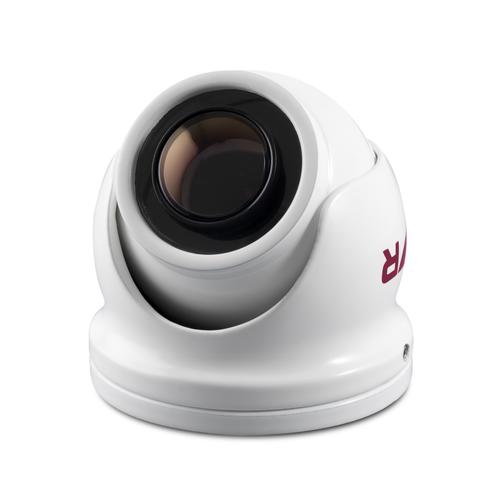

Raymarine CAM300 Video Camera
Model: E70660
- View up to 4 CAM300 video streams simultaneously on single Axiom display
- 3MP CMOS sensor delivers up to 1080p resolution
- Ultra-compact size blends seamlessly with your vessel
- Built-in infrared emitters for excellent near-field low light visibility up to 33 ft (10 meters)
- Image flip and invert functions for ball-up/ball-down installation and reverse video system applications
- Easy to install with either direct 12-volt connection or single cable Power over Ethernet (POE
- Rugged IP66 enclosure for below and above deck marine installations
The CAM300 mini day/night IP camera is a wide field-of-view visible camera designed for Raymarine Axiom chartplotters. Equipped with an HD video sensor, the CAM300 transforms Axiom into a powerful onboard video observation system. Use the CAM300 to monitor blind spots, check in on the crew, or watch and record all fishing action from the helm. Combine the CAM300 with the Raymarine AR200 sensor and make smarter navigation decisions using ClearCruise augmented reality to overlay AIS targets, waypoints and chart objects on the Axiom video display.
Specifications
| POWER | |
| Nominal supply voltage | 12 V DC |
| Operating voltage range | 10.8 V DC to 15.6 V DC |
| Power consumption | 1 W Nominal @ 12 V DC / 1.8 W Maximum (LEDs ON) |
| Power connection | C power cable or POE (Power over Ethernet) |
| ENVIRONMENTAL SPECIFICATION | |
| Operating temperature | -30C to +60C (-22°F to 140 °F) |
| Waterproof rating | IP66 |
| PHYSICAL SPECIFICATION | |
| Dimensions | Base diameter: 59.5 mm (2.34 in), Height: 52.9 mm (2.08 in) |
| Weight | 0.420 kg (0.926 lbs) |
| VIDEO | |
| Video Processing | H.264 Codec / Dual Stream |
| Illumination | 6 x 850nm Infrared – 10 meter range |
| Frame Rate | 25 fps |
| Resolutions | 2304 x 1296 (3MP) Max |
| ONVIF Conformance | Profile S |
| Sensor / DSP | 1/4" CMOS Sensor |
| Field of View | 1.8mm Standard (160° HFOV x 130° VFOV) |
| COMPATIBILITY | |
| Axiom display compatibilty | Units running LightHouse 4.2 or later |
What’s in the Box:
- CAM300 — includes an approximate 670 mm (2.2 ft) fitted cable, featuring an RJ45 (male) and power connector
- Mounting screws (3 x)
- Documentation
- Hex wrench (Allen key)
- Waterproof gasket
