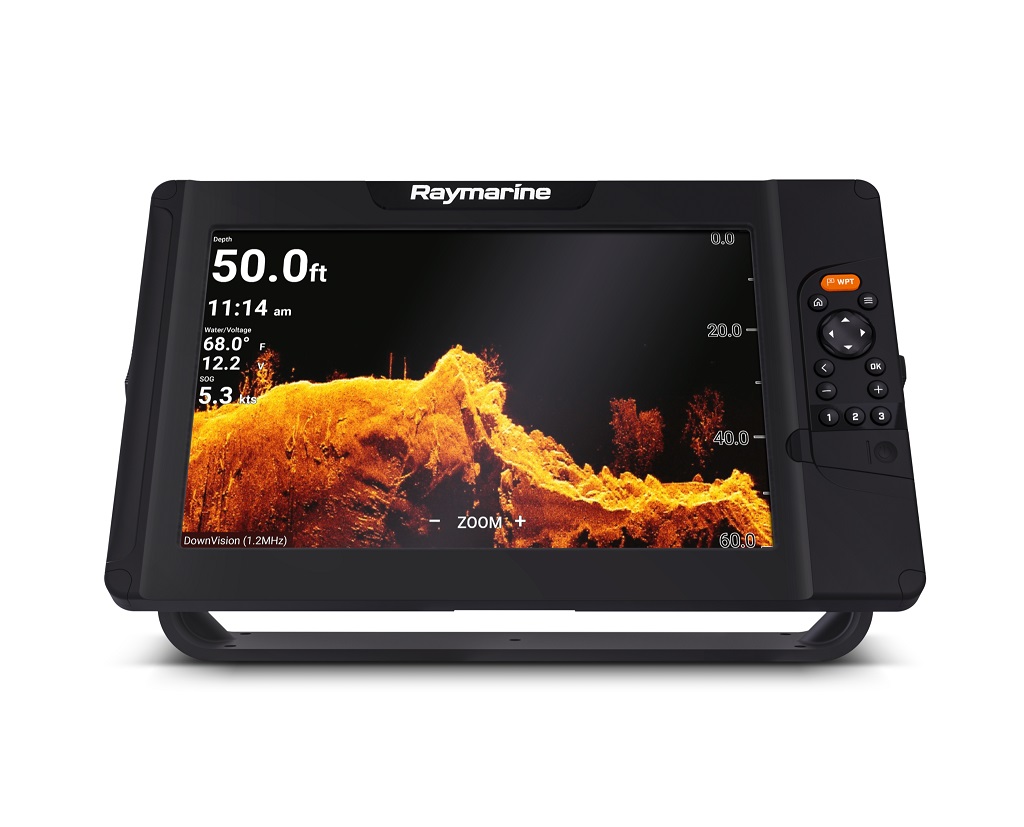

Raymarine Element 12 HV Combo w/LNC3 US Chart w/Fishing Hot Spots

Model: E70536-00-102

• High-visibility sunlight viewable 12" display
• Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars
• Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
• Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
• 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100’ while 350kHz Down and SideVision delivers photo-like imaging up to 600’
• Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness
• Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots
• Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live support
• User-programmable keys allow quick access to most-used configurations
• Comes with Raymarine LightHouse NC2 with Fishing Hot Spots Chart.
• Supports Navionics, C-MAP and other regional charting options
• NMEA2000 networking for VHF, engine, tanks, and heading sensor integration

Knowledge is power—and the Element™ CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision™ 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity. And the power of Element doesn’t stop there—an onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fish—not the helm. An oversized waypoint key puts you on your favorite spots, and Element’s RealBathy™ personal depth map generator lets you make your own high definition bathymetric maps on the fly.

Specifications

What’s in the Box:

• Element 12 HV
• Trunnion bracket with mounting hardware
• Surface mount kit with mounting hardware
• Sun cover
• Power / NMEA2000 1.5m cable
• Documentation pack
• LightHouse NC3 United States Chart with Fishing Hot Spots

,

Raymarine Element 12 HV Combo w/LNC3 US Chart w/Fishing Hot Spots

Model: E70536-00-102

• High-visibility sunlight viewable 12" display
• Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars
• Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
• Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
• 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100’ while 350kHz Down and SideVision delivers photo-like imaging up to 600’
• Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness
• Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots
• Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live support
• User-programmable keys allow quick access to most-used configurations
• Comes with Raymarine LightHouse NC2 with Fishing Hot Spots Chart.
• Supports Navionics, C-MAP and other regional charting options
• NMEA2000 networking for VHF, engine, tanks, and heading sensor integration

Knowledge is power—and the Element™ CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision™ 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity. And the power of Element doesn’t stop there—an onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fish—not the helm. An oversized waypoint key puts you on your favorite spots, and Element’s RealBathy™ personal depth map generator lets you make your own high definition bathymetric maps on the fly.

Specifications

General Specifications
Display Size	12.0″ Optically Bonded LCD
Resolution	1280 x 800 WXGA
Display type	Non-Touch
Brightness	1,500 nits
Viewing Angle	Top 89° / Bottom 89° / Left 89° / Right 89°
Physical
Overall Dimensions	14.1 x 8.5 x 2.4 inches
Water Ingress Protection	IPx6 and IPx7
Operating Temperature Range	-25°C to + 55°C (-13°F to 131°F)
Storage temperature range	-30°C to +70°C (-22°F to 158°F)
Power
Voltage	12V DC (8V to 16V DC)
Power Consumption (max 12V DC)	25 Watts
Sensors
GNSS / GPS	Built-in GNSS Receiver: GPS/GLONASS
Sonar Type (Built-in)	Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision™ 3D (Standard and Hyper)
Sonar Connection	15 pin HyperVision™ type connector
Sonar Depth	CHIRP Sonar = 274m (900 feet)
Networking
Ethernet	N/A
NMEA0183	N/A
NMEA2000	1 x NMEA2000 port (DeviceNet microC)
Supported NMEA2000 Networking	INPUT: NMEA2000 Compatible Engines (Max 2), NMEA2000 Compatible Tank Sensors (Max 4), Heading Sensor (for Chart Stabilization) OUTPUT: GPS (for VHF Distress and DSC)
SeaTalkng	Requires A06045 DeviceNet female (F) adapter cable – 400mm
USB	N/A
Wi-Fi	WiFi – 802.11 b / g / n
BlueTooth	Bluetooth 4.0 + Low Energy + Power Class 1.5
Other
Cartography	Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
Tides & Currents	Requires LightHouse LNC2, Navionics or C-MAP
Waypoint / Routes / Tracks	10,000 wpts / 200 wpt groups / 150 rts – 250 wpt max / 16 tracks – 10,000 max trk pts
Internal Memory	8GB Solid State
External Memory	1 x microSD slots – microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)

What’s in the Box:

• Element 12 HV
• Trunnion bracket with mounting hardware
• Surface mount kit with mounting hardware
• Sun cover
• Power / NMEA2000 1.5m cable
• Documentation pack
• LightHouse NC3 United States Chart with Fishing Hot Spots
