Description
Raymarine EV100 Tiller Pilot
Model: T70153
- Rated for tiller-steered sailboats up to 13,200 lbs (6000kg) displacement
- Designed for cockpit installations.
- Tiller drive unit can be easily removed and stored.
- SeaTalkNG/NMEA2000 for networking with sailing instruments and chartplotters
- Requires no complicated setup or autopilot calibration.
- Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics

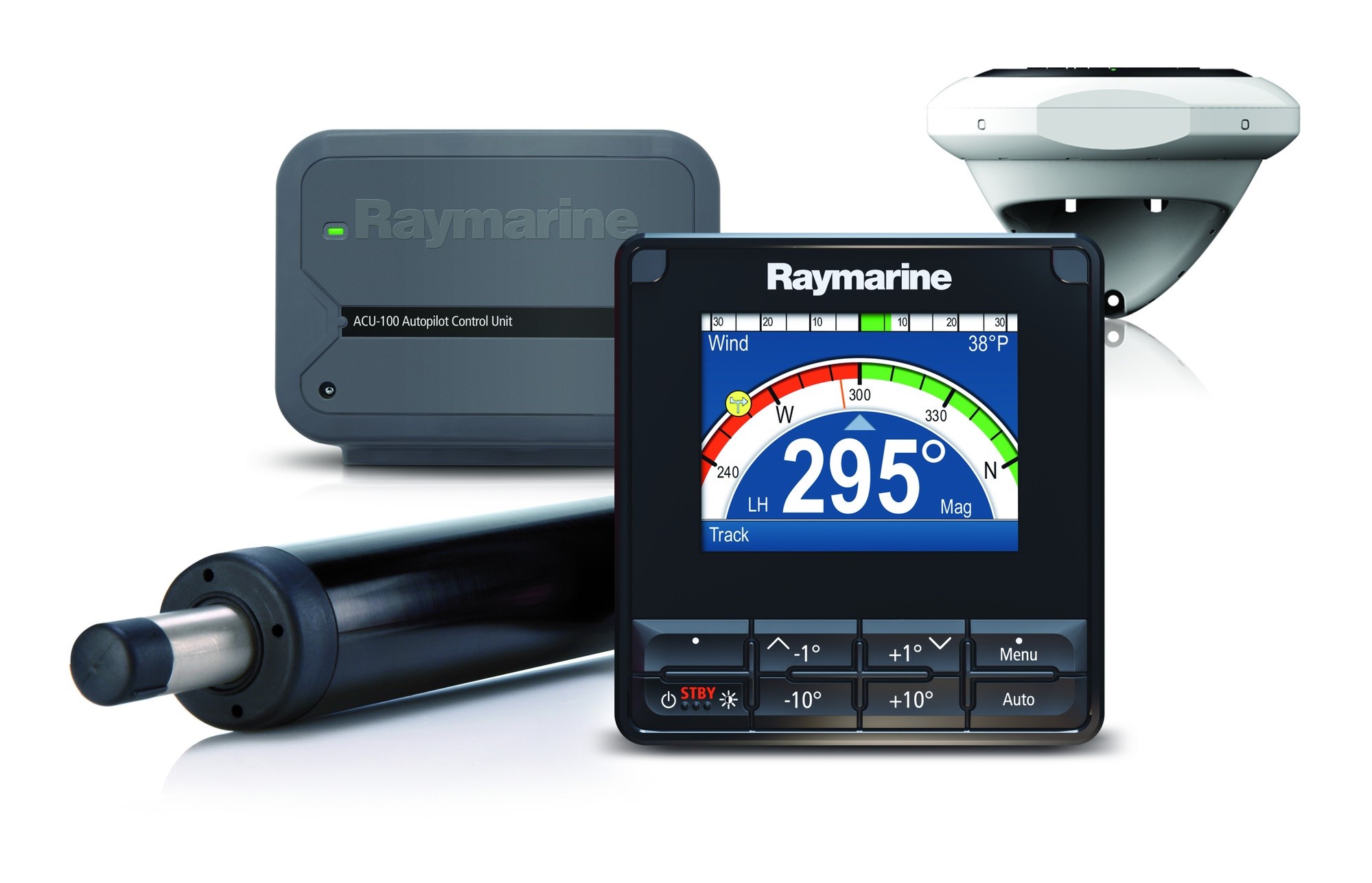

The EV-100 Tiller Pilot is a complete autopilot solution for tiller-steered sailboats. Designed for DIY installations, the EV-100 Tiller Pilot’s externally mounted drive mounts in the cockpit, attached to the tiller. The EV-100 Tiller Pilot delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-100 actuator control unit. EV-100 Tiller Pilot systems include a p70s autopilot control head.
What’s in the Box:
- E70096 EV1 Sensor Core
- E70098 ACU-100
- E70328 p70s Control
- Q047 Tiller Drive
- R70160 Cabling Kit
- D001 Tiller Pin (Pack of 2)
- D002 Mounting Socket (Pack of 2)
- M81181 Raypilot remote plug and socket assembly
