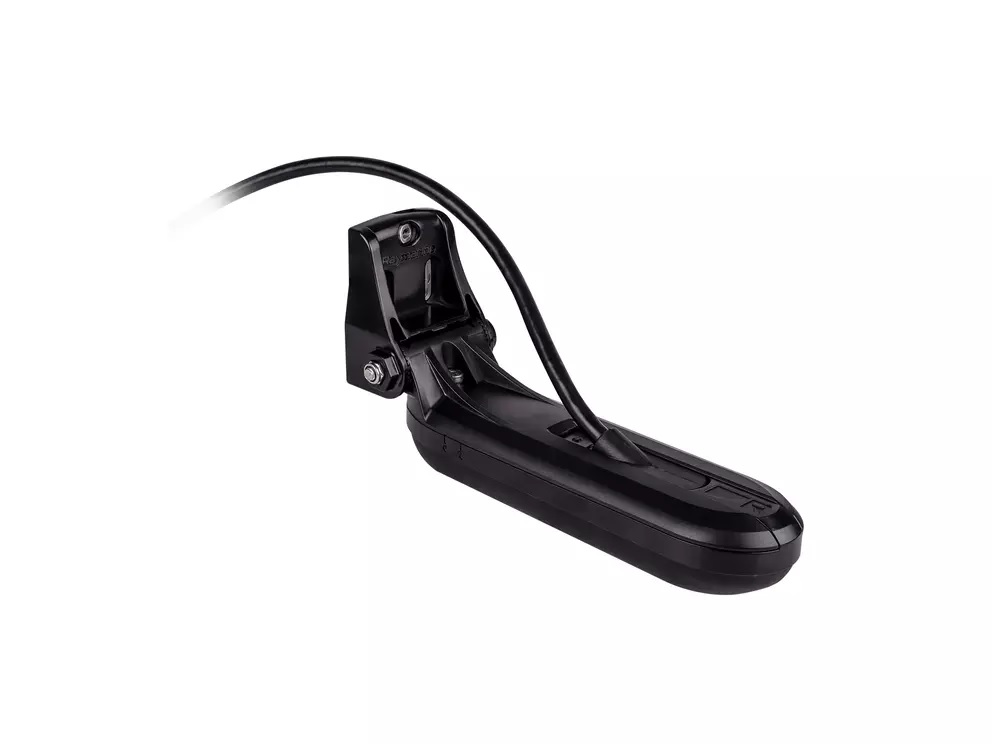

Raymarine HV-100.02 HyperVision Transom Mount Transducer
Model: E70643
Model: E70643
- Transom Mount
- Deadrise Angles: 0 – 90°
The HyperVision 3D transducer provides a multitude of frequencies all within a single housing. Capable of simultaneously supplying RealVision 3D, DownVision, SideVision and Conical High Frequency CHIRP, this is the only shallow-to-medium depth transducer you’ll ever need.
1.2MHz HyperVision DownVision and SideVision frequencies offer the utmost in clarity and lifelike sonar imaging.
Specifications
| Material | Plastic |
| Max Depth | 3D: 300 / Down: 600 / Port: 300 / Starboard: 300 / Conical: 900 |
| Frequency | 1.2 MHz CHIRP / 350 kHz CHIRP / 200 kHz High CHIRP |
| Beam Width | 3D: 180° / Down: 60° / Conical: 25° |
| Records | Depth / Temperature |
| Hull Material | Fiberglass / Metal |
| Cable Length | 19 Ft. / 6 M. |
| Dimensions | Length: 224.99 mm (8.86 in), Height: 112.69 mm (4.44 in), Width: 76.00 mm (2.99 in) |
What’s in the Box:
- E70643 HyperVision 3D transducer with 6 m (19.69 ft) fitted cable
- Transom bracket
- Bracket fixing screws (4.2×19 mm A4 stainless steel) x3
- M5x10 hex bolt (A4 stainless steel)
- M5 washer (A4 stainless steel)
- Hanger bracket
- Escutcheon plate (used when routing cable through transom or a bulkhead)
- Adjustment slot washers x2
- Escutcheon plate fixings (#8×13 SUS316) x4
- Cable clips x3
- M6x70 hex bolt (A4 stainless steel)
- M6 washer (A4 stainless steel)
- M6 locking nut
- Documentation
