Raymarine i60 Instrument DisplaysStylish displays for sailboaters!The new i60 instruments are designed to complement the all new Raymarine cSeries and eSeries multifunctional displays. Designed specifically for sailboaters, these stylish, dedicated-function instruments cover wind and close-hauled wind options in analogue and digital formats. Excellent viewing angles for both day and night conditions and simple, push-button controls make i60 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.

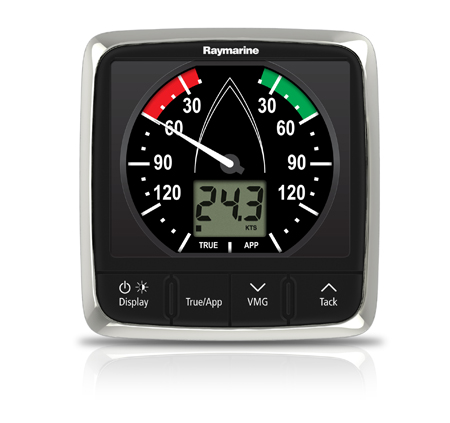

Raymarine i60 Instrument Displays
|
Models: |
i60 Wind |
i60 Close Haul Wind |
E70061 |
E70062 |
Nominal Voltage | 12V DC |
Operating Voltage
Range |
10 – 16V DC |
Power Consumption | typically <1W (display only) and 2.4W maximum with transducer connected |
Current Consumption | 45 to 65mA (display only) and 200mA maximum with transducer connected |
Operating Temperature Range | -20°C to +55°C |
Storage Temperature | -30°C to +70°C |
Relative Humidity | up to 93% |
Waterproofing Standard | IPX6 |
Connections | 2 x SeaTalkng and transducers |
Conformance | Europe 2004/108/EC |
