Raymarine Rotary Drive Type 2 – 12V

73052
Raymarine

$2269.99 $2090.28

0 in stock
Qty :
,

Description

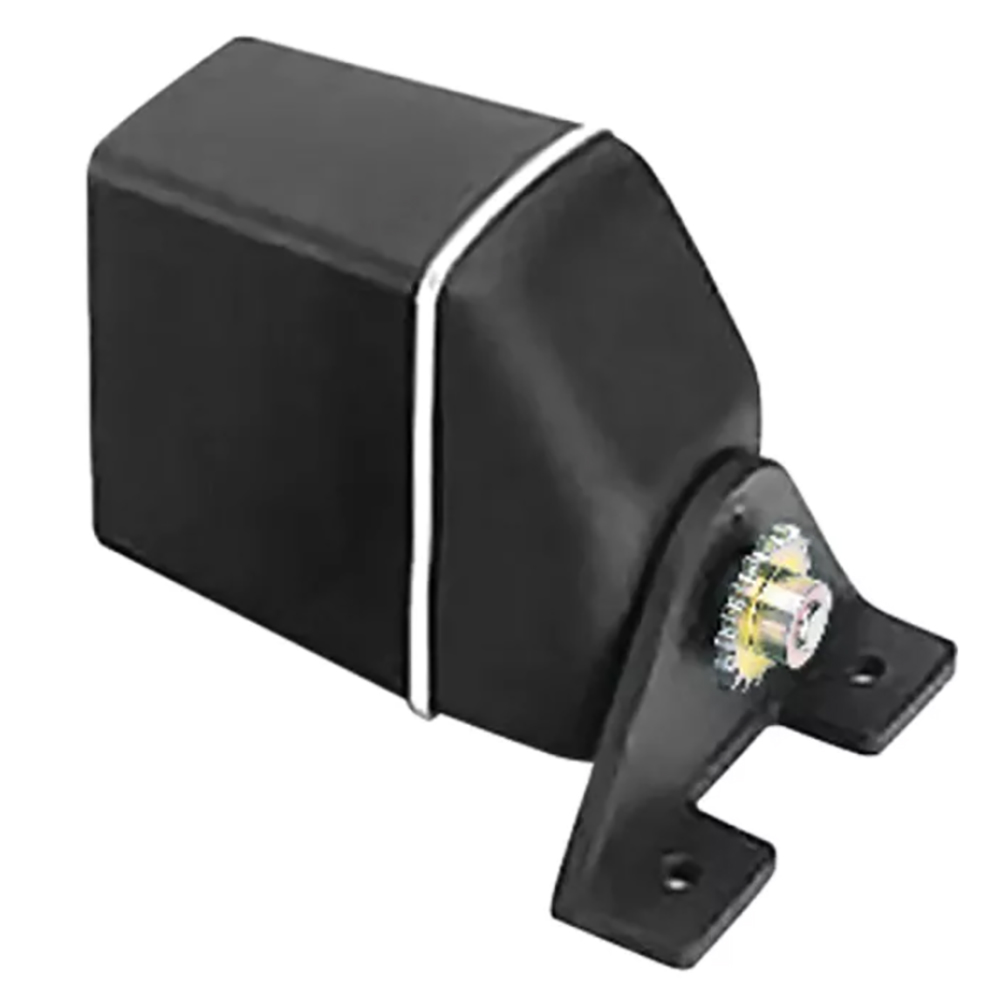

Rotary Drive Type 2 – 12V

The rotary drive is designed for power and sailboat systems that can be driven from the helm position through a chain and sprocket (e.g. cable and rod steering system). The outstanding design of the Raymarine rotary drive unit provides smooth, powerful autopilot controlled steering with quiet operation.

Optional drive sprockets and modification to the steering chain may be required.

Features:

  • Rotary Drive
  • Type 2
  • 12V

Specifications:

  • Maximum Boat Displacement: 20,000 kg
  • Peak Output Torque: 34 nm
  • Maximum Shaft Speed: 33 rpm
  • Recommended Hard-Over Time (no load): 10 seconds
  • Power Consumption: 60-84w
  • Corepack Used: ACU-400

Type = Pumps/Drives | Steering Type = NONE

Additional information

Weight 13.5 lbs
Dimensions 14 × 11 × 7 in
Model Number M81136
UPC 023193811369
