Description

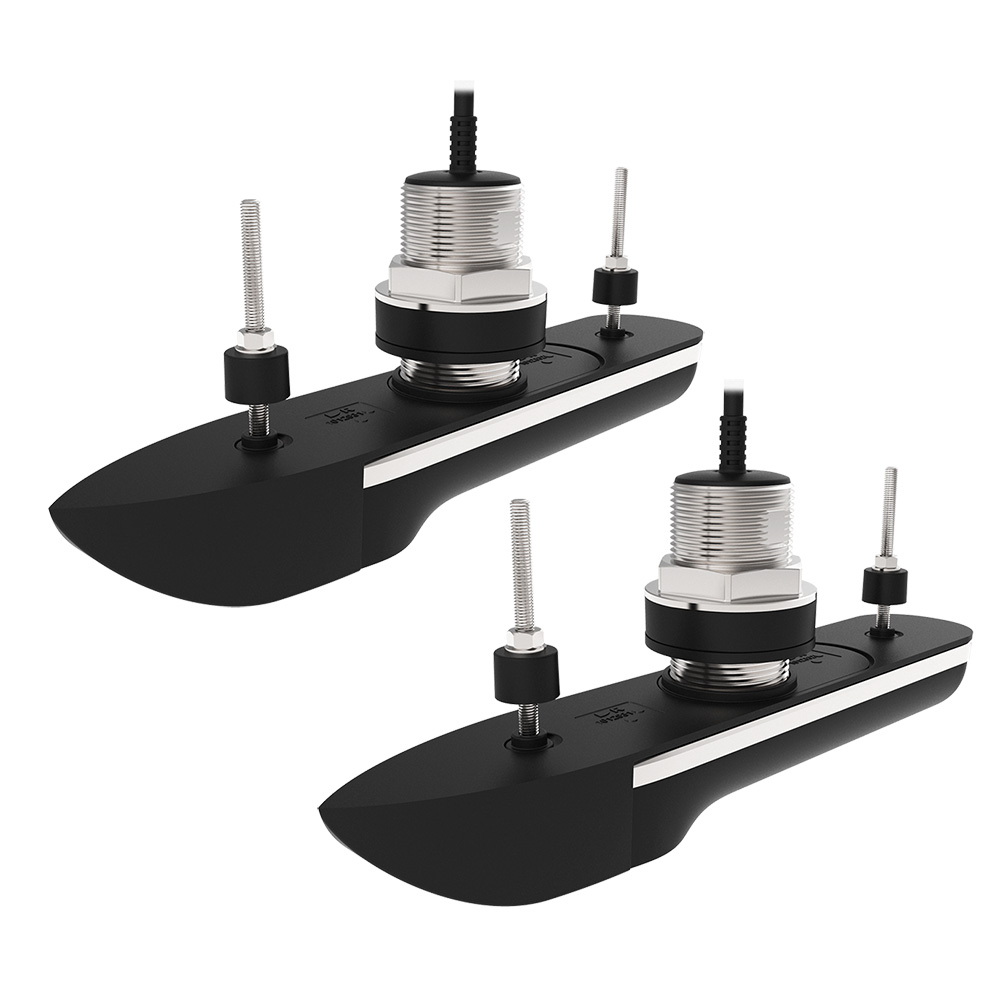

RVM-420 Stainless Steel Thru-Hull Pair, 20 Degree Deadrise & 10M Cable
The RVM-400 series transducers feature DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. The RVM-400 series also has a built-in fast-response water temperature sensor for quick, accurate readings.
The RVM-420 is a port and starboard transducer pair designed for boats with 15° to 25° of deadrise. Each transducer element is tilted at 20° to compensate for the hull deadrise.
The RVM-420 transducer pairs feature titled offset sonar elements inside their surface mount housings. The tilted elements ensure the sonar’s beam patterns are correctly aligned for maximum performance while eliminating the drag and turbulence associated with a fairing-blocked transducer installation. Bundled transducer pairs include a Y-Cable harness that internally joins the two transducers together and an 8-meter transducer extension cable.
*Works with Axiom 2 Pro RVM series, and RVM1600 Sounder Module
Features:
- 600-Watt traditional CHIRP
- High-performance Down and SideVision ceramics
- High-speed housing with isolation plate
- 10M Cable
- RVM-420 port and starboard pair accommodates hulls with a deadrise between 15° and 25°
Cable Length (Feet) = NONE | Chirp = NONE | Imagining = NONE | Mounting Style = NONE | Pins = NONE | Speed Included = NONE | Temperature = NONE
