Description

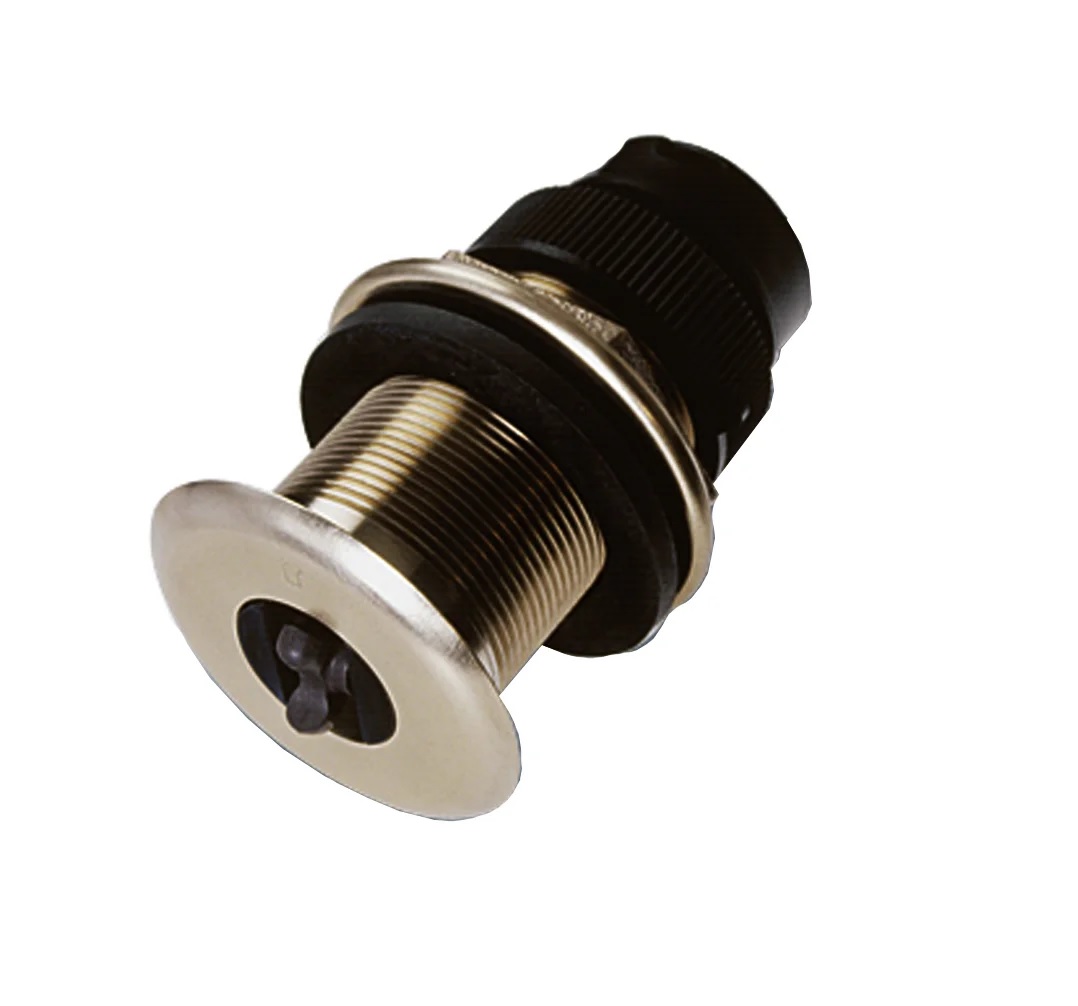

Raymarine ST900 Speed and Temperature Low Profile Bronze Housing
Model: E70686
- Speed and fast-response water-temperature
- Best-in-class speed range from 0.3 to 45 knots (.34 to 52 MPH/.55 to 83 KPH)
- Analog output
- Retractable insert in a low-profile plastic housing with a water valve
- ST900—Retrofits into Airmar P120 and B120 housings
Speed performance has been taken to the next level with the introduction of the ST900 Speed/Temperature sensor. Featuring the new Gen2 Paddlewheel, the ST900 out-performs all other paddlewheel sensors for responsive startup and linearity. The Gen2 Paddlewheel begins delivering accurate speed reporting as low as 0.3 knots and maintains smooth speed output through 45 knots.
These low-profile housings are nearly flush and minimize drag with only 5 mm (3/16″) extending outside the hull. The housing has a valve assembly that helps to minimize water ingress in the bilge when the sensor is removed for routine maintenance of the paddlewheel.
Airmar’s new, next-generation paddlewheel design delivers industry-leading performance for start-up responsiveness and linearity throughout the speed range. Gen2 paddlewheel maintains the top speed performance Airmar is known for and adds start-up speed performance that beats all other available paddlewheels. The Gen2 paddlewheel is the most sensitive and accurate paddlewheel available for sailing and power boats.
Specifications
| Cable-Length | 13.7m |
| Functions | Speed, Temperature |
| Hole Size | 51 mm (2″) |
| Housing | Bronze |
| Mounting Style | Low Profile Thru-Hull |
| Protocol Output | Analog |
| Retractable housing | Yes |
| Retrofits | AIRMAR P120, B120 housings |
| Speed Range | 0.3 to 45 knots (.34 to 52 MPH/.55 to 83 KPH) |
| Temperature Accuracy | ±0.5°C (±1.8°F) |
| Water Temperature | -10° to 40°C (14° to 104°F) |
What’s in the Box:
- ST900 with 13.7m Cable
- Bronze Housing and nut
