Description

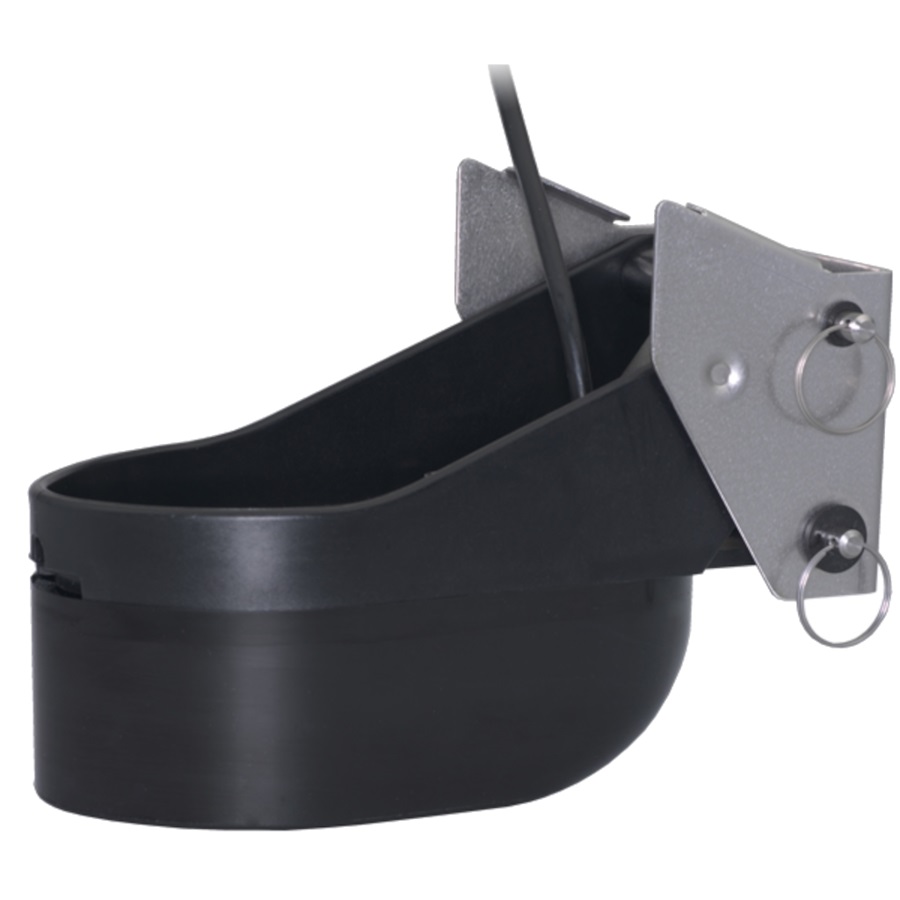

Raymarine TM185MW 1Kw Depth and Temperature CHIRP Transom Mount

Model: A80803

• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300 feet)
• Medium frequency: 60-100 kHz – 57 deg to 73 deg beamwidth (port/starboard) – 16 deg average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Simple installation on transom of the boat
• Great performance at boat speeds below 30 knots
• Easy maintenance and low-cost replacement
• Exclusive Xducer ID(R) technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer. The TM185MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73 deg port-starboard to 16 deg average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column. Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60?100 kHz.

The TM185MW Transom Mount is a 1 kW transducer housed in one of AIRMAR’s most popular housings. Transom models are best suited for small and trailered vessels where a thruhull installation is not practical. Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading.

Specifications
