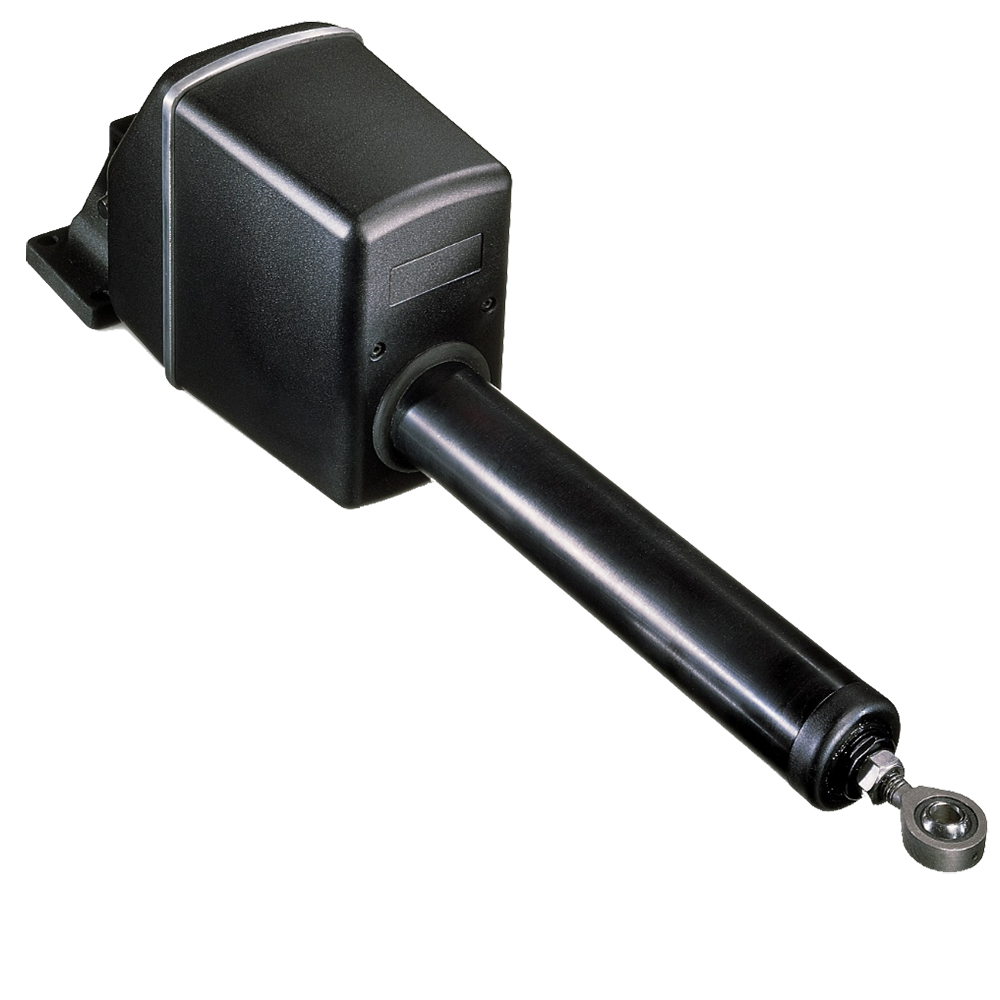

Raymarine Type 2 Long Linear Drive Unit – 24V

64080
Raymarine

$2574.99 $2381.86

0 in stock
Qty :
,

Description

M81134 Type 2 Long Mechanical Linear Drive – 24V

Raymarine’s most commonly used drive types for sailing vessels. Raymarine mechanical linear drives provide powerful thrust, fast hard-over times and quiet operation. Mounted below decks, the linear drive moves the rudder directly by pushing the tiller arm or a rudder quadrant.

A linear drive unit connects to the rudder stock via an independent tiller arm. Accessory fittings from your steering manufacturer may be required. Must be able to back-drive steering system from the rudder.

Features

  • Drive Type: Type 2 Long
  • Maximum boat displacement: 20,000kg (44,000 lb)
  • Peak thrust: 480 kg (1050 lb)
  • Maximum stroke: 400 mm (16″)
  • Hard-over to hard-over times: 14 seconds
  • Maximum rudder torque: 1,660 nm (14,700 lb.in)
  • Power consumption: 48-72W
  • Corepack used: ACU-400

Steering Type = NONE | Type = Pumps/Drives

Additional information

Weight 18 lbs
Dimensions 31 × 11 × 5 in
Model Number M81134
UPC 023193811345
