Description

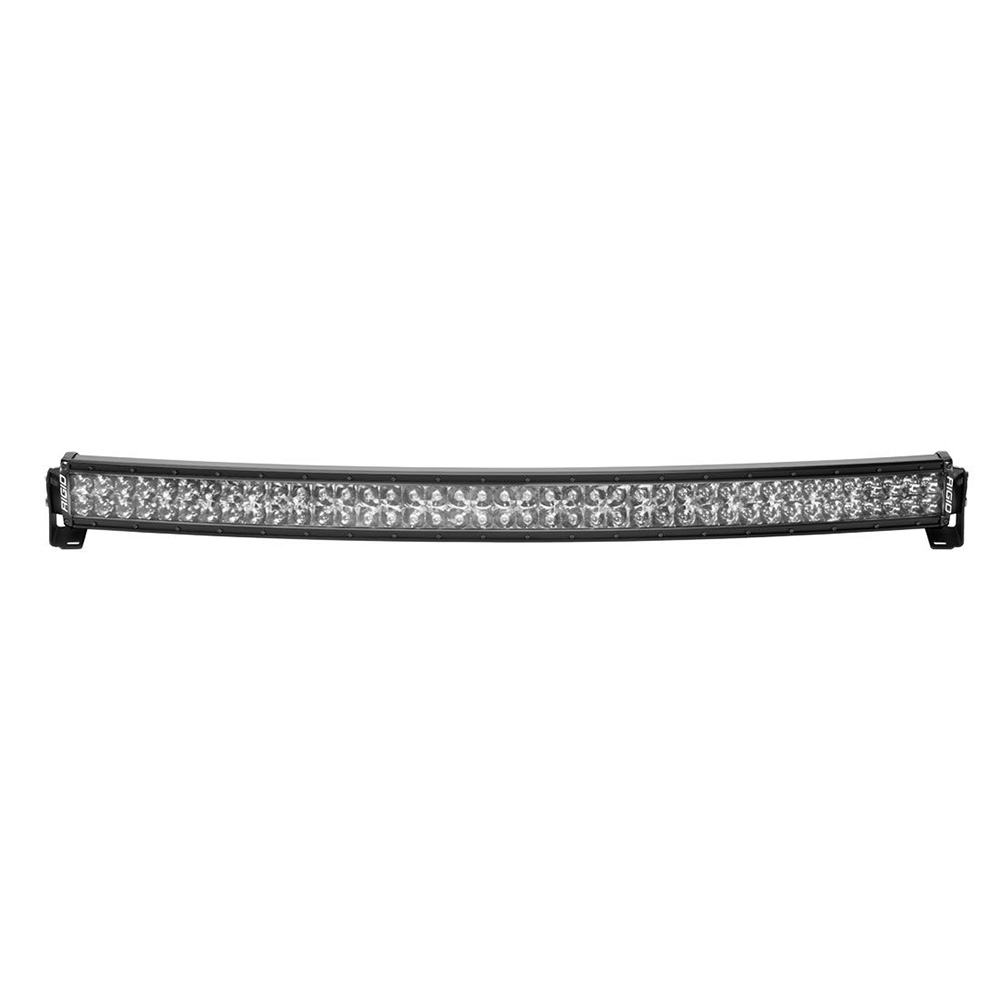

RDS-Series PRO 40" Spot – Midnight

RIGID revolutionized the lighting industry with the introduction of the RDS-Series, and recent advancements in LED technology have made them more powerful than ever before with the RDS-Series PRO, Professional Race Output. With an improved output of up to 70% more raw lumens, the RDS-Series PRO projects more usable light exactly where it’s needed on the road ahead. By taking an E-Series light bar and treating it to a gentle arc, the patented RDS-Series PRO provides a sleek, integrated look with curved windshields and bumpers on today’s trucks and SUVs. The curve is for more than just looks, it is also functional: the arc of the RDS-Series PRO light bars provides a wider spread of LED light, providing unmatched lighting coverage with a single light bar. RDS-Series PRO also includes updated branding and blacked-out circuit boards for a more refined look. It is also available in Midnight Edition, Radiance, and single-row SR-Series.

Features:

• 50,000 Plus Hour Lifespan
• 9-36 V DC
• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Integrated Thermal Management System
• Impact Resistant Polycorbonate Lens
• Over/Under Voltage Protection
• RFI/EMI Protection
• Reverse Polarity Protection
• RoHS Compliant
• IP68 Compliant – Dust/Water Ingress
• Operating Temp -40 degrees F To +145 degrees F
• SAE J575 Compliant – Shock/Vibration
• Available In White And Black Housing
• Pressure Equalizing Vent
• Waterproof Connector (Exclusions Apply)
• Limited Lifetime Warranty
• Off-Road Use Only

Comes With:

• 2 Black Powder Coated, L-shape brackets
• Open Leads, No Connector
• Harness with Switch

Specifications:

• Size: 40"
• Weight: 12.40lbs
• Optics: Spot
• Watts: 314W
• Amp. Draw: 22.44
• Raw Lumens: 63360
• Lux @10M: 2672.4
• Beam Distance @1Lux: 517
• Beam Distance @.25Lux: 1033.9
• Horizontal Beam Angle: 39

Beam Pattern = Spot | Housing = Black | Length (Inches) = 40" | Voltage - Input Range (Volts) = 12/24v
